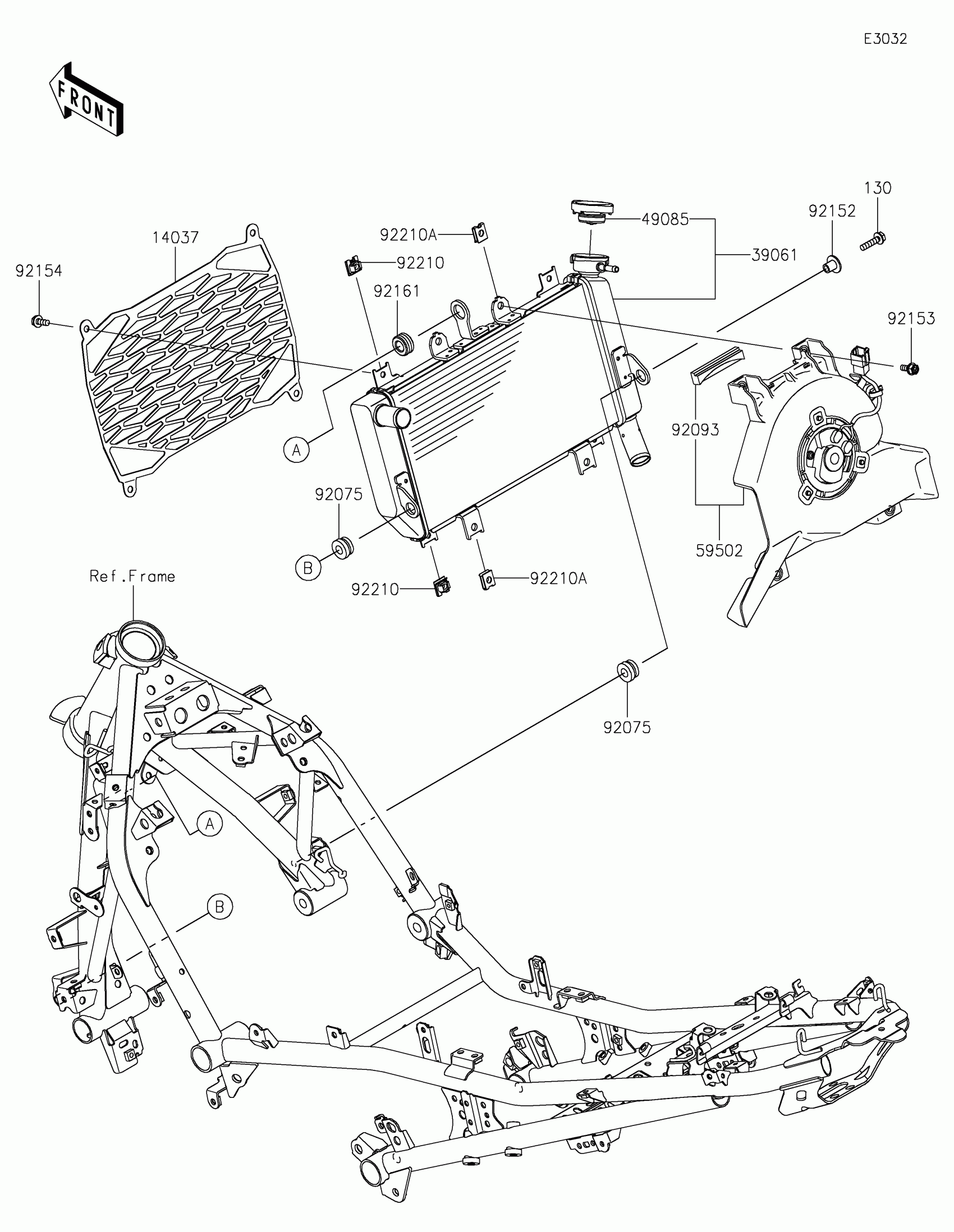

Find the part on the Radiator diagram for your 2025 Kawasaki Z500 Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Z500 Se Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14037

SCREEN,RADIATOR

14037-0792

1

$91.16

In stock

39061

RADIATOR-ASSY

39061-0916

1

$790.12

In stock

49085

CAP-ASSY-PRESSURE

49085-0006

1

$45.73

In stock

59502

FAN-ASSY

59502-0646

1

$677.68

In stock

92075

DAMPER,RUBBER

92075-1123

1

$3.97

In stock

92093

SEAL

92093-0713

1

$10.51

In stock

92152

COLLAR

92152-2852

1
Out of stock

92153

BOLT

92153-0531

1
Out of stock

92154

BOLT,UPSET-WP,6X16

92154-0961

1

$1.10

In stock

92161

DAMPER

92161-2080

1

$4.17

In stock

92210

NUT,CLIP,6MM

92210-0867

1
Out of stock

92210A

NUT

92210-1323

1
Out of stock

130

BOLT-FLANGED,6X25

130CB0625

1

$3.69

In stock
