2025 Kawasaki Z500 Se Fuel Evaporative System Diagram

← All diagrams

Find the part on the Fuel Evaporative System diagram for your 2025 Kawasaki Z500 Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

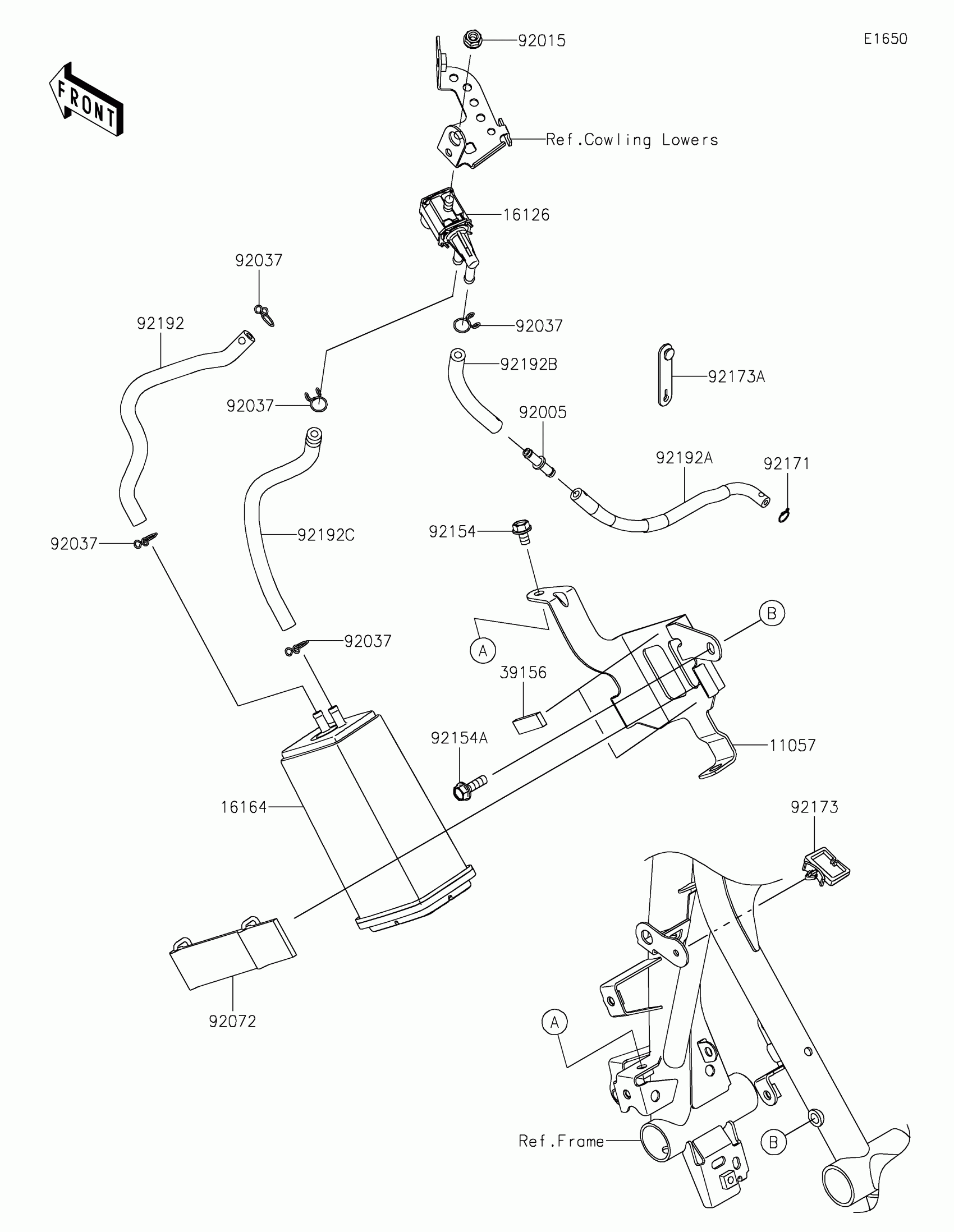

2025 Kawasaki Z500 Se Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,CANISTER

11057-2143

1
Out of stock

16126

VALVE,SOLENOID

16126-0705

1
Out of stock

16164

CANISTER

16164-0012

1
Out of stock

39156

PAD,10X30X4

39156-0927

1
Out of stock

92005

FITTING

92005-0721

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92037

CLAMP,TUBE

92037-147

1
Out of stock

92072

BAND,CANISTER

92072-0815

1
Out of stock

92154

BOLT,FLANGED,6X10

92154-2939

1
Out of stock

92154A

BOLT-FLANGED,6X20

92154-3812

1
Out of stock

92171

CLAMP

92171-0573

1
Out of stock

92173

CLAMP,CABLE CLIP

92173-1242

1
Out of stock

92173A

CLAMP

92173-2198

1
Out of stock

92192

TUBE,FUEL TANK-CANISTER

92192-1806

1
Out of stock

92192A

TUBE,FITTING-THROTTLE BODY

92192-1920

1
Out of stock

92192B

TUBE,5X10.4X92

92192-1923

1
Out of stock

92192C

TUBE,5X10.4X220

92192-2537

1
Out of stock
