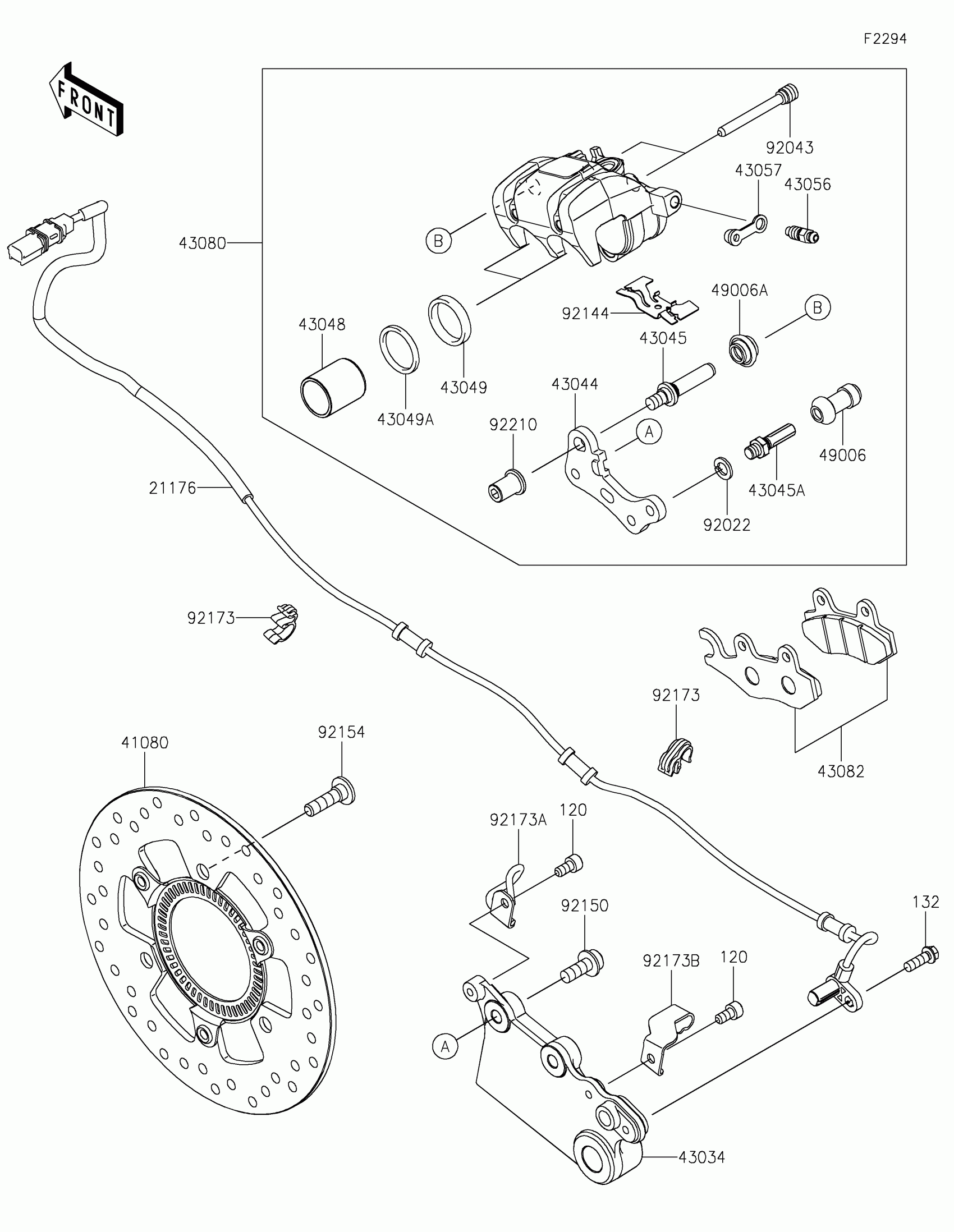

Find the part on the Rear Brake diagram for your 2025 Kawasaki Z500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Z500 Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21176

SENSOR,SPEED,RR

21176-1142

1

$142.67

In stock

41080

DISC,RR,W/R,BLACK

41080-0765-11H

1

$268.48

In stock

43034

HOLDER-BRAKE

43034-0179

1

$87.47

In stock

43044

HOLDER-COMP-CALIPER

43044-1112

1

$120.68

In stock

43045

SHAFT-CALIPER

43045-0013

1

$19.49

In stock

43045A

SHAFT-CALIPER

43045-1010

1

$19.49

In stock

43048

PISTON-CALIPER

43048-1068

1

$83.43

In stock

43049

PACKING,PISTON SEAL

43049-1060

1

$15.29

In stock

43049A

PACKING,PISTON SEAL

43049-1061

1

$8.38

In stock

43056

BREATHER-BRAKE

43056-0004

1

$12.83

In stock

43057

CAP-BREATHER

43057-1001

1

$3.89

In stock

43080

1

$409.71

In stock

43082

PAD-ASSY-BRAKE

43082-0128

1

$42.68

In stock

49006

BOOT,CALIPER

49006-1088

1

$9.20

In stock

49006A

BOOT,CALIPER

49006-1242

1

$4.34

In stock

92022

WASHER,WAVE

92022-1373

1

$3.53

In stock

92043

PIN,HANGER

92043-1507

1

$10.88

In stock

92144

SPRING,PAD

92144-1847

1

$30.92

In stock

92150

BOLT,SOCKET,8X20

92150-1155

1

$4.85

In stock

92154

BOLT,SOCKET,8X30

92154-1865

1

$3.72

In stock

92173

1

$1.27

In stock

92173A

CLAMP

92173-2481

1

$4.68

In stock

92173B

CLAMP

92173-2483

1

$3.12

In stock

92210

NUT

92210-0615

1
Out of stock

120

BOLT-SOCKET,6X12

120CA0612

1

$1.47

In stock

132

1

$1.75

In stock
