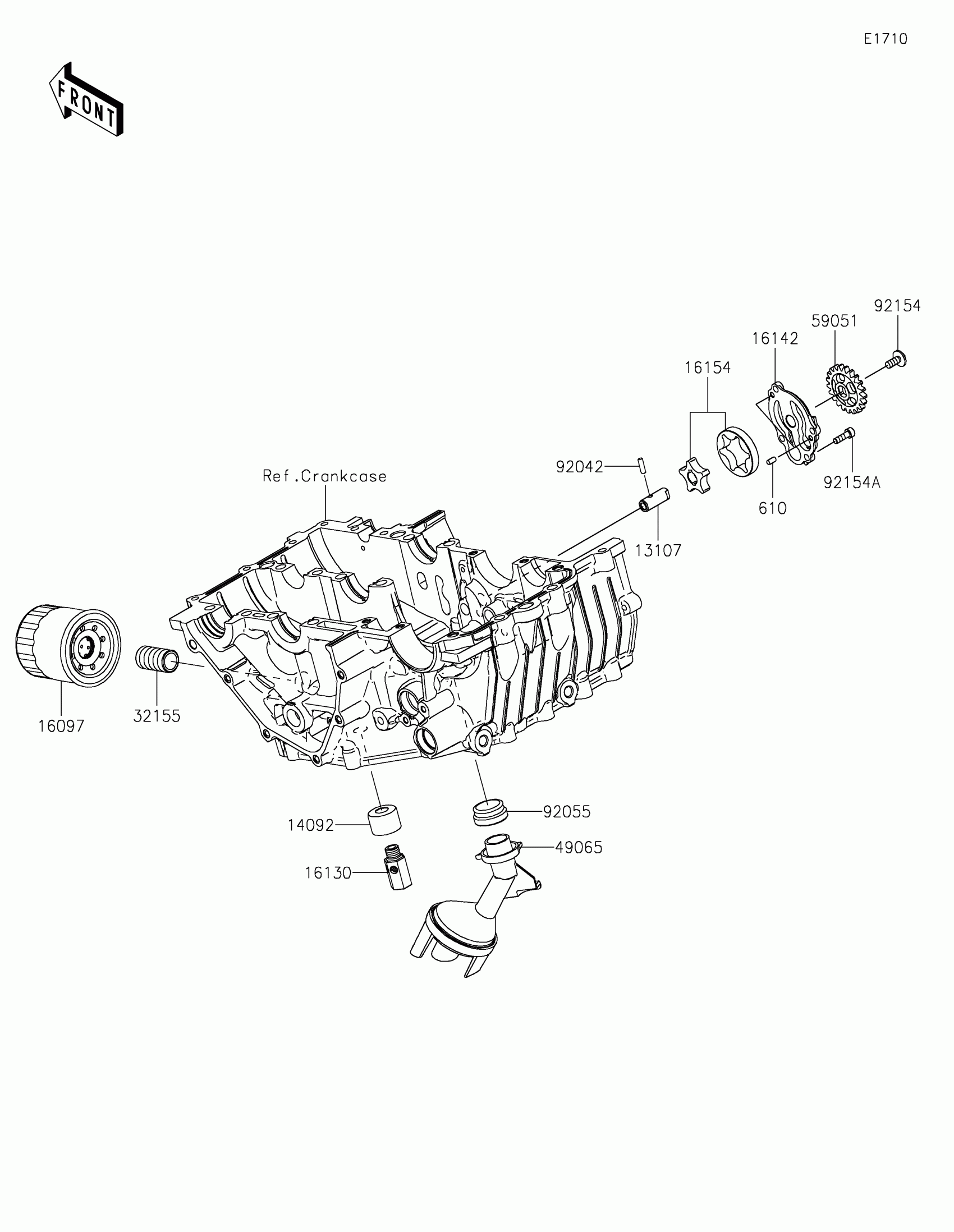

Find the part on the Oil Pump/oil Filter diagram for your 2025 Kawasaki Z500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Z500 Oil Pump/oil Filter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13107

SHAFT

13107-0905

1
Out of stock

14092

COVER,RELIEF VALVE

14092-1002

1
Out of stock

16097

FILTER-ASSY-OIL

16097-0552

1
Out of stock

16130

VALVE-ASSY-RELIEF

16130-0006

1
Out of stock

16142

COVER-PUMP

16142-0748

1
Out of stock

16154

ROTOR-PUMP

16154-0738

1
Out of stock

32155

PIPE,OIL FILTER

32155-0029

1
Out of stock

49065

FILTER-OIL

49065-0048

1
Out of stock

59051

GEAR-SPUR,OIL PUMP,21T

59051-0797

1
Out of stock

92042

PIN,DOWEL,4X13.8

92042-030

1
Out of stock

92055

RING-O,OIL FILTER

92055-1354

1
Out of stock

92154

BOLT,SOCKET,6X14

92154-2731

1
Out of stock

92154A

BOLT,SOCKET,5X16

92154-2792

1
Out of stock

610

ROLLER,4X8

610A0408

1
Out of stock
