2025 Kawasaki Z500 Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2025 Kawasaki Z500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

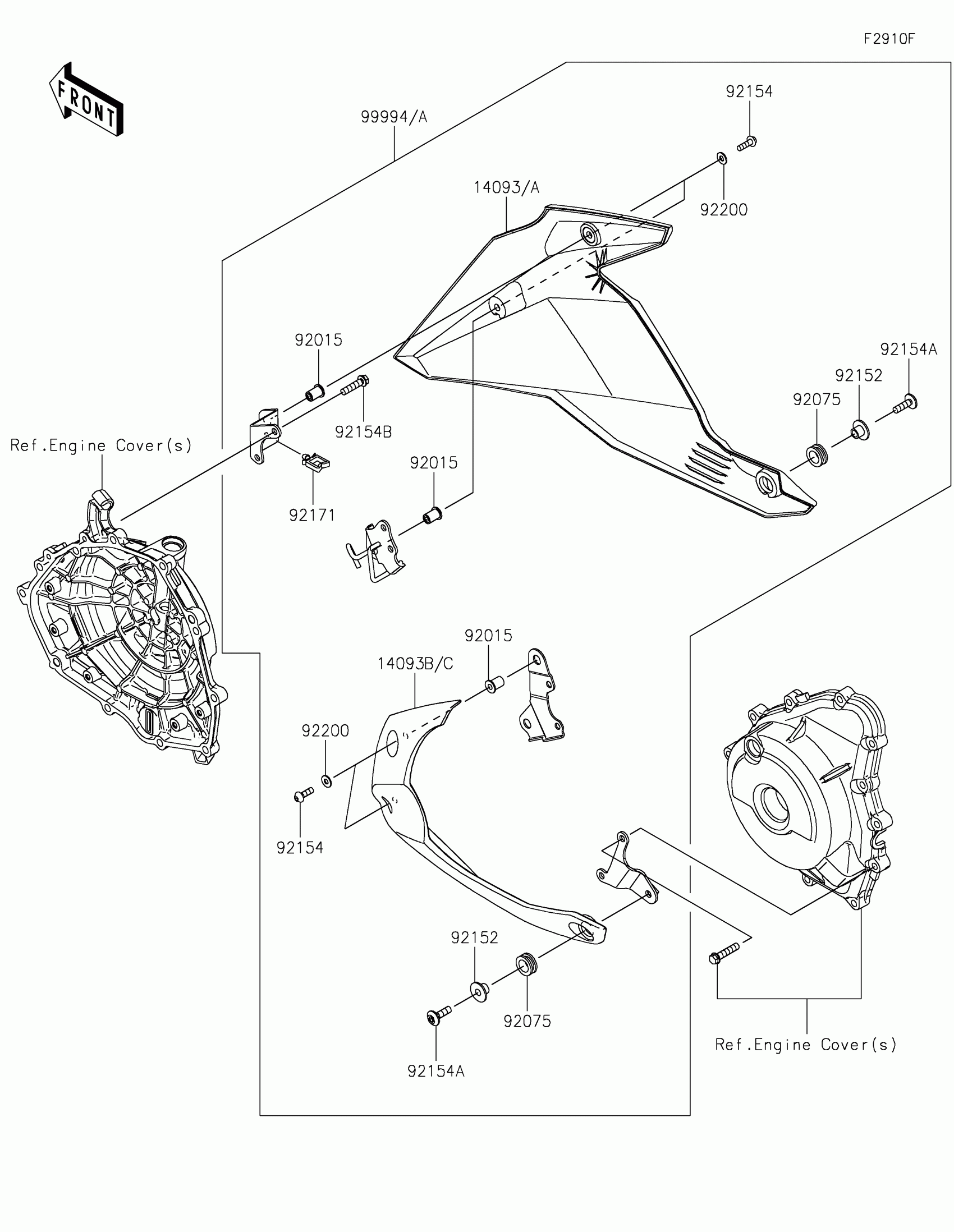

2025 Kawasaki Z500 Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14093

COVER,LWR,RH,M.S.BLACK

14093-0768-660

1
Out of stock

14093B

COVER,LWR,LH,M.S.BLACK

14093-0981-660

1
Out of stock

92015

NUT,WELL,5MM

92015-1757

1
Out of stock

92075

DAMPER

92075-1634

1
Out of stock

92152

COLLAR,6.8X20X9.6

92152-2908

1
Out of stock

92154

BOLT,SOCKET,5X16

92154-0209

1
Out of stock

92154A

BOLT,SOCKET,6X20

92154-0918

1
Out of stock

92154B

BOLT,FLANGED,6X25

92154-2734

1
Out of stock

92171

CLAMP

92171-0290

1

$3.29

In stock

92200

WASHER,5.2X12X1.0

92200-0784

1
Out of stock

99994

LOWER COWLING,M.S.BLACK

99994-1876-660

1
Out of stock
