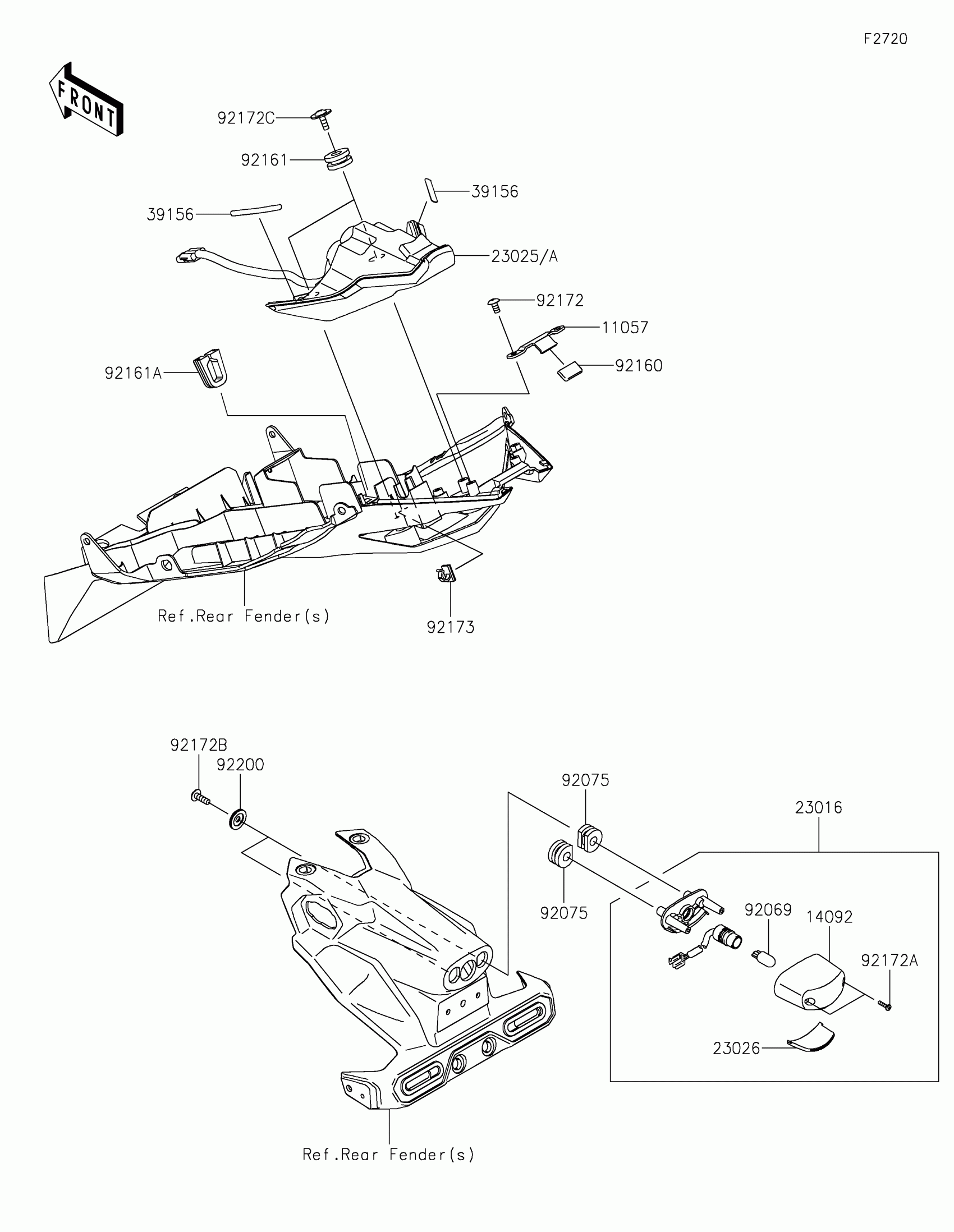

Kawasaki Z400 ABS Taillight(s) Diagram

Description

Price

11057

BRACKET

11057-1214

$3.29

14092

COVER,LICENSE LAMP

14092-0001

$20.17

23016

LAMP-ASSY,LICENCE

23016-0657

$73.13

23025A

LAMP-TAIL,LED

23025-0400

$207.91

23026

LENS,LICENCE LAMP

23026-0035

$29.34

39156

PAD,6X50

39156-2421

$1.17

92069

BULB,12V 5W

92069-1016

$4.88

92075

DAMPER

92075-1870

$4.42

92160

DAMPER

92160-1190

$3.12

92161

DAMPER

92161-0163

$4.39

92161A

DAMPER,RR FENDER

92161-1984

$0.88

92172

SCREW,TAPPING,5X10

92172-0262

$1.04

92172A

SCREW,TAPPING,2.9X13

92172-0343

$1.32

92172B

SCREW,TAPPING,5X16

92172-0427

$1.81

92172C

SCREW,5X16

92172-1215

$0.88

92173

CLAMP,CLIP

92173-1783

$2.02

92200

WASHER,5.5X20X2

92200-1971

$1.57
