2023 Kawasaki Z400 ABS Suspension/shock Absorber Diagram

← All diagrams

Find the part on the Suspension/shock Absorber diagram for your 2023 Kawasaki Z400 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

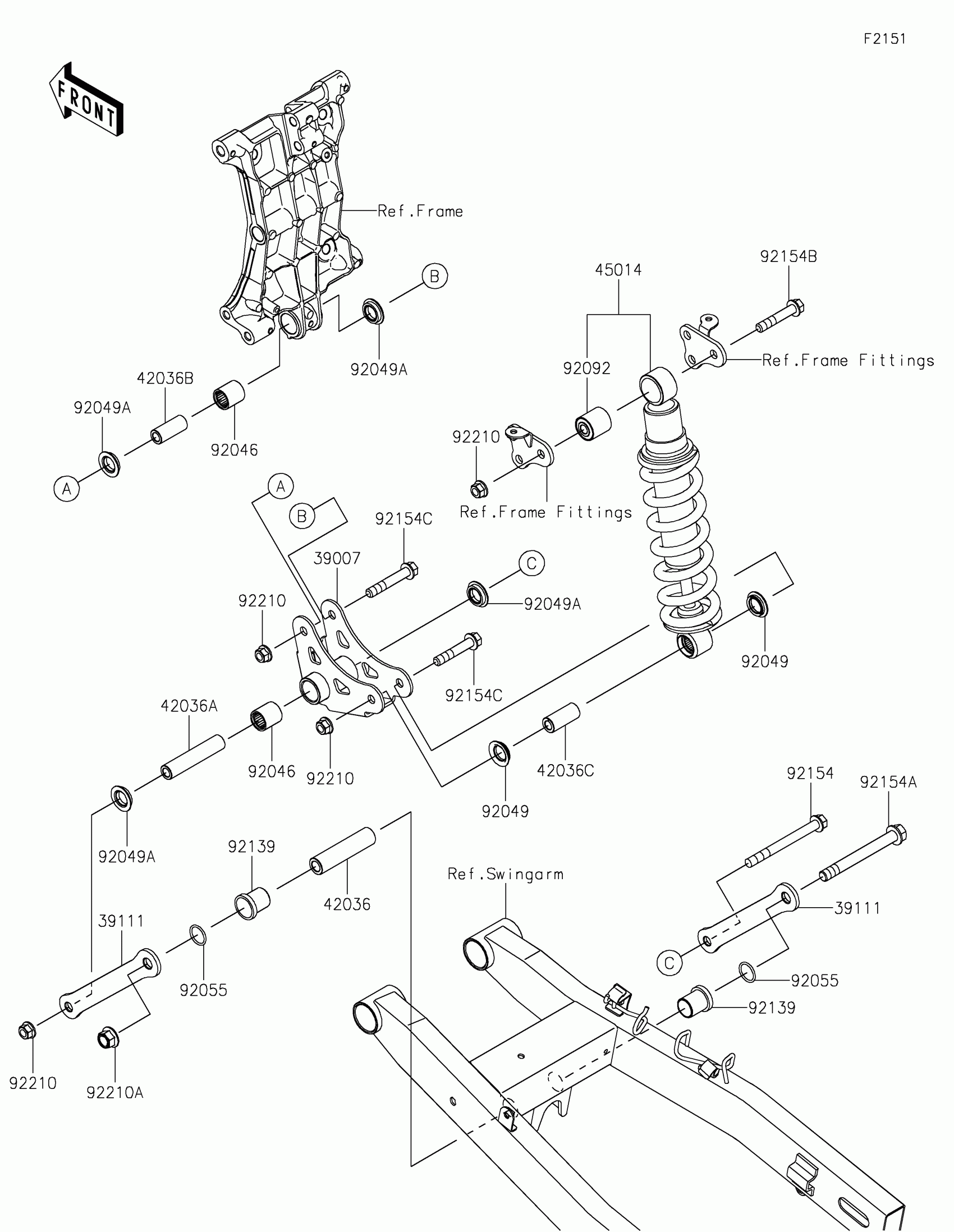

2023 Kawasaki Z400 ABS Suspension/shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39007

ARM-SUSP

39007-0438

1
Out of stock

39111

ROD-TIE,SUSPENSION

39111-0365

1
Out of stock

42036

SLEEVE,12.1X20X83

42036-0807

1
Out of stock

42036A

SLEEVE,10.1X17X83

42036-0808

1
Out of stock

42036B

SLEEVE,10.1X17X40.5

42036-0809

1
Out of stock

42036C

SLEEVE,10.1X18X40.5

42036-0810

1
Out of stock

45014

SHOCKABSORBER,BLACK+BLK

45014-0619-37S

1
Out of stock

92046

BEARING-NEEDLE,SFYZM172425

92046-1273

1
Out of stock

92049

SEAL-OIL

92049-0133

1
Out of stock

92049A

SEAL-OIL,MHA17245.7F

92049-1223

1
Out of stock

92055

RING-O,19.8X2.2

92055-1215

1
Out of stock

92092

BUSHING-RUBBER

92092-1058

1
Out of stock

92139

BUSHING,20X23X29

92139-0890

1
Out of stock

92154

BOLT,FLANGED,10X105

92154-2810

1
Out of stock

92154A

BOLT,FLANGED,12X110

92154-2811

1
Out of stock

92154B

BOLT,FLANGED,10X54

92154-2813

1
Out of stock

92154C

BOLT,FLANGED,10X60

92154-3771

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-1139

1
Out of stock

92210A

NUT,LOCK,FLANGED,12MM

92210-1150

1
Out of stock
