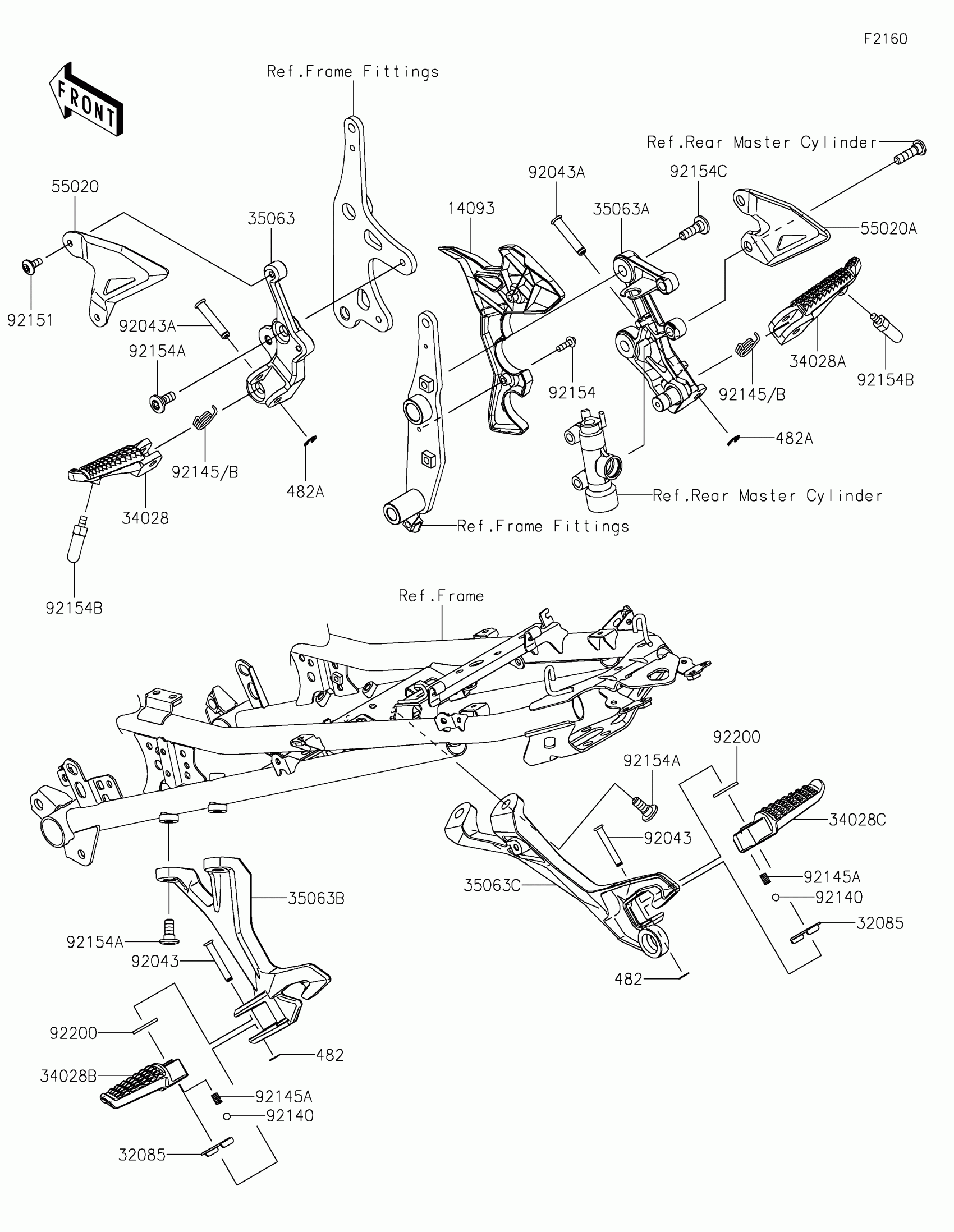

Kawasaki Z400 ABS Footrests Diagram

#

Description
Price

14093

COVER,PIVOT,RH

14093-0641

$29.86

32085

STOPPER,REAR STEP

32085-0047

$4.23

34028

STEP,FR,LH

34028-0356

$53.92

34028A

STEP,FR,RH

34028-0357

$53.92

34028B

STEP,RR,LH

34028-0366

$62.97

34028C

STEP,RR,RH

34028-0367

$71.74

35063

STAY,FR STEP,LH

35063-1407

$76.71

35063A

STAY,FR STEP,RH

35063-1408

$96.80

35063B

STAY,RR STEP,LH

35063-1409

$118.68

35063C

STAY,RR STEP,RH

35063-1410

$116.56

55020

GUARD,HEEL,LH

55020-2195

$44.98

55020A

GUARD,HEEL,RH

55020-2196

$44.98

92043

PIN,6X40

92043-0200

$2.11

92043A

PIN,8X40.5

92043-0877

$3.78

92140

BALL,6.35MM

92140-0008

Unavailable

92145A

SPRING

92145-1319

$1.33

92145B

SPRING

92145-2240

$1.04

92151

BOLT,SOCKET,6X14

92151-1654

$1.24

92154

BOLT,SOCKET,5X16

92154-0209

$1.95

92154A

BOLT,SOCKET,8X20

92154-0936

$3.13

92154B

BOLT,BANK SENSOR

92154-2799

$6.05

92154C

BOLT,SOCKET,8X26

92154-3747

$2.23

92200

WASHER,16X26X2.3

92200-0043

$5.84

482

CIRCLIP-TYPE-E

482EA5000

$1.04

482A

CIRCLIP-TYPE-E

482EA7000

$2.99
