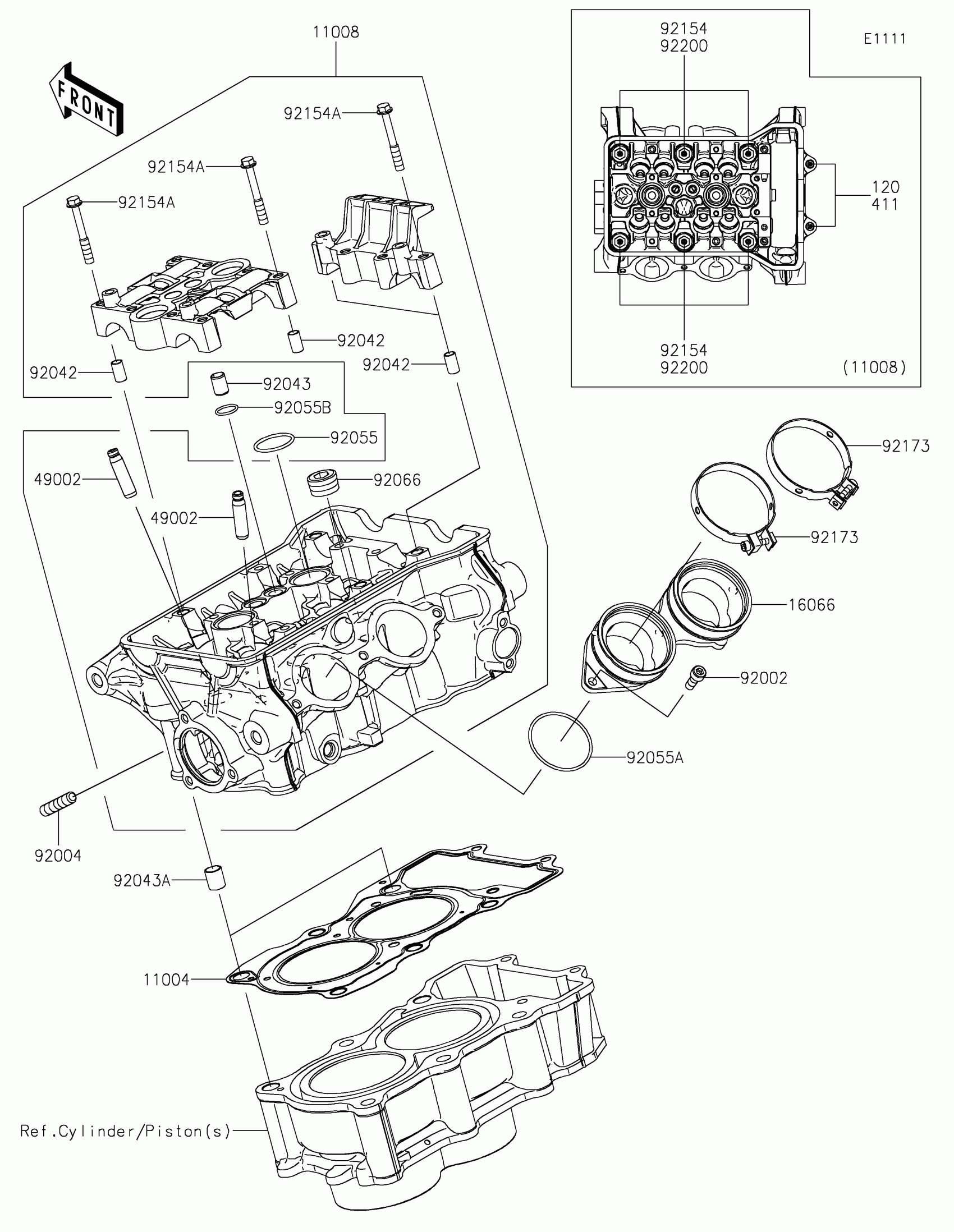

Kawasaki Z400 ABS Cylinder Head Diagram

Description

Price

11004

GASKET-HEAD

11004-0805

$60.59

11008

HEAD-COMP-CYLINDER

11008-0967

$1,450.50

16066

HOLDER-THROTTLE BODY

16066-0007

$73.44

49002

GUIDE-VALVE

49002-0009

$30.60

92002

BOLT,6X16

92002-1143

$2.99

92004

STUD,8X25

92004-0731

$3.15

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92043

PIN,8.2X10X14

92043-1264

$0.51

92043A

PIN,10.1X12X14

92043-4009

$4.67

92055

RING-O,25.5X2

92055-0074

$2.98

92055A

RING-O,44.5X1.9

92055-0890

$14.46

92055B

RING-O,13.5X1.5

92055-0944

$3.59

92066

PLUG,PT1/2X12.5

92066-0002

$6.85

92154

BOLT,FLANGED,9X138

92154-2732

$11.10

92154A

BOLT,FLANGED,6X45

92154-3737

$1.09

92173

CLAMP,58MM

92173-0927

$13.63

92200

WASHER,10.5X19X2.3

92200-0363

$2.98

120

BOLT-SOCKET,6X90

120CC0690

$2.64

411

WASHER-PLAIN,6MM

411AA0600

$2.06
