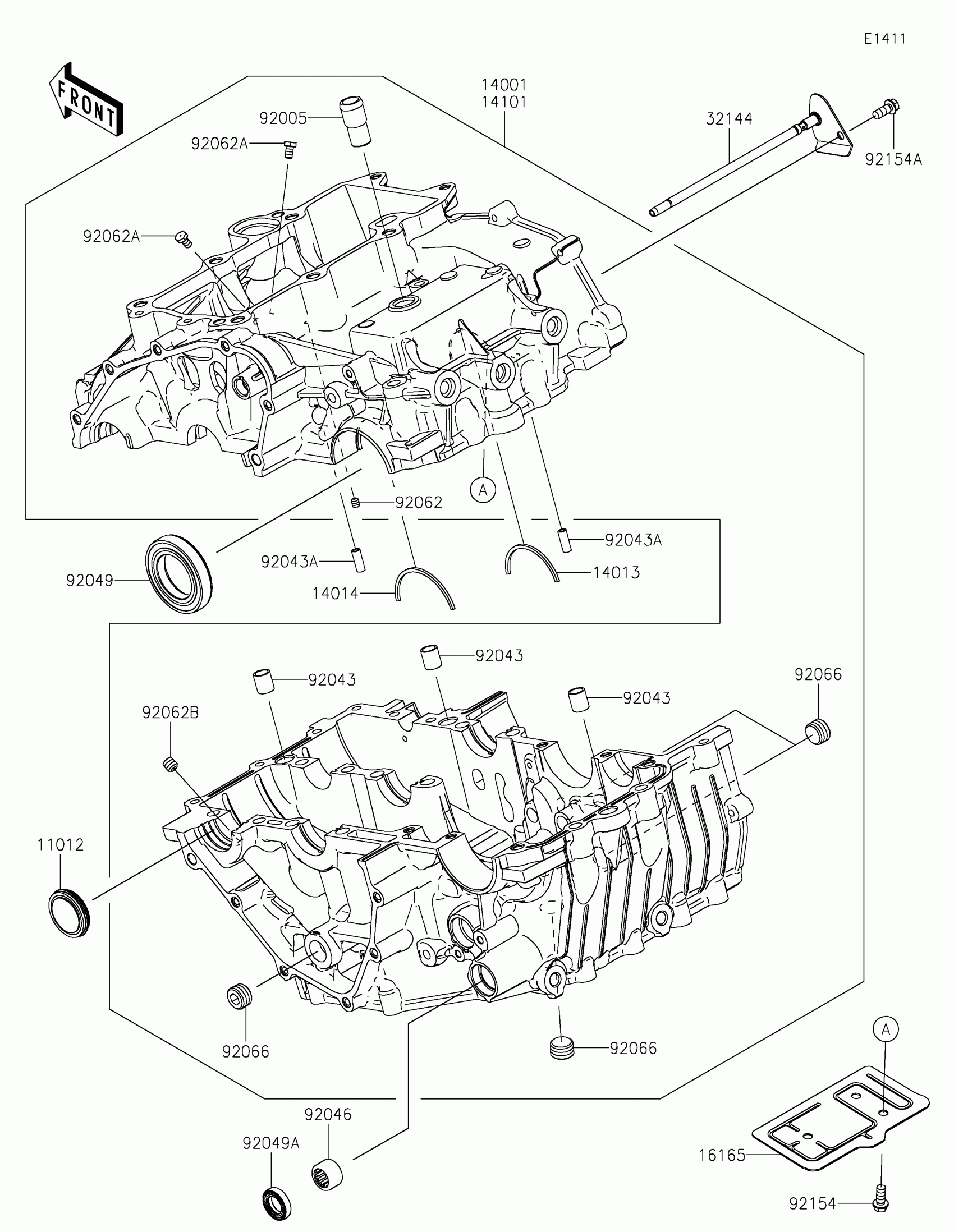

Kawasaki Z400 ABS Crankcase Diagram

Description

Price

11012

CAP,LH

11012-1770

$12.49

14001

SET-CRANKCASE

14001-0717

$1,097.09

14013

RING-POSITION

14013-004

$7.76

14014

PLATE-POSITION

14014-0576

$1.09

16165

SEPARATOR

16165-0016

$4.68

32144

PIPE-ASSY

32144-0008

$45.75

92005

FITTING,BREATHER

92005-0713

$11.68

92043

PIN,12X14

92043-0963

$4.93

92043A

PIN,3.5X6X16

92043-1309

$4.18

92046

BEARING-NEEDLE,HK1412FM

92046-0043

$12.99

92049

SEAL-OIL

92049-0799

$11.53

92049A

SEAL-OIL,TC14245

92049-1520

$10.54

92062

NOZZLE

92062-0004

$4.00

92062A

NOZZLE

92062-0047

$14.34

92062B

NOZZLE

92062-0048

$4.93

92066

PLUG,PT3/8X10

92066-0003

$2.66

92154

BOLT,FLANGED,6X14

92154-1426

$1.46

92154A

BOLT,FLANGED,6X14

92154-2907

$0.69
