2023 Kawasaki Z400 ABS Brake Pedal/torque Link Diagram

← All diagrams

Find the part on the Brake Pedal/torque Link diagram for your 2023 Kawasaki Z400 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

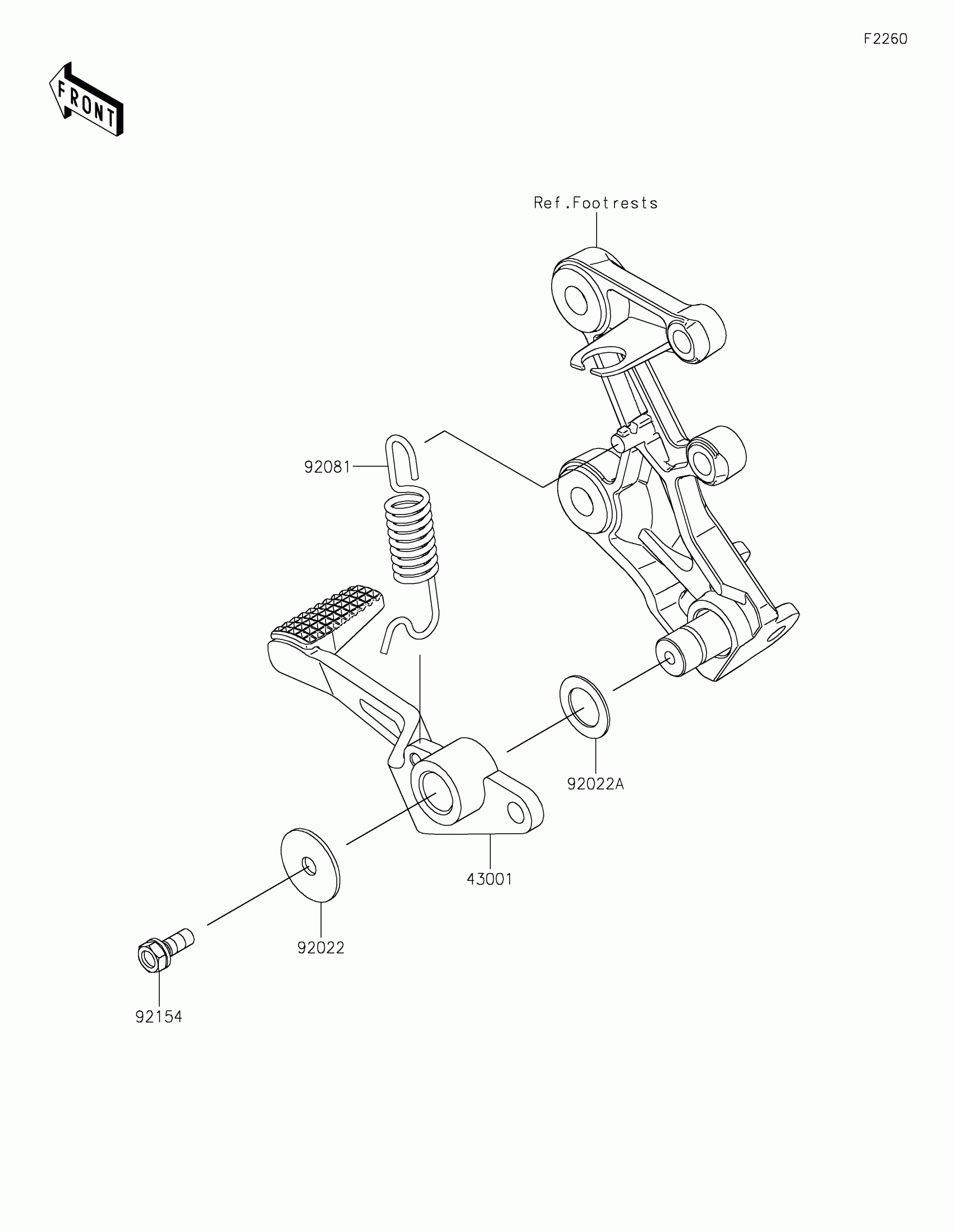

2023 Kawasaki Z400 ABS Brake Pedal/torque Link Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

43001

LEVER-BRAKE,RR

43001-0756

1

$76.58

In stock

92022

WASHER,7X28X1.6

92022-1282

1

$3.72

In stock

92022A

WASHER,15.3X24X1

92022-326

1
Out of stock

92081

SPRING,BRAKE PEDAL

92081-1833

1

$8.09

In stock

92154

BOLT,UPSET-WS,6X16

92154-0935

1

$1.10

In stock
