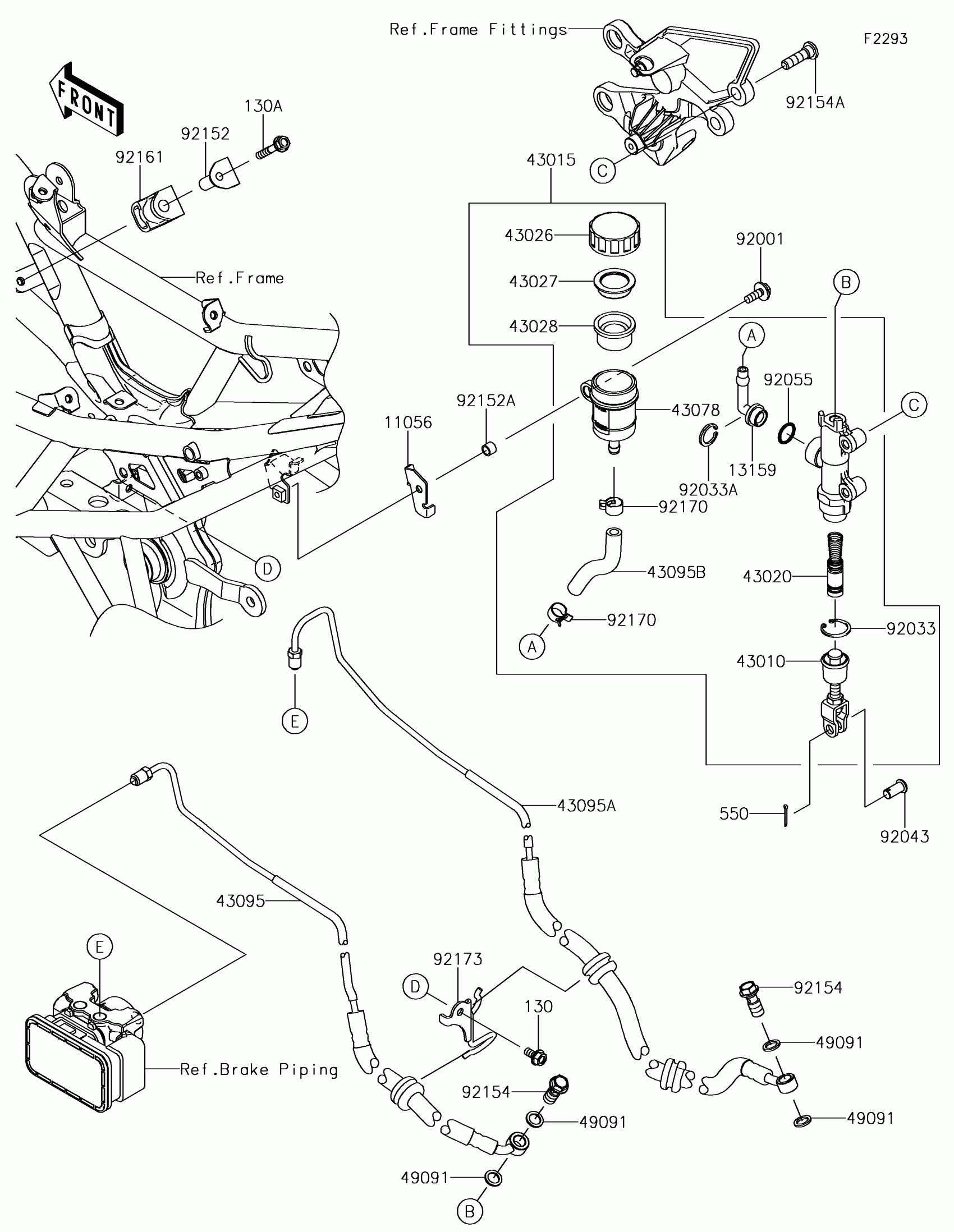

Kawasaki Z250SL Rear Master Cylinder(FEF/FFF) Diagram

#

Description
Price

11056

BRACKET

11056-4304

$3.31

130

BOLT-FLANGED,6X12

130BA0612

$1.46

130A

BOLT-FLANGED,6X35

130BA0635

$0.90

13159

CONNECTOR

13159-1056

$11.16

43010

ROD-ASSY-BRAKE

43010-0014

$88.12

43015

CYLINDER-ASSY-MASTER,RR

43015-0632

$270.29

43020

PISTON-COMP-BRAKE

43020-0027

Unavailable

43026

CAP-BRAKE

43026-0009

Unavailable

43027

PLATE-DIAPHRAGM

43027-1053

$4.97

43028

DIAPHRAGM

43028-1065

$17.85

43078

RESERVOIR

43078-0060

$33.06

43095

HOSE-BRAKE,RR M/CYLINDER

43095-0795

$88.23

43095A

HOSE-BRAKE,RR CALIPER

43095-0796

$100.71

43095B

HOSE-BRAKE,RR

43095-0801

$40.10

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.81

550

PIN-COTTER,2.0X15

550AA2015

$0.94

92001

BOLT,6X18

92001-1342

Unavailable

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$6.19

92033A

RING-SNAP,20.5MM

92033-1186

$3.94

92043

PIN,8X17

92043-0104

$3.11

92055

RING-O,14.8X2.4

92055-0741

$2.95

92152

COLLAR

92152-0409

$17.44

92152A

COLLAR,7.1X9.5X7

92152-0561

$2.71

92154

BOLT,FLANGED,10X23

92154-0732

$4.01

92154A

BOLT,SOCKET,8X30

92154-0843

$3.74

92161

DAMPER,BRAKE PIPE

92161-0347

$4.75

92170

CLAMP,HOSE

92170-1091

$3.97

92173

CLAMP

92173-1121

$8.31
