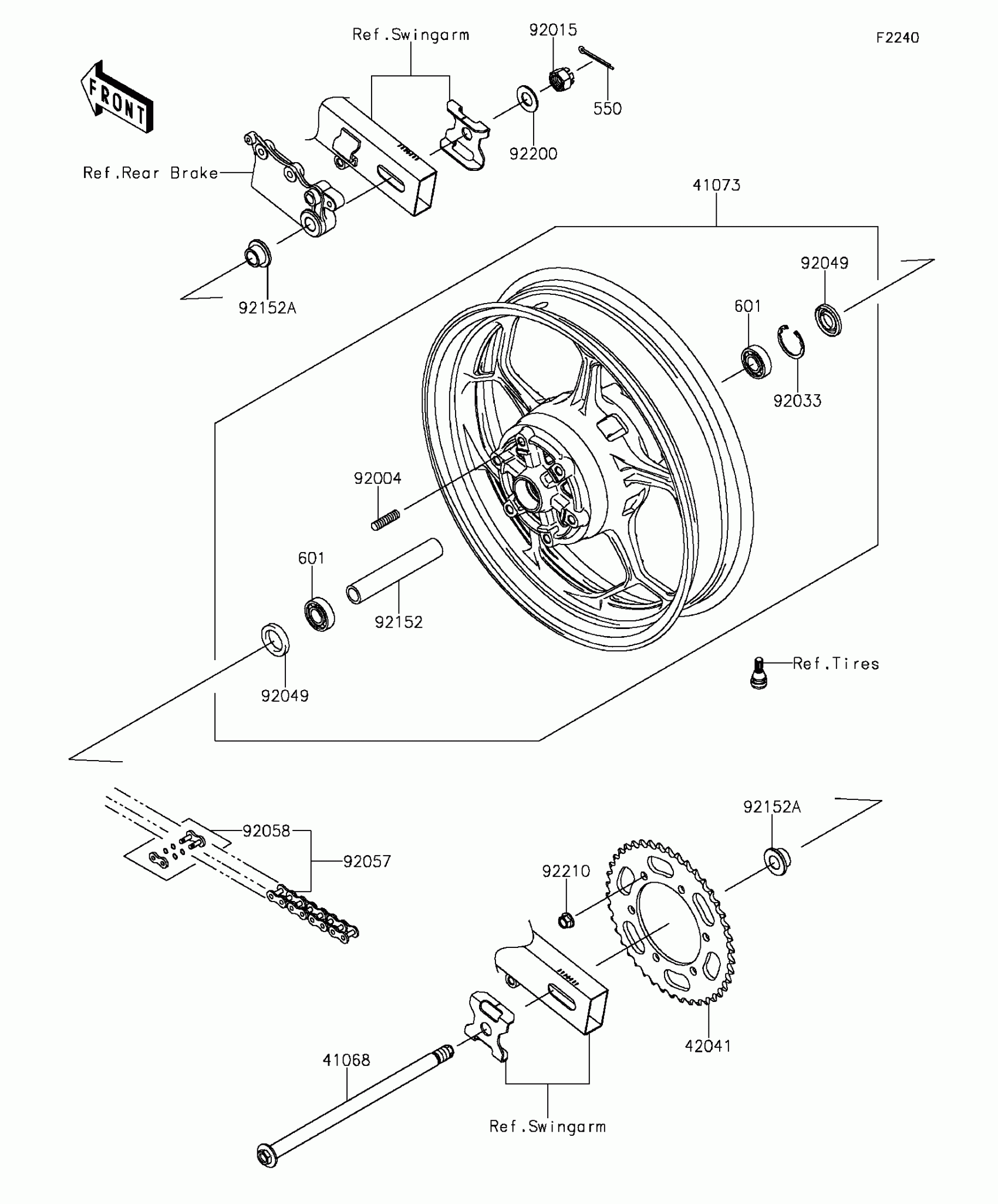

Kawasaki Z250SL Rear Hub Diagram

Description

Price

41068

AXLE,RR

41068-1223

$67.07

41073

WHEEL-ASSY,RR,G.BLACK

41073-0611-QT

$766.02

42041

SPROCKET-HUB,42T

42041-0129

$89.03

92004

STUD,10X19

92004-0048

$6.48

92015

NUT,CASTLE,16MM

92015-1947

$7.54

92033

RING-SNAP,40MM

92033-1040

$4.45

92049

SEAL-OIL

92049-0746

$13.10

92057

CHAIN,DRIVE,EK520MVXLX104L

92057-0213

$237.02

92058

JOINT-CHAIN,DRIVE

92058-0021

$13.00

92152

COLLAR,17.1X24X141

92152-1759

$21.80

92152A

COLLAR,17X24X16

92152-1760

$26.02

92200

WASHER,17.5X34X2

92200-1687

$2.25

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$1.85

550

PIN-COTTER,4.0X35

550AA4035

$1.57

601

BEARING-BALL,#6203UUC3

601B6203UU

$17.09
