2017 Kawasaki Z250SL (Indonesia Only) Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2017 Kawasaki Z250SL (Indonesia Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

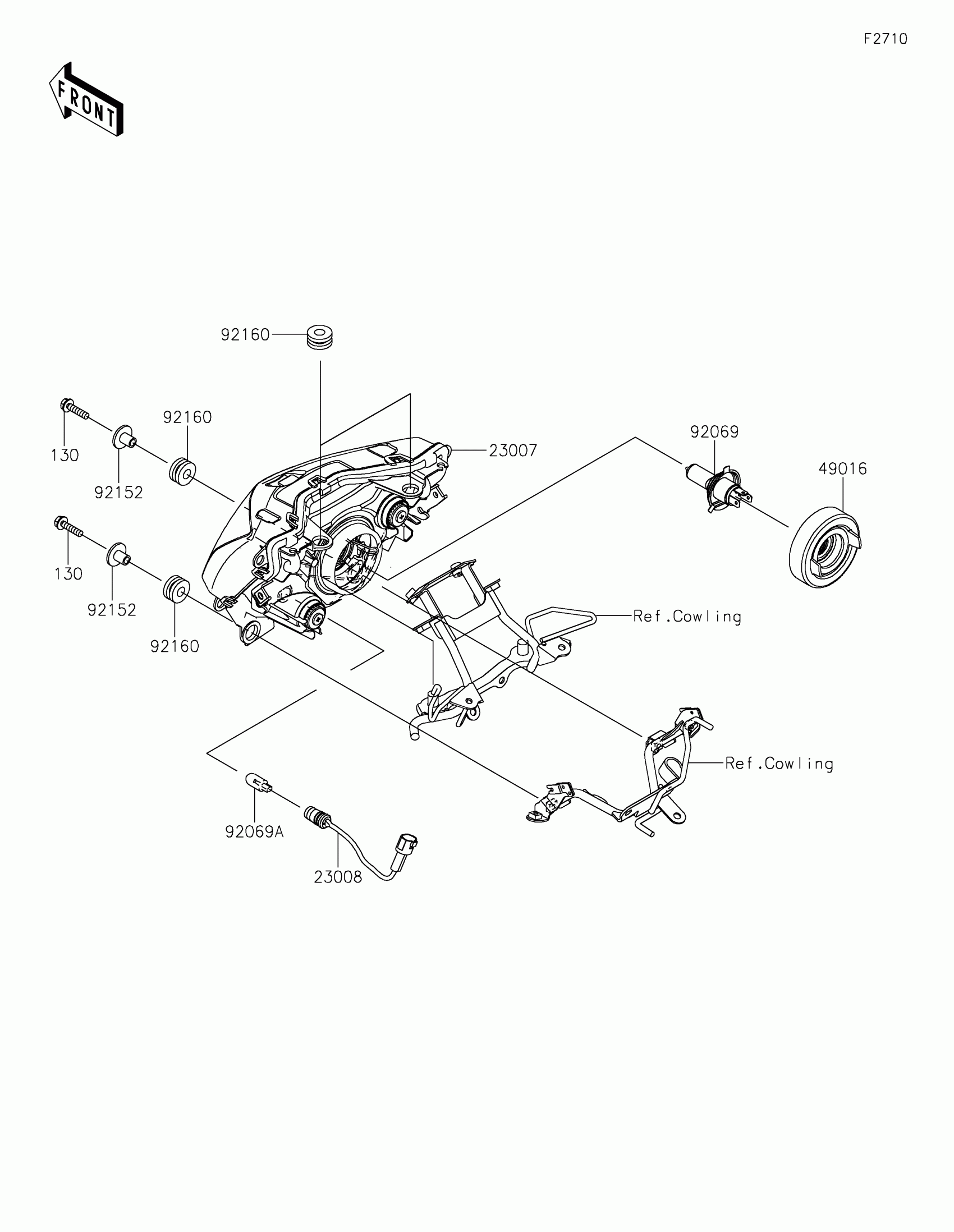

2017 Kawasaki Z250SL (Indonesia Only) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X25

130BB0625

1

$1.92

In stock

23007

LENS-COMP

23007-0186

1
Out of stock

23008

SOCKET-ASSY

23008-0154

1
Out of stock

49016

COVER-SEAL

49016-0628

1
Out of stock

92069

BULB,12V,H4

92069-0077

1
Out of stock

92069A

BULB,12V 5W

92069-0081

1
Out of stock

92152

COLLAR,6.8X10X15.3

92152-1985

1
Out of stock

92160

DAMPER

92160-1162

1
Out of stock
