2017 Kawasaki Z250SL (Indonesia Only) Fuel Pump Diagram

← All diagrams

Find the part on the Fuel Pump diagram for your 2017 Kawasaki Z250SL (Indonesia Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

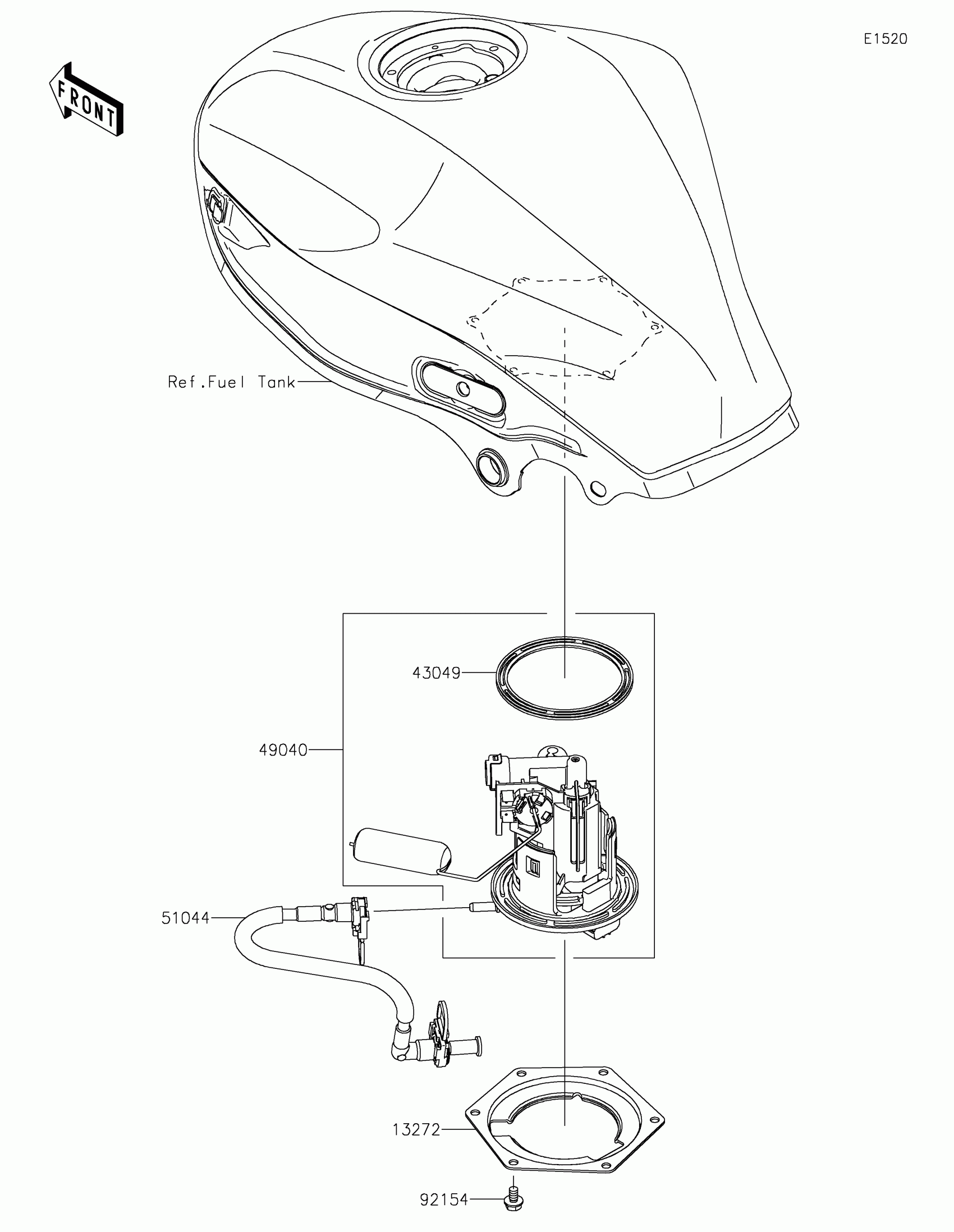

2017 Kawasaki Z250SL (Indonesia Only) Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13272

PLATE,FUEL PUMP

13272-1499

1

$15.92

In stock

43049

PACKING

43049-0032

1

$71.79

In stock

49040

PUMP-FUEL

49040-0776

1

$551.24

In stock

51044

TUBE-ASSY

51044-0806

1

$120.08

In stock

92154

BOLT,FLANGED,6X10

92154-1234

1

$1.92

In stock
