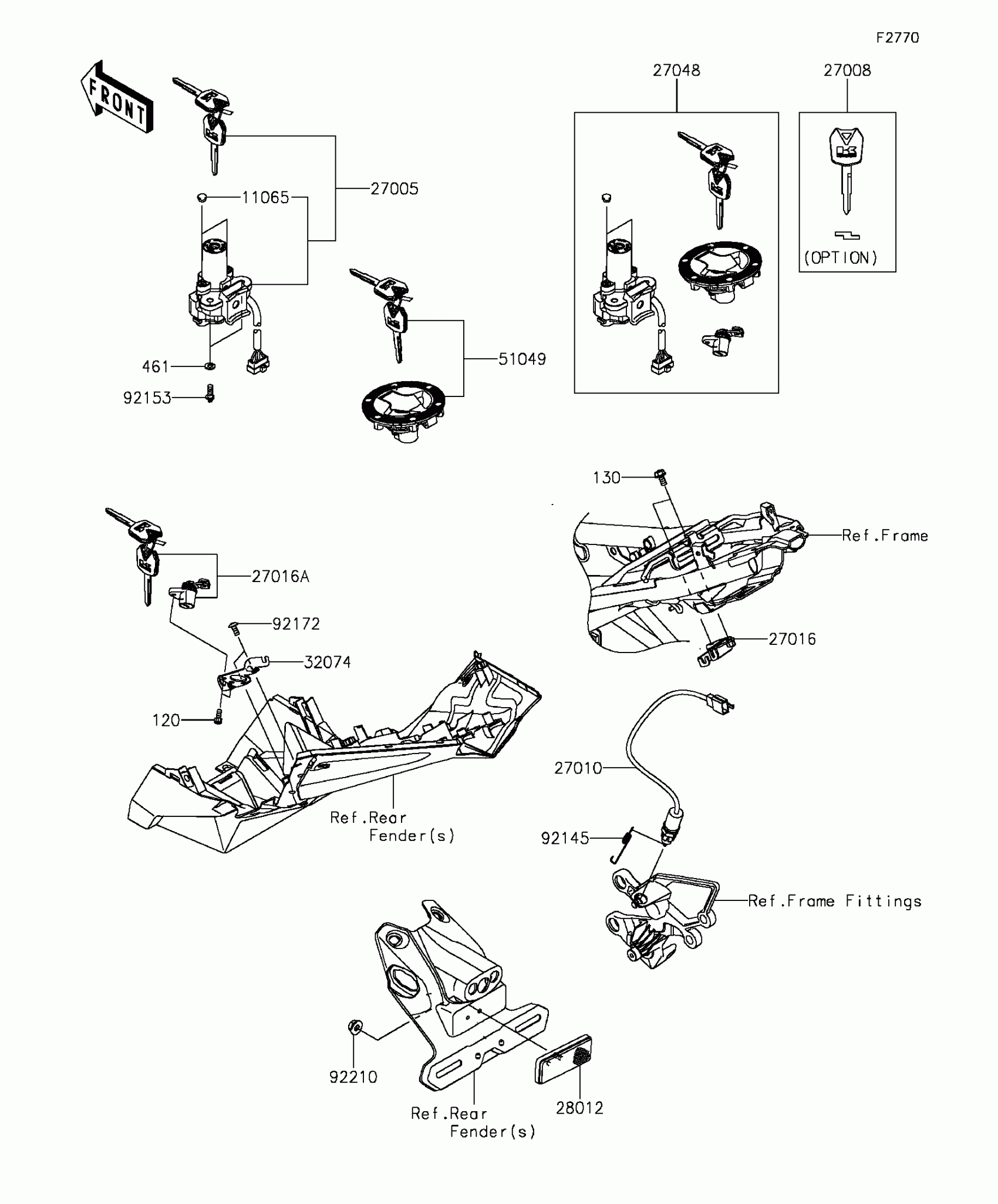

Kawasaki Z250SL Ignition Switch Diagram

Description

Price

11065

CAP,IGNITION SWITCH

11065-0708

$3.92

27005

SWITCH-ASSY-IGNITION

27005-5154

Unavailable

27008

KEY-LOCK,BLANK

27008-0053

$17.17

27010

SWITCH,RR BRAKE

27010-0758

$47.70

27016

LOCK-ASSY,SEAT STRIKER

27016-0008

$14.14

27016A

LOCK-ASSY,SEAT

27016-5353

$105.87

27048

SWITCH-ASSY

27048-5031

Unavailable

28012

REFLECTOR-REFLEX

28012-1077

$21.76

32074

BRACKET-LOCK

32074-0019

$2.25

51049

CAP-TANK,FUEL

51049-5007

Unavailable

92145

SPRING

92145-0989

$2.42

92153

BOLT,TORX,6X16

92153-0967

$1.85

92172

SCREW,5X12

92172-0857

$0.69

92210

NUT,FLANGED,5MM

92210-0007

$1.90

120

BOLT-SOCKET,5X12

120CA0512

$1.19

130

BOLT-FLANGED,6X12

130BA0612

$1.25

461

WASHER-SPRING,6MM

461DA0600

$0.66
