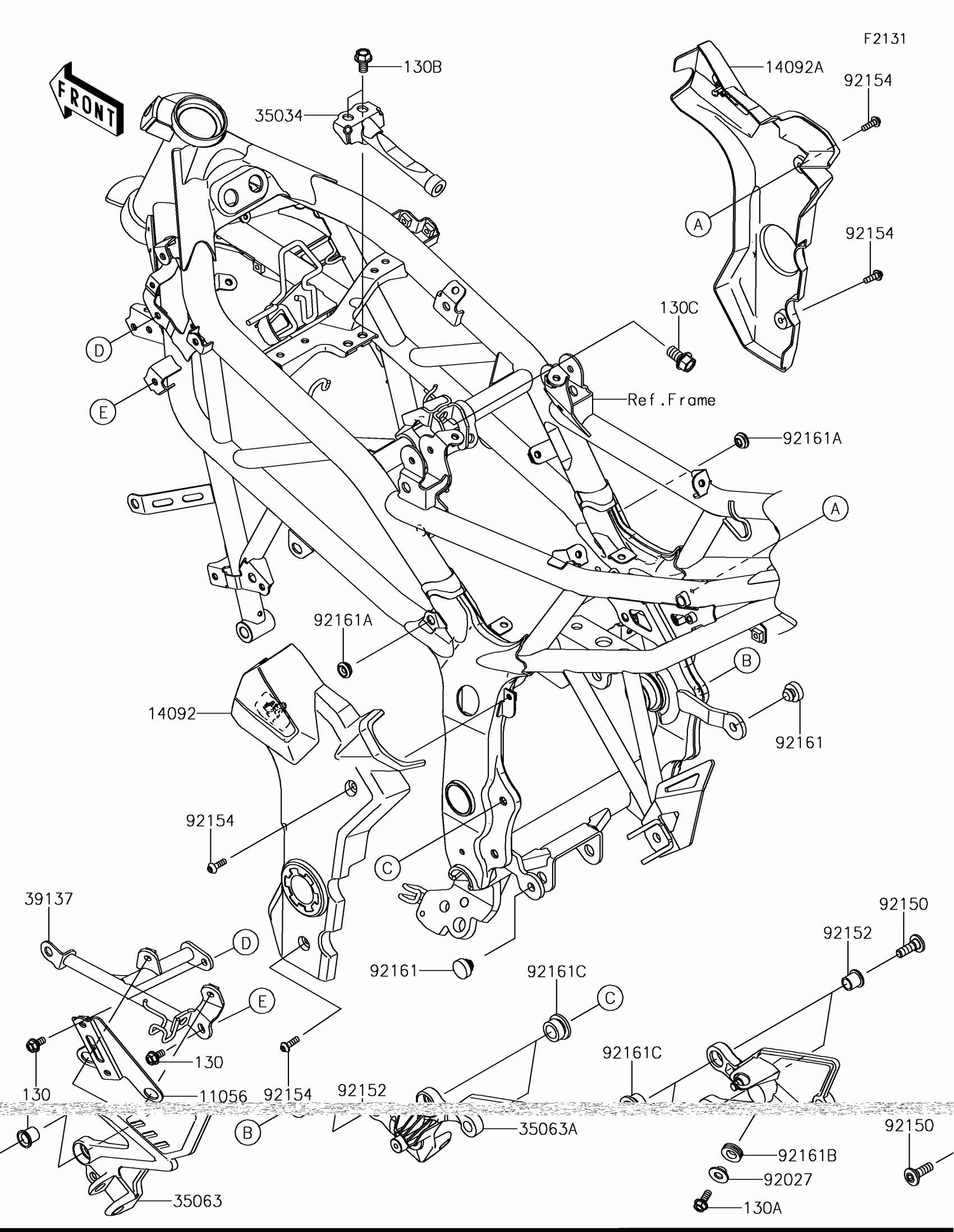

Kawasaki Z250SL Frame Fittings(FEF/FFF) Diagram

Description

Price

11056

BRACKET,REGULATOR

11056-2735

$7.95

130

BOLT-FLANGED,6X12

130BA0612

$1.46

130A

BOLT-FLANGED,6X16

130BA0616

$1.12

130B

BOLT-FLANGED,8X14

130BA0814

$1.78

130C

BOLT-FLANGED,10X18

130BA1018

$2.05

14092

COVER,PIVOT,LH

14092-1113

$15.31

14092A

COVER,PIVOT,RH

14092-1114

$15.31

35034

REINFORCE

35034-0591

$16.42

35063

STAY,STEP,LH

35063-0923

$113.15

35063A

STAY,STEP,RH

35063-0924

$113.15

39137

STAY-COMP

39137-0587

$49.75

92027

COLLAR

92027-153

$4.93

92150

BOLT,8X25

92150-1845

$6.11

92152

COLLAR,10.6X13.8X14.5

92152-1771

$7.92

92154

BOLT,SOCKET,5X16

92154-0209

$2.25

92161

DAMPER

92161-0046

$9.14

92161A

DAMPER

92161-0631

$5.87

92161B

DAMPER,10X20X6

92161-1592

$7.24

92161C

DAMPER,14X26X17.5

92161-1651

$1.10
