2014 Kawasaki Z250SL Cylinder/piston Diagram

← All diagrams

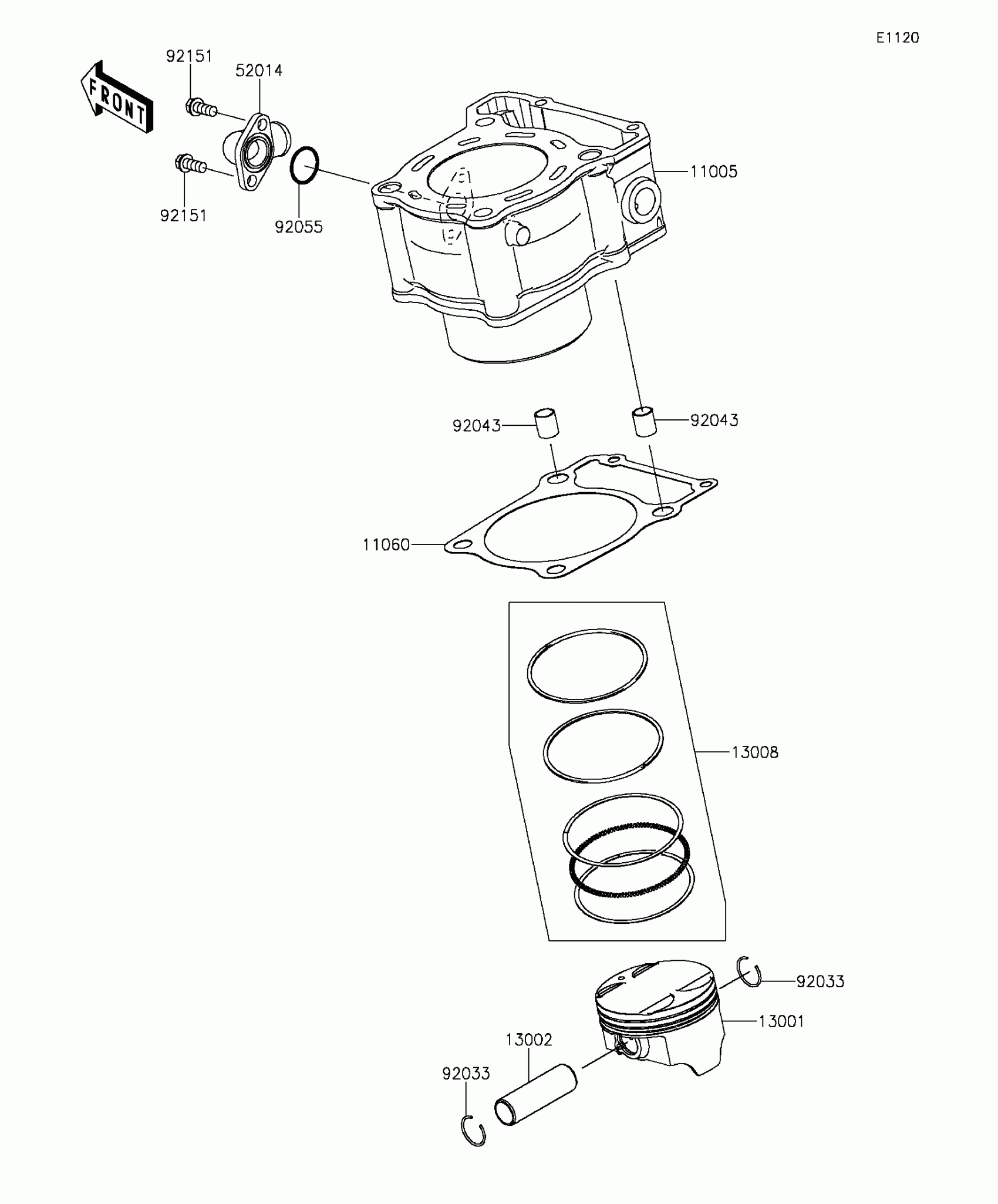

Find the part on the Cylinder/piston diagram for your 2014 Kawasaki Z250SL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Kawasaki Z250SL Cylinder/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11005

CYLINDER-ENGINE

11005-0656

1
Out of stock

11060

GASKET,CYLINDER BASE

11060-1740

1
Out of stock

13001

PISTON-ENGINE

13001-0753

1
Out of stock

13002

PIN-PISTON

13002-1073

1
Out of stock

13008

RING-SET-PISTON

13008-0050

1
Out of stock

52014

ELBOW

52014-0010

1
Out of stock

92033

RING-SNAP

92033-1054

1
Out of stock

92043

PIN,10.1X12X14

92043-4009

1
Out of stock

92055

RING-O,19.5X1.5

92055-055

1
Out of stock

92151

BOLT,6X14

92151-1423

1
Out of stock
