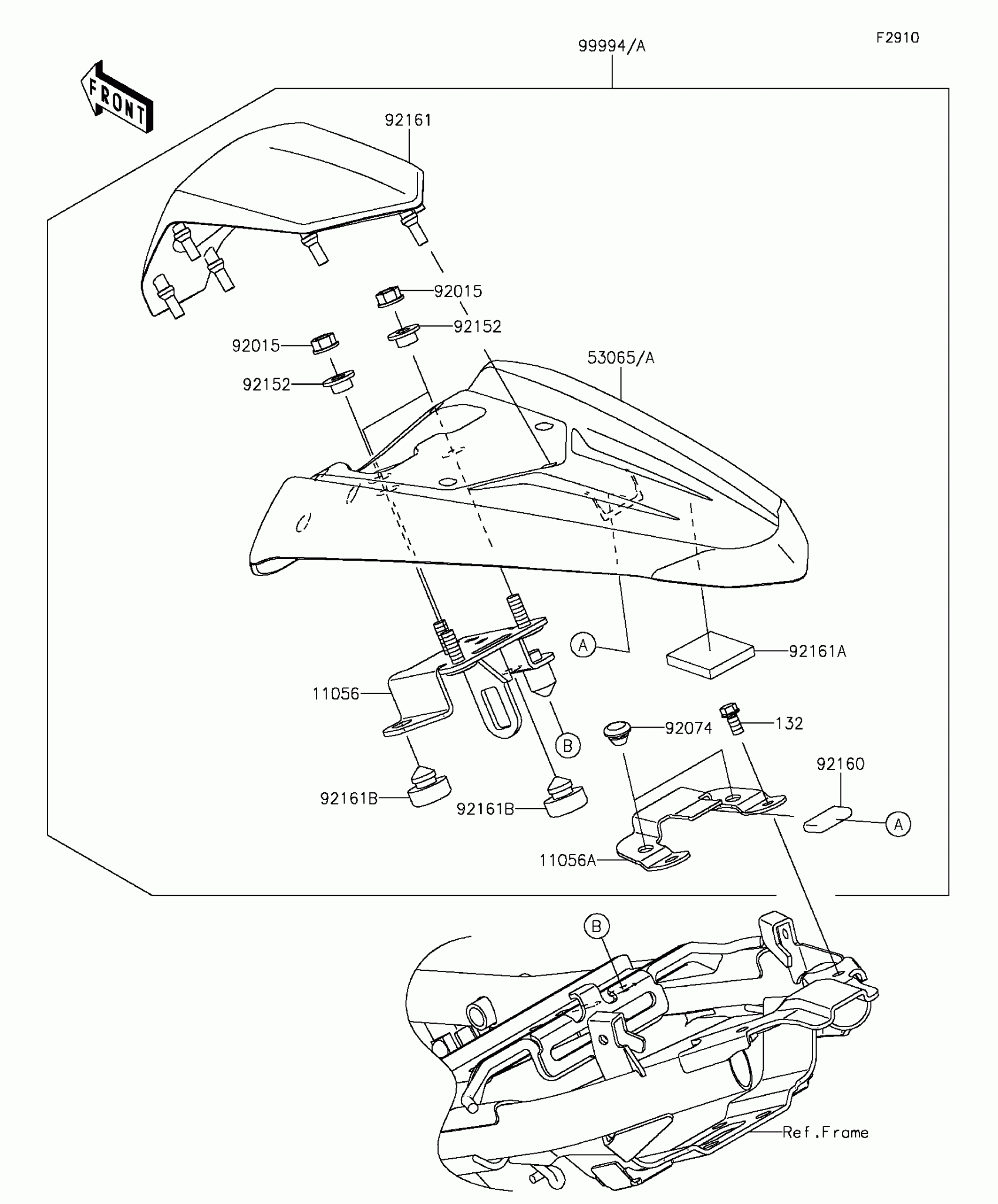

Kawasaki Z250SL Accessory Diagram

Description

Price

11056

BRACKET

11056-2560

$23.07

11056A

BRACKET

11056-2771

$7.47

53065

COVER SEAT,EBONY

53065-0025-20A

$148.45

53065A

COVER SEAT,C.L.GREEN

53065-0025-21Q

$148.45

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92074

PLUG,7X2

92074-028

$3.81

92152

COLLAR,6.8X10(16)X6.6

92152-0842

$5.99

92160

DAMPER

92160-1190

$3.12

92161

DAMPER,CUSHION

92161-1569

$67.98

92161A

DAMPER

92161-1591

$0.93

92161B

DAMPER,10X20X8

92161-1609

$4.98

99994

KIT,SINGLE SEAT,EBONY

99994-0403-20A

$241.93

99994A

KIT,SINGLE SEAT,C.L.GREEN

99994-0403-21Q

$241.93

132

BOLT-FLANGED-SMALL,5X10

132BA0510

$1.47
