2018 Kawasaki Z250SL ABS Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2018 Kawasaki Z250SL ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

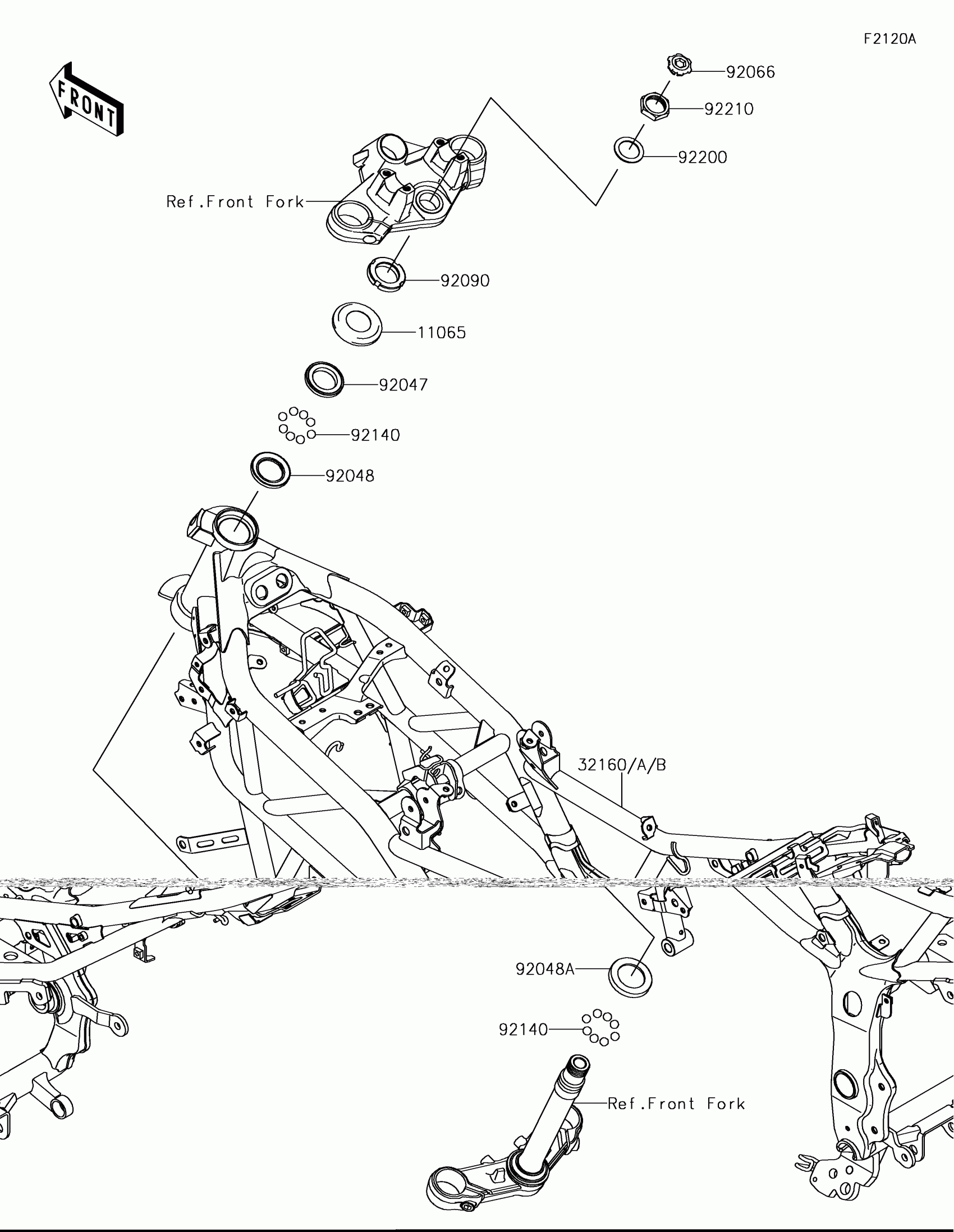

2018 Kawasaki Z250SL ABS Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,STEERING STEM

11065-0832

1
Out of stock

32160

FRAME-COMP,F.M.GRAY

32160-0822-26M

1
Out of stock

32160A

FRAME-COMP,F.F.RED

32160-0822-34R

1
Out of stock

92047

RACE,STEERING STEM BEARING

92047-011

1
Out of stock

92048

RACE,STEERING STEM BEARING

92048-006

1
Out of stock

92048A

RACE,STEERING STEM BEARING

92048-008

1
Out of stock

92066

PLUG

92066-0785

1
Out of stock

92090

NUT,30MM

92090-007

1
Out of stock

92140

BALL,6.35MM

92140-0008

1
Out of stock

92200

WASHER,25.5X36X1.6

92200-0893

1
Out of stock

92210

NUT,25MM

92210-0858

1
Out of stock
