1978 Kawasaki Z1R Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1978 Kawasaki Z1R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

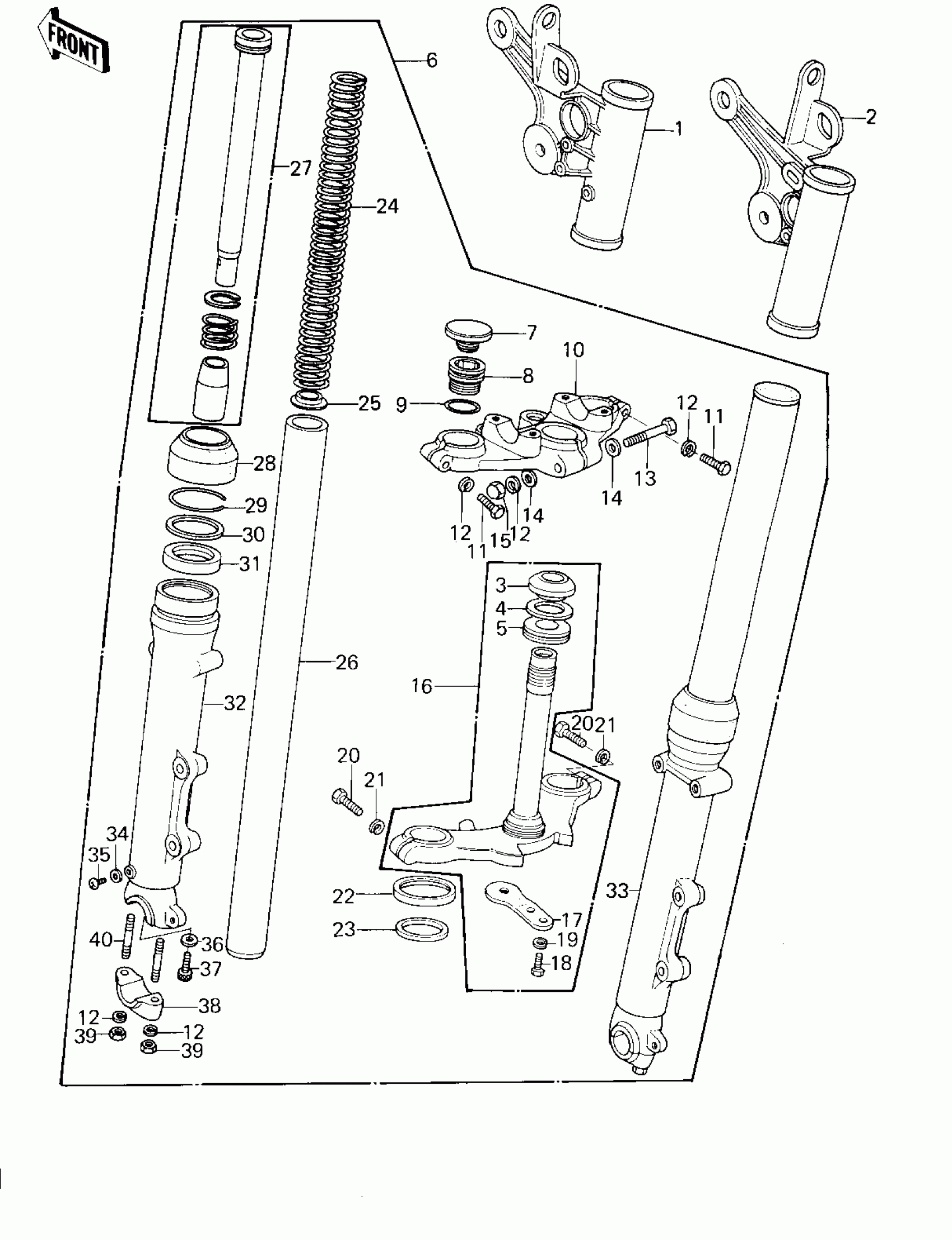

1978 Kawasaki Z1R Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER,L.H.FORK

44033-1011

1
Out of stock

2

COVER,R.H FORK

44033-1012

1
Out of stock

3

RACE,STEERING STEM BEARING

92047-012

1
Out of stock

4

WASHER,30.5X50X0.6

92022-231

1
Out of stock

5

SEAL-OIL,STEERING STEM

92056-003

1
Out of stock

6

FORK-FRONT

44001-1024

1
Out of stock

7

CAP,RUBBER

11012-1017

1
Out of stock

8

CAP,FORK SPRING

44029-1003

1
Out of stock

9

"O" RING,FORK TOP

92055-1009

1
Out of stock

10

HEAD,STEERING STEM

44039-1005

1
Out of stock

11

BOLT,8X40

92001-1082

1
Out of stock

12

WASHER SPRING 8MM

461F0800

1
Out of stock

13

BOLT-STEERING STEM HD

44041-042

1
Out of stock

14

WASHER PLAIN 8MM

410B0800

1
Out of stock

15

NUT FUEL TANK FRONT

92020-007

1
Out of stock

16

STEM,STEERING

44037-1008

1
Out of stock

17

BRACKET

11034-1126

1
Out of stock

18

BOLT,6X14

92001-1083

1
Out of stock

19

WASHER SPRING 6MM

461F0600

1
Out of stock

20

BOLT-HEX HEAD,12X36

92003-064

1
Out of stock

21

WASHER-SPRING,12MM

461F1200

1
Out of stock

22

WASHER,FORK COVER

44043-049

1
Out of stock

23

GASKET,FORK COVER

44045-038

1
Out of stock

24

SPRING,FORK

44026-1003

1
Out of stock

25

GUIDE,FORK SPRING

44028-1001

1
Out of stock

26

TUBE,FORK INNER

44013-1003

1
Out of stock

27

CYLINDER-FORK

44022-1002

1
Out of stock

28

DUST SHEILD,FORK

44010-032

1
Out of stock

29

CIRCLIP-OIL SEAL FIT

44044-012

1
Out of stock

30

WASHER-OIL SEAL FIT

44043-044

1
Out of stock

31

OIL SEAL,FORK

44009-024

1
Out of stock

32

TUBE,LH,FORK OUTER

44005-1032

1
Out of stock

33

TUBE,RH,FORK OUTER

44006-1032

1
Out of stock

34

GASKET,FORK DRAIN PLUG

44045-002

1
Out of stock

35

SCREW PAN HEAD 4X8

220B0408

1
Out of stock

36

GASKET

44045-057

1
Out of stock

37

BOLT,SOCKET,FORK CYLINDER

44041-040

1
Out of stock

38

HOLDER,FRONT AXLE

44063-014

1
Out of stock

39

NUT,LOCK,8MM

92017-013

1
Out of stock

40

STUD,8X35

92004-1009

1
Out of stock
