2019 Kawasaki Z125 Pro Front Brake Diagram

← All diagrams

Find the part on the Front Brake diagram for your 2019 Kawasaki Z125 Pro, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

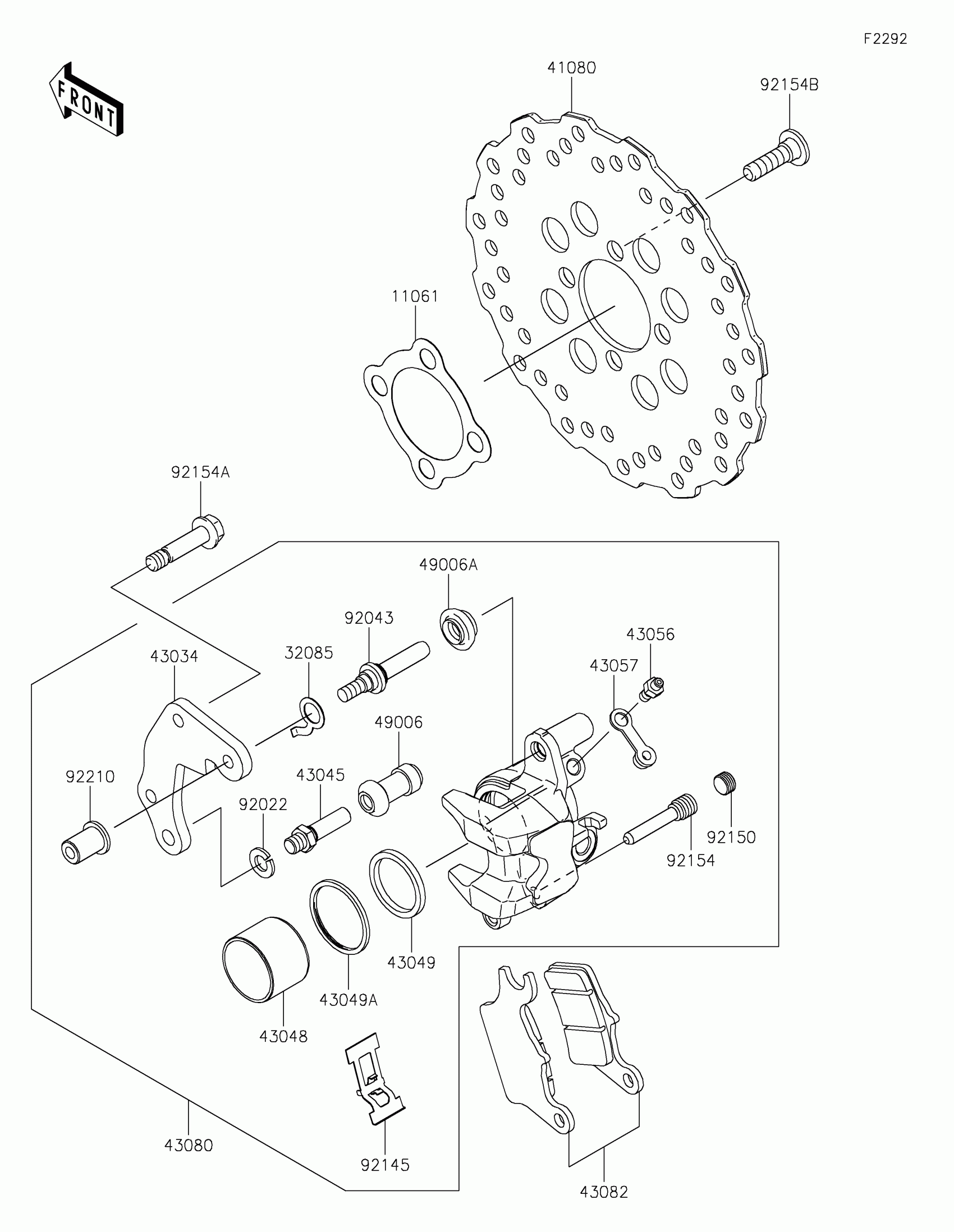

2019 Kawasaki Z125 Pro Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,BRAKE DISC

11061-0006

1

$4.95

In stock

32085

STOPPER

32085-0737

1

$4.78

In stock

41080

DISC,FR

41080-0645

1

$264.97

In stock

43034

HOLDER-BRAKE

43034-0119

1

$120.68

In stock

43045

SHAFT-CALIPER

43045-1010

1

$19.49

In stock

43048

PISTON-CALIPER

43048-0022

1

$52.23

In stock

43049

PACKING,PISTON SEAL

43049-1023

1

$13.58

In stock

43049A

PACKING,PISTON SEAL

43049-1024

1

$8.31

In stock

43056

BREATHER-BRAKE

43056-0004

1

$12.83

In stock

43057

CAP-BREATHER

43057-1001

1

$3.89

In stock

43080

1

$181.65

In stock

43082

PAD-ASSY-BRAKE

43082-0134

1

$68.61

In stock

49006

BOOT,CALIPER

49006-1088

1

$9.20

In stock

49006A

BOOT,CALIPER

49006-1242

1

$4.34

In stock

92022

WASHER,WAVE

92022-1373

1

$3.53

In stock

92043

PIN,8X17

92043-0757

1

$20.10

In stock

92145

SPRING

92145-0939

1

$13.05

In stock

92150

BOLT,PLUG

92150-1692

1

$6.24

In stock

92154

BOLT

92154-1120

1

$7.86

In stock

92154A

BOLT,FLANGED,8X36

92154-1260

1

$4.32

In stock

92154B

BOLT,SOCKET,8X30

92154-1865

1

$3.72

In stock

92210

NUT

92210-0615

1
Out of stock
