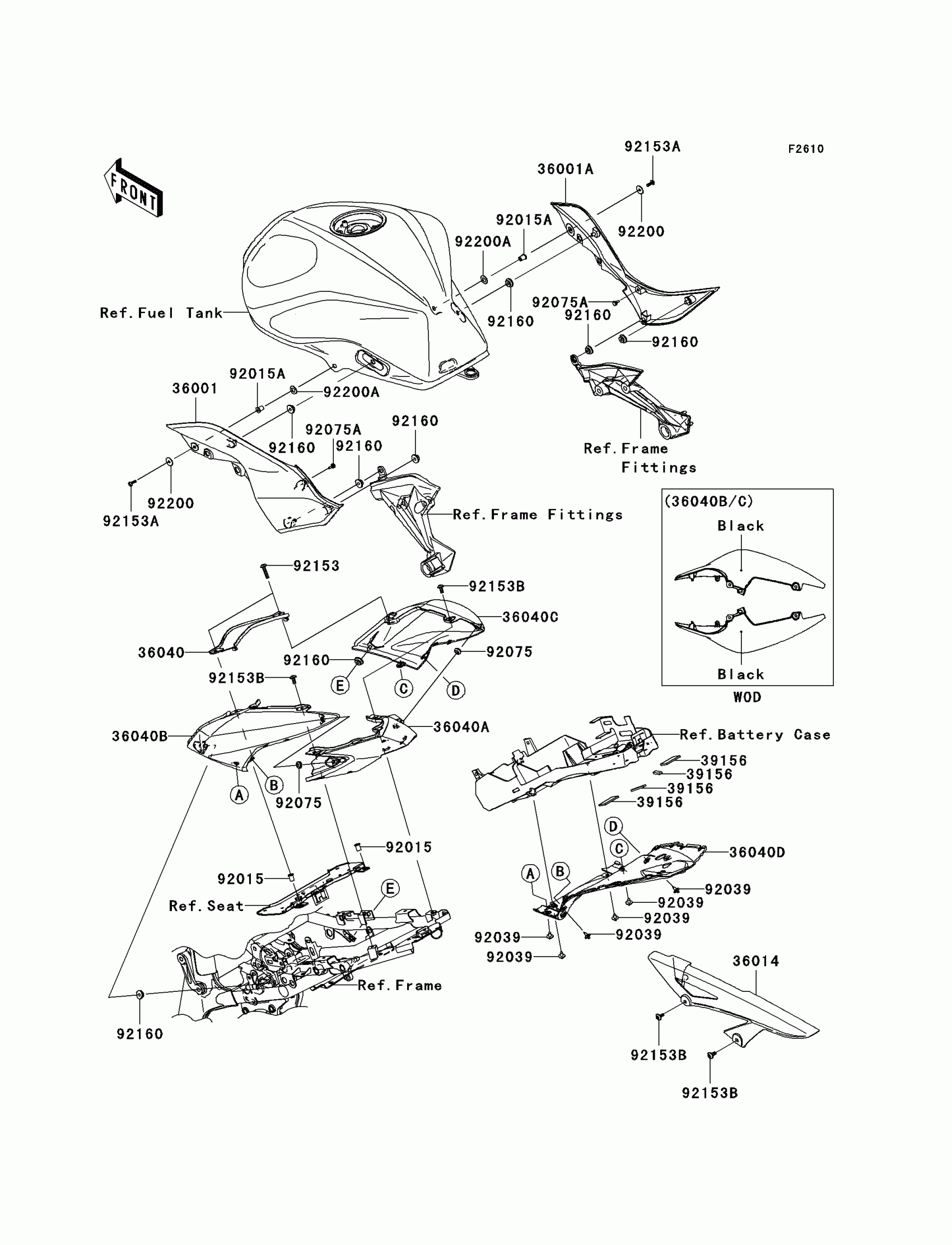

Kawasaki Z1000 Side Covers/Chain Cover(B7F) Diagram

Description

Price

36001

COVER-SIDE,LH,F.BLACK

36001-0108-6Z

Unavailable

36001A

COVER-SIDE,RH,F.BLACK

36001-0109-6Z

$127.90

36014

CASE-CHAIN

36014-0029

$38.22

36040

COVER-TAIL,CNT,FR,M.BLACK

36040-0043-17K

$53.36

36040A

COVER-TAIL,CNT,RR,M.BLACK

36040-0044-17K

Unavailable

36040B

COVER-TAIL,SIDE,LH,M.BLACK

36040-0071-17K

$214.62

36040C

COVER-TAIL,SIDE,RH,M.BLACK

36040-0072-17K

$214.62

36040D

COVER-TAIL,LWR,M.BLACK

36040-0077-17K

$188.11

39156

PAD

39156-0286

$1.29

92015

NUT

92015-1700

$6.82

92015A

NUT,WELL,5MM

92015-1757

$5.81

92039

RIVET

92039-1256

$2.31

92075

DAMPER,6X16X7

92075-1011

$5.84

92075A

DAMPER,6X10X15

92075-1808

$1.24

92153

BOLT,6X18

92153-0816

$1.81

92153A

BOLT,SOCKET,5X16

92153-1244

$2.00

92153B

BOLT,SOCKET,6X14

92153-1612

$1.56

92160

DAMPER

92160-1613

$2.97

92200

WASHER,5.5X20X1.2

92200-0284

$1.81

92200A

WASHER,10.3X20X1

92200-0414

$4.95
