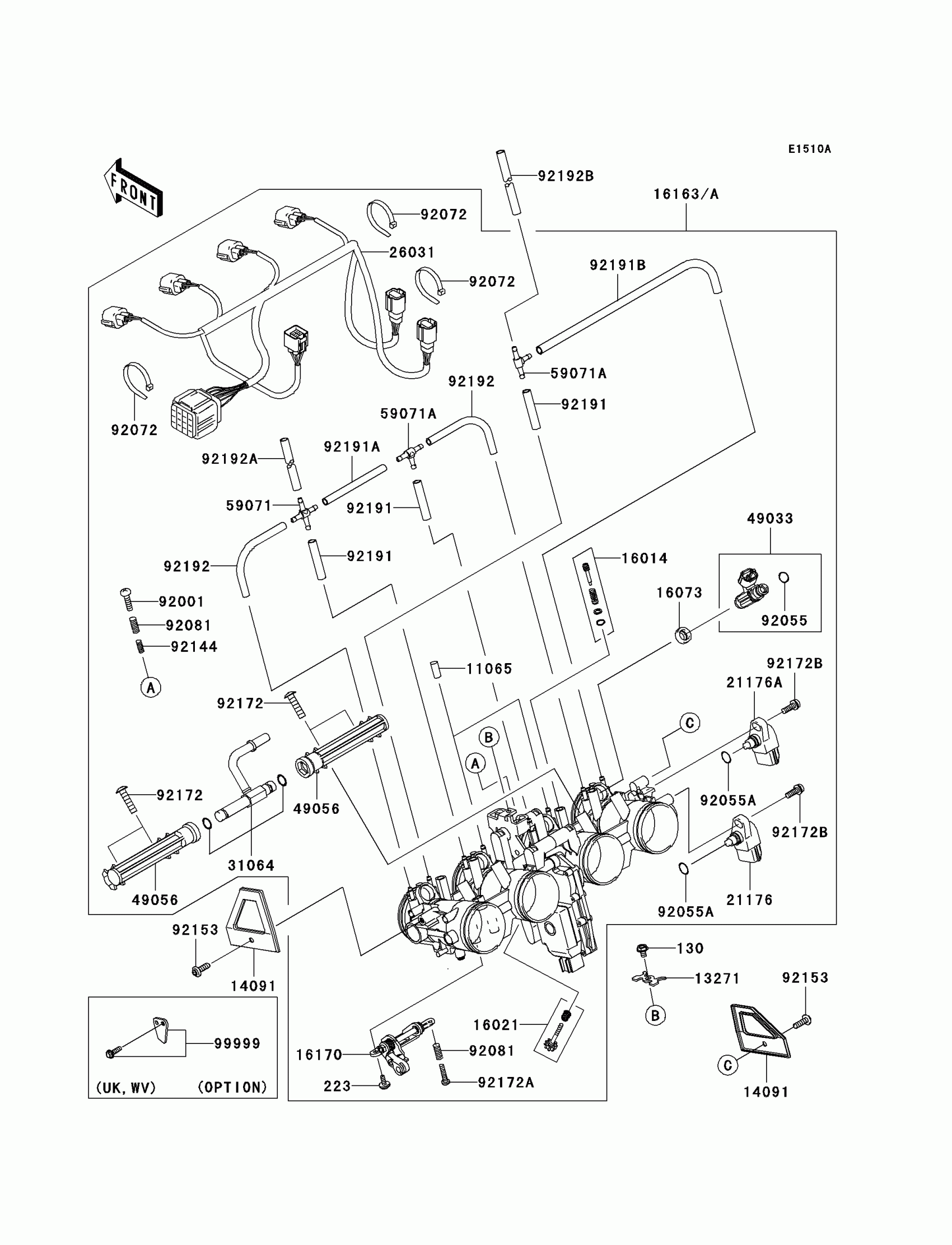

Kawasaki Z1000 (European) Throttle(A2H/A3H) Diagram

#

Description
Price

130

BOLT-FLANGED,5X8

130G0508

Unavailable

223

SCREW-PAN-WS-CROS,4X10

223D0410

Unavailable

11065

CAP

11065-0018

$4.84

13271

PLATE

13271-0056

$3.29

14091

COVER,THROTTLE-BODY

14091-0055

$11.37

16014

SCREW-PILOT AIR

16014-0002

$23.08

16021

SCREW-THROTTLE STOP

16021-0002

$81.14

16073

INSULATOR

16073-3707

$4.90

16170

LINK-ASSY

16170-0004

$244.62

21176

SENSOR,TPS

21176-0002

$222.19

21176A

SENSOR,TPS

21176-0003

$222.19

26031

HARNESS

26031-0040

$485.76

31064

PIPE-COMP

31064-0005

$23.15

49033

NOZZLE-INJECTION

49033-1060

$137.70

49056

PIPE-INJECTION

49056-0001

$105.87

59071

JOINT,4WAY

59071-0014

$13.83

59071A

JOINT,3WAY,T

59071-3752

$8.09

92001

BOLT,THROTTLE ADJUST

92001-1998

$15.88

92055

RING-O,INJECTION NOZZLE

92055-1622

$1.64

92055A

RING-O

92055-1671

$3.29

92072

BAND,SUB-HARNESS

92072-0012

$3.97

92081

SPRING

92081-1620

$3.94

92144

SPRING

92144-1451

$9.29

92153

BOLT,SOCKET,5X16

92153-1244

$2.00

92172

SCREW,PIPE INJECTION

92172-0064

$2.29

92172A

SCREW,THROTTLE SYNCRO

92172-0065

$2.56

92172B

SCREW

92172-0080

$4.42

92191

TUBE,3X7X30

92191-0025

$2.00

92191A

TUBE,3X7X82

92191-0036

$4.10

92191B

TUBE,3X7X265

92191-0038

$12.92

92192

TUBE,3X7X95

92192-0018

$3.36

92192A

TUBE,3X7X170

92192-0019

$12.86

92192B

TUBE,3X7X275

92192-0062

$7.58

16163

THROTTLE-ASSY

16163-0032

$2,039.47

16163A

THROTTLE-ASSY

16163-0034

Unavailable

99999

KIT.,72KW

99999-0005

Unavailable
