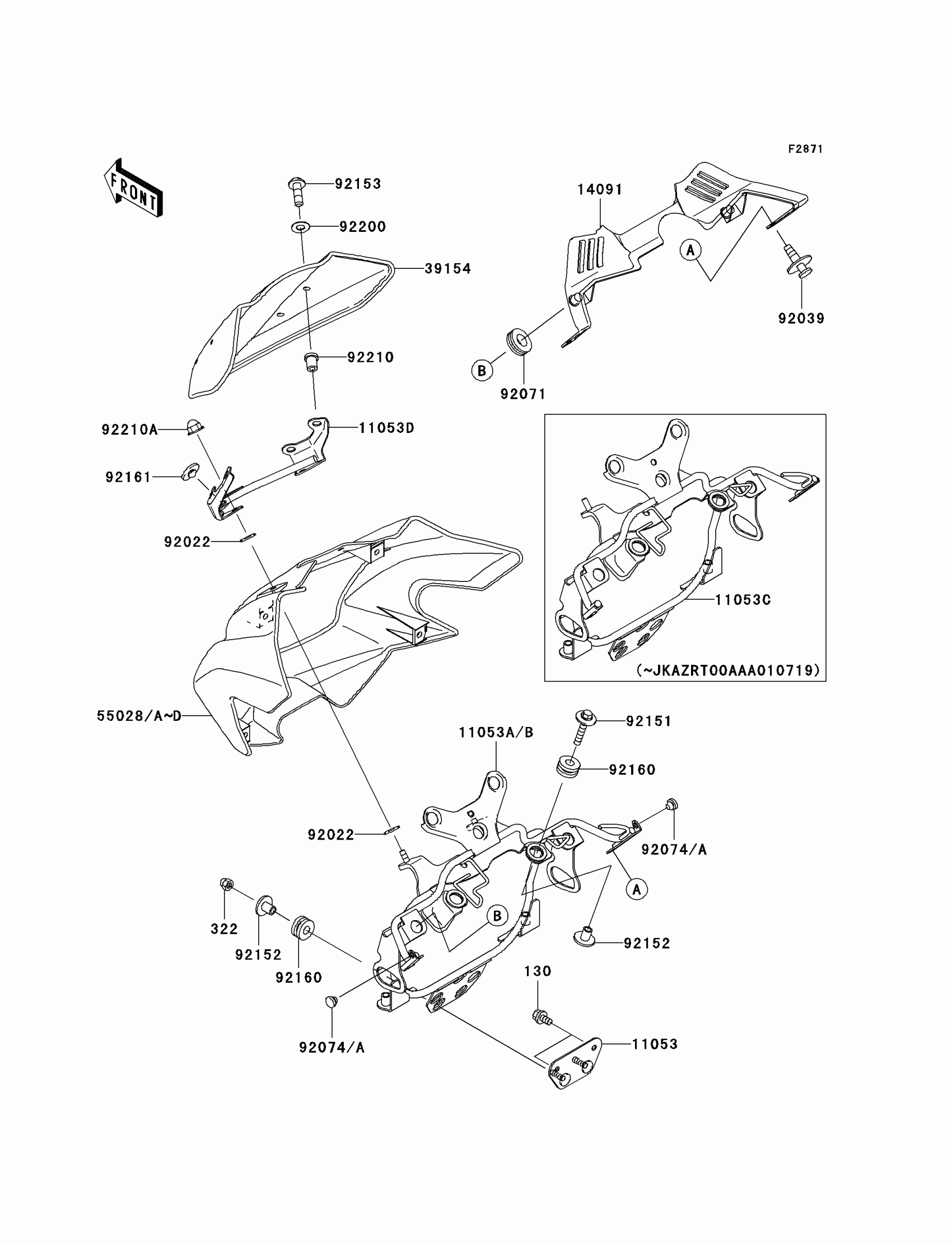

Kawasaki Z1000 (European) Cowling(A1H/A2H) Diagram

Description

Price

130

BOLT-FLANGED

130J0610

Unavailable

322

NUT-CAP,6MM,BLACK

322C0600

Unavailable

11053

BRACKET

11053-0146

$14.36

11053A

BRACKET,UPP COWLING&METER

11053-0433

$490.73

11053D

BRACKET,WINDSHIELD

11053-1161

$94.33

14091

COVER,COWLING,INNER

14091-1549

$76.82

39154

WINDSHIELD

39154-1160

$202.27

55028A

COWLING,UPP,P.RED

55028-1459-234

$644.23

55028B

COWLING,UPP,P.B.ORANGE

55028-1459-470

$552.99

55028C

COWLING,UPP,M.S.BLACK

55028-1459-660

Unavailable

92022

WASHER,6.5X16X1

92022-1143

$3.12

92039

RIVET

92039-1227

$1.54

92071

GROMMET

92071-3737

$4.85

92074

PLUG,7X2

92074-028

$3.81

92151

BOLT,FLANGED,6X30

92151-1105

$3.92

92152

COLLAR

92152-0048

$2.29

92153

BOLT,SOCKET,5X18

92153-0370

$1.66

92160

DAMPER

92160-1162

$3.97

92161

DAMPER,RUBBER

92161-1200

$3.35

92200

WASHER,NYLON,5.3X11.5X0.5

92200-1480

$1.25

92210

NUT,5MM

92210-0001

$4.90

92210A

NUT,CAP,6MM

92210-0003

$0.69
