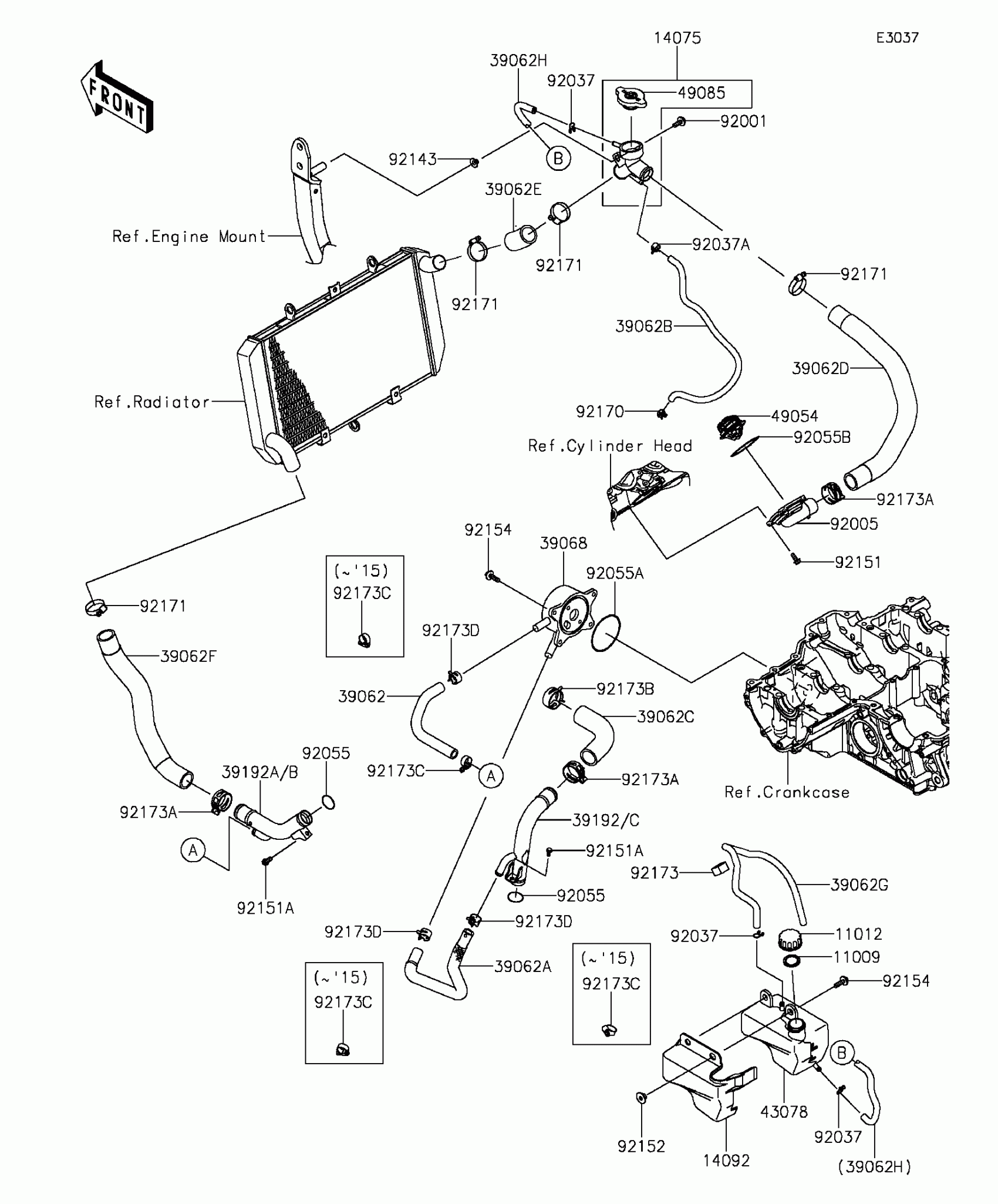

Kawasaki Z1000 ABS Water Pipe Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.08

11012

CAP

11012-1084

$1.25

14075

CAP-ASSY

14075-0028

Unavailable

14092

COVER,RESERVOIR

14092-1098

$18.67

39062

HOSE-COOLING,PIPE-OIL COOLER

39062-0308

$9.22

39062A

HOSE-COOLING,PIPE-OIL COOLER

39062-0309

$35.46

39062B

HOSE-COOLING,AIR BLEED

39062-0310

$9.75

39062C

HOSE-COOLING,PIPE-CYLINDER

39062-0312

$15.76

39062D

HOSE-COOLING,CAP-THERMO

39062-0313

$58.89

39062E

HOSE-COOLING,CAP-RAD.

39062-0314

$7.41

39062F

HOSE-COOLING,RAD.-PIPE

39062-0637

$59.40

39062G

HOSE-COOLING,OVERFLOW

39062-1700

$21.07

39062H

HOSE-COOLING

39062-1873

$22.38

39068

COOLER-ASSY-OIL

39068-0704

$697.00

39192B

PIPE-WATER

39192-0601

$44.78

39192C

PIPE-WATER

39192-0602

$44.78

43078

RESERVOIR

43078-0566

$45.45

49054

THERMOSTAT

49054-0004

$51.97

49085

CAP-ASSY-PRESSURE

49085-1066

$33.19

92001

BOLT,6X18

92001-1342

Unavailable

92005

FITTING,THERMO CAP

92005-0076

$70.91

92037

CLAMP,TUBE

92037-147

$5.61

92037A

CLAMP,TUBE

92037-1505

$3.63

92055

RING-O,20.8X2.4

92055-0114

$2.98

92055A

RING-O,63.3MM

92055-0739

$3.13

92055B

RING-O,THERMOSTAT CAP

92055-1699

$6.91

92143

COLLAR

92143-1057

$3.81

92151

BOLT,5X14

92151-1764

$2.00

92151A

BOLT,6X12

92151-1997

$1.36

92152

COLLAR

92152-1740

$4.34

92154

BOLT,FLANGED,6X22

92154-0403

$2.68

92170

CLAMP

92170-1493

$3.81

92171

CLAMP

92171-0179

$6.25

92173

CLAMP,CLIP

92173-0127

$14.78

92173A

CLAMP,34MM

92173-1360

$3.03

92173B

CLAMP,35.5MM

92173-1432

$2.72

92173C

CLAMP

92173-1482

$15.46

92173D

CLAMP

92173-1484

$15.46
