2016 Kawasaki Z1000 ABS Suspension/shock Absorber Diagram

← All diagrams

Find the part on the Suspension/shock Absorber diagram for your 2016 Kawasaki Z1000 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

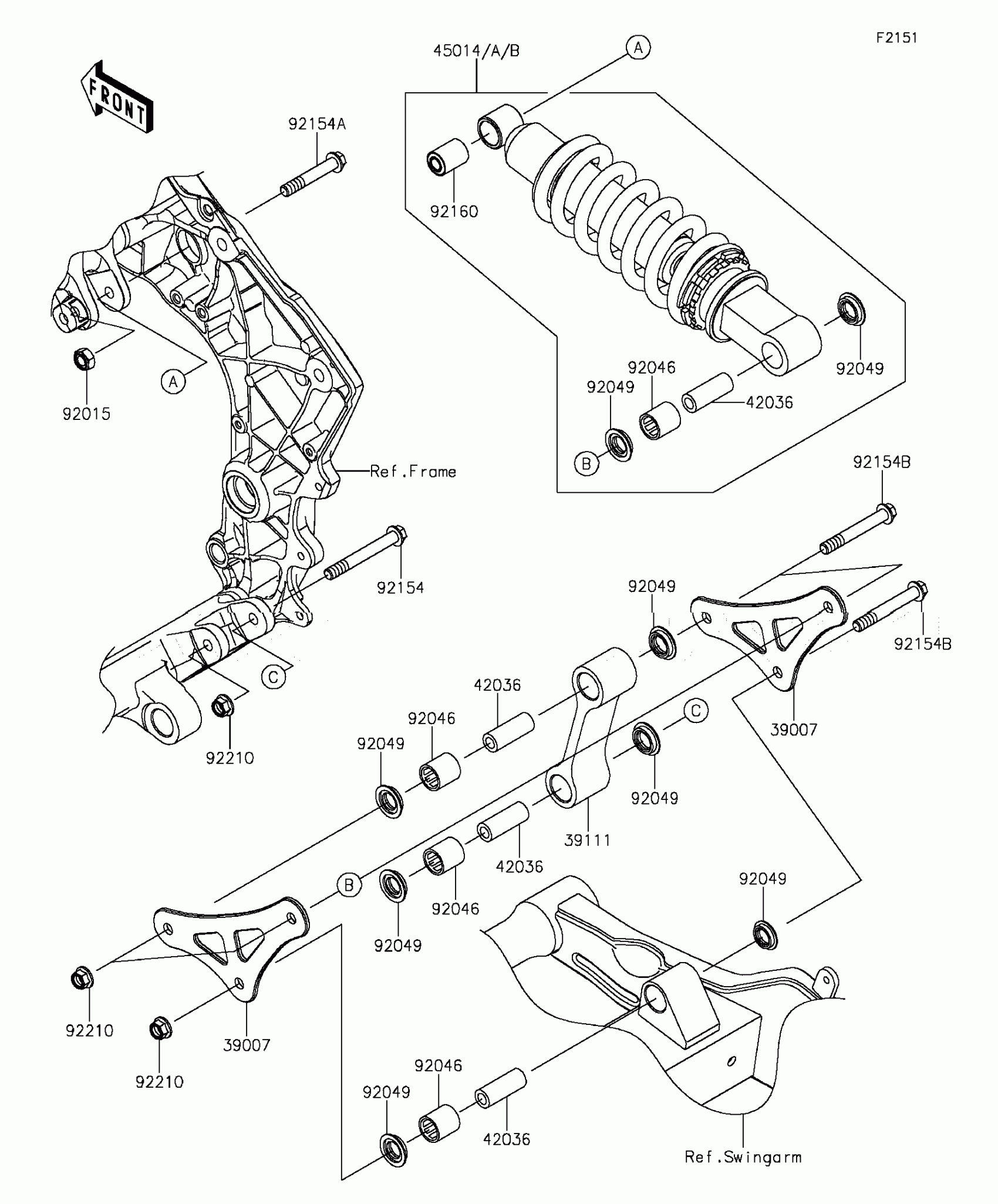

2016 Kawasaki Z1000 ABS Suspension/shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39007

ARM-SUSP,UNI TRAK,F.S.BLACK

39007-0375-18R

1
Out of stock

39111

ROD-TIE,SUSPENSION

39111-0321

1
Out of stock

42036

SLEEVE,10.1X17X44.5

42036-1342

1
Out of stock

45014

SHOCKABSORBER,P.WHITE

45014-0468-EH

1
Out of stock

45014A

SHOCKABSORBER,P.SILVER

45014-0468-458

1
Out of stock

92015

NUT,LOCK,10MM,BLACK

92015-1189

1
Out of stock

92046

BEARING-NEEDLE,SFYZM172425

92046-1273

1
Out of stock

92049

SEAL-OIL,MHA17245.7F

92049-1223

1
Out of stock

92154

BOLT,FLANGED,10X77

92154-0262

1
Out of stock

92154A

BOLT,FLANGED,10X60

92154-0263

1
Out of stock

92154B

BOLT,FLANGED,10X67

92154-0264

1
Out of stock

92160

DAMPER,SHOCKABSORBER

92160-1496

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-1139

1
Out of stock
