1975 Kawasaki Z1 Swing Arm/shock Absorbers Diagram

← All diagrams

Find the part on the Swing Arm/shock Absorbers diagram for your 1975 Kawasaki Z1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

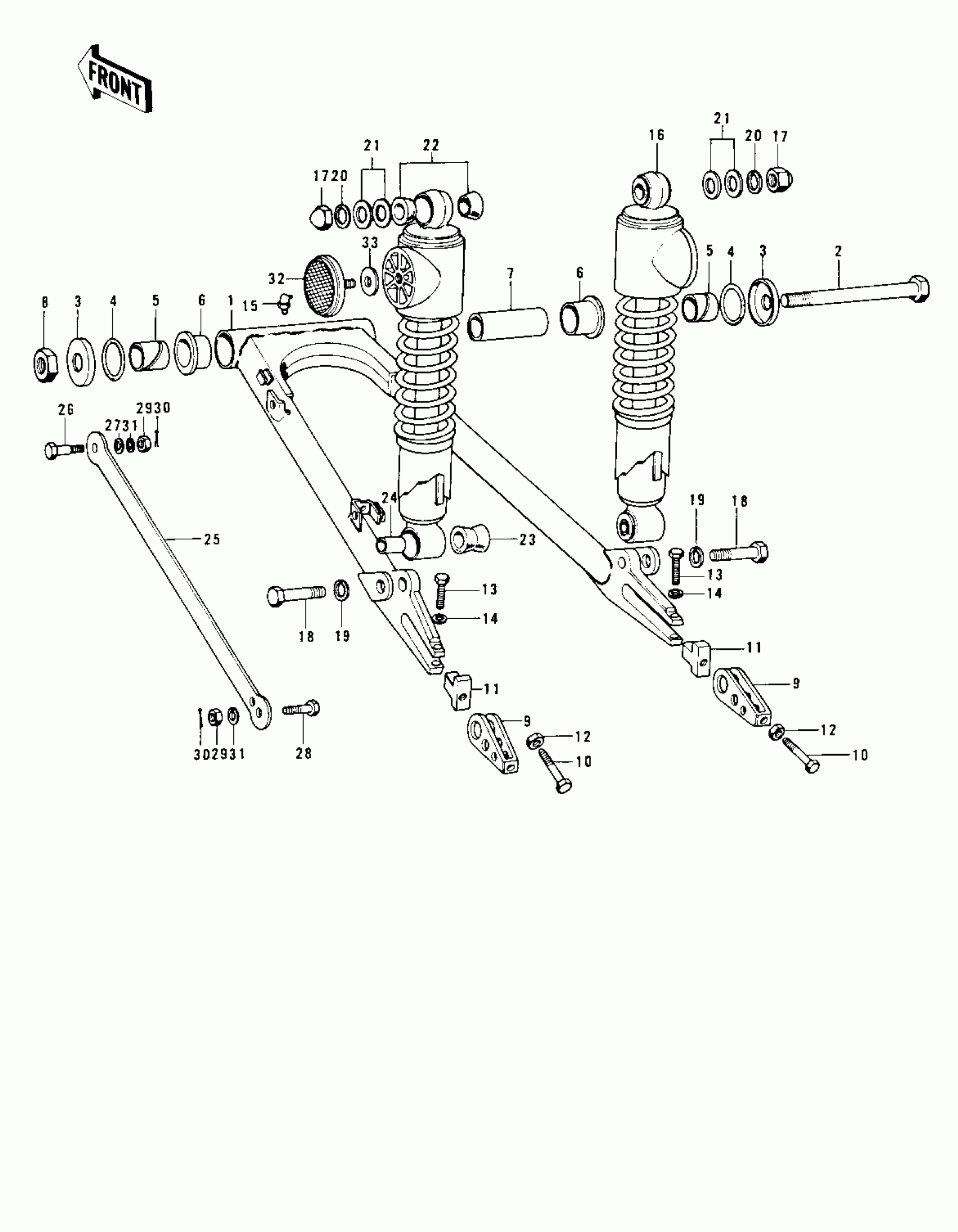

1975 Kawasaki Z1 Swing Arm/shock Absorbers Diagram

#

Description
Price
Status
Order Qty

1

ARM,SWING

33001-046

Out of stock

2

SHAFT-SWING ARM

33032-036

Out of stock

3

CAP,SWING ARM

33035-007

Out of stock

4

"0" RING,30MM

671B2530

Out of stock

5

SLEEVE SWING ARM

33034-009

Out of stock

6

BUSHING-SWING ARM

33033-009

Out of stock

7

COLLAR,SWING ARM L=141.5MM

33036-005

Out of stock

8

NUT-SELF LOCKING

92019-012

Out of stock

9

ADJUSTER SET,CHAIN

33043-005

Out of stock

9

ADJUSTER,CHAIN D=10MM

33040-063

Out of stock

9

ADJUSTER-CHAIN

33040-066

Out of stock

10

BOLT,8X50

92001-1399

Out of stock

10

BOLT,10X50

92001-143

Out of stock

11

STOPPER,CHAIN ADJUSTER

33044-001

Out of stock

12

NUT 8MM

312B0800

Out of stock

12

NUT-HEX-FINE,10MM

315B1000

Out of stock

13

BOLT

92001-1578

Out of stock

14

WASHER SPRING 8MM

461F0800

Out of stock

15

GREASE NIPPLE

92005-002

Out of stock

16

SHOCK ABSBR RR

45014-072

Out of stock

17

NUT,CAP,12MM

92020-014

Out of stock

18

BOLT HEX HEAD 10X35

113N1035

Out of stock

19

WASHER SPRING 10MM

461F1000

Out of stock

20

WASHER-SPRING,12MM

461F1200

Out of stock

21

WASHER-PLAIN-SMALL,12MM

410B1200

Out of stock

22

BUSH SHCK ABS RUBBER

45017-001

Out of stock

23

BUSHING,SHCK ABSORBER

45017-011

Out of stock

24

COLLAR,SHOCKABSORBER

45016-003

Out of stock

25

TORQUE LINK,RR BRAKE

43007-032

Out of stock

26

BOLT TORQUE LINK FITT

92003-103

Out of stock

27

WASHER-PLAIN,10MM

411B1000

Out of stock

28

BOLT,TORQUE LINK

92003-147

Out of stock

28

BOLT,TORQUE LINK

92003-147

Out of stock

29

NUT-HEX-FINE,10MM

314B1000

Out of stock

30

PIN-SNAP,8MM

554A0800

Out of stock

31

WASHER SPRING 10MM

461F1000

Out of stock

32

REFLECTOR-REFLEX,REAR

28012-008

Out of stock

33

DAMPER,REFLECTOR

92094-011

Out of stock
