2021 Kawasaki Z H2 SE Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2021 Kawasaki Z H2 SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

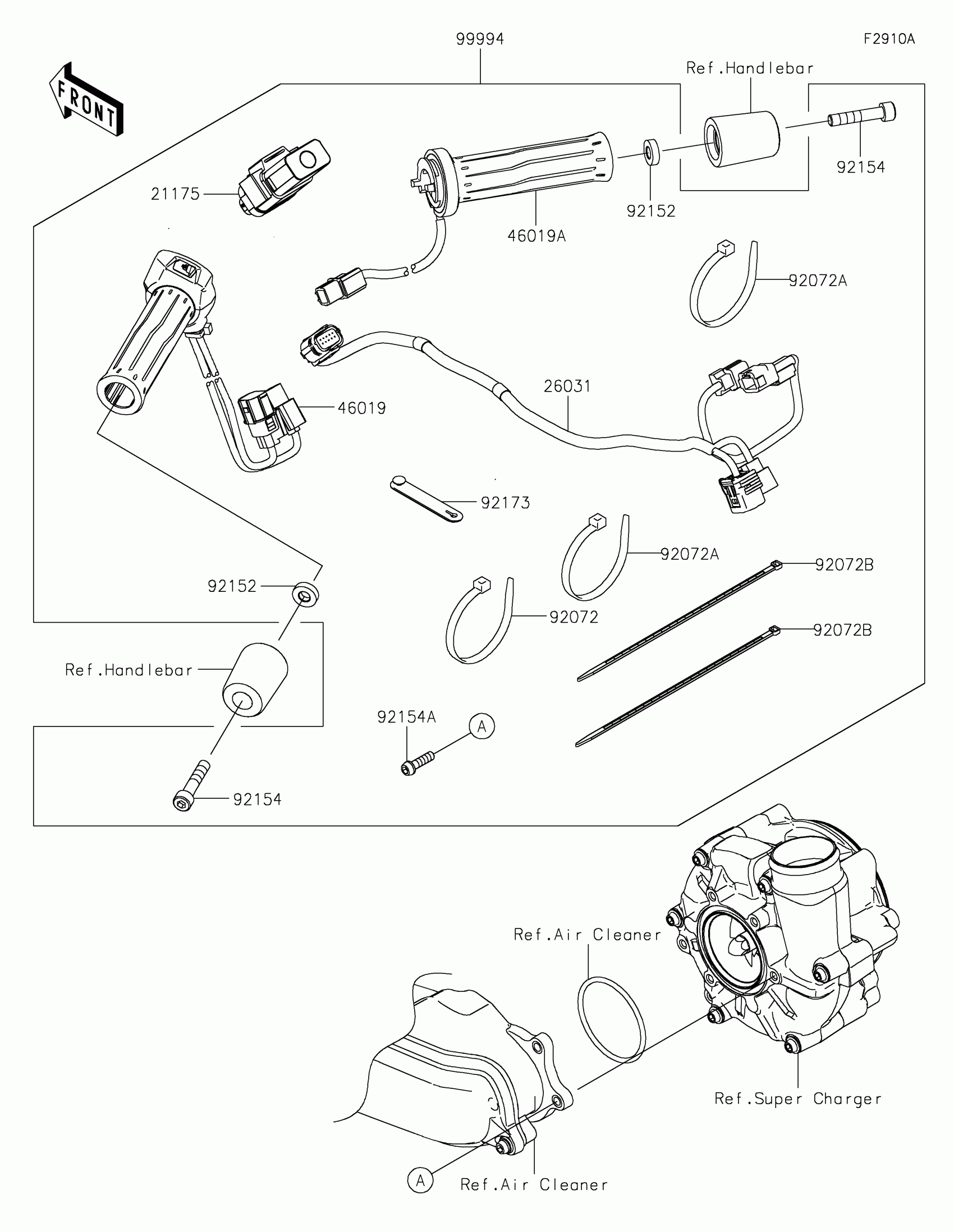

2021 Kawasaki Z H2 SE Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21175

CONTROL UNIT-ELECTRONIC,GH

21175-1329

1
Out of stock

26031

HARNESS

26031-2895

1
Out of stock

46019

GRIP-ASSY,GRIP HEATER,LH

46019-0112

1
Out of stock

46019A

GRIP-ASSY,GRIP HEATER,RH

46019-0113

1
Out of stock

92072

BAND

92072-0904

1
Out of stock

92072A

BAND,L=365

92072-1197

1
Out of stock

92072B

BAND

92072-3851

1
Out of stock

92152

COLLAR,8.2X18X5

92152-1848

1
Out of stock

92154

BOLT,SOCKET,8X40

92154-1001

1
Out of stock

92154A

BOLT,SOCKET,6X22,MEC

92154-2736

1
Out of stock

92173

CLAMP

92173-2199

1
Out of stock

99994

GRIP HEATER

99994-1667

1
Out of stock
