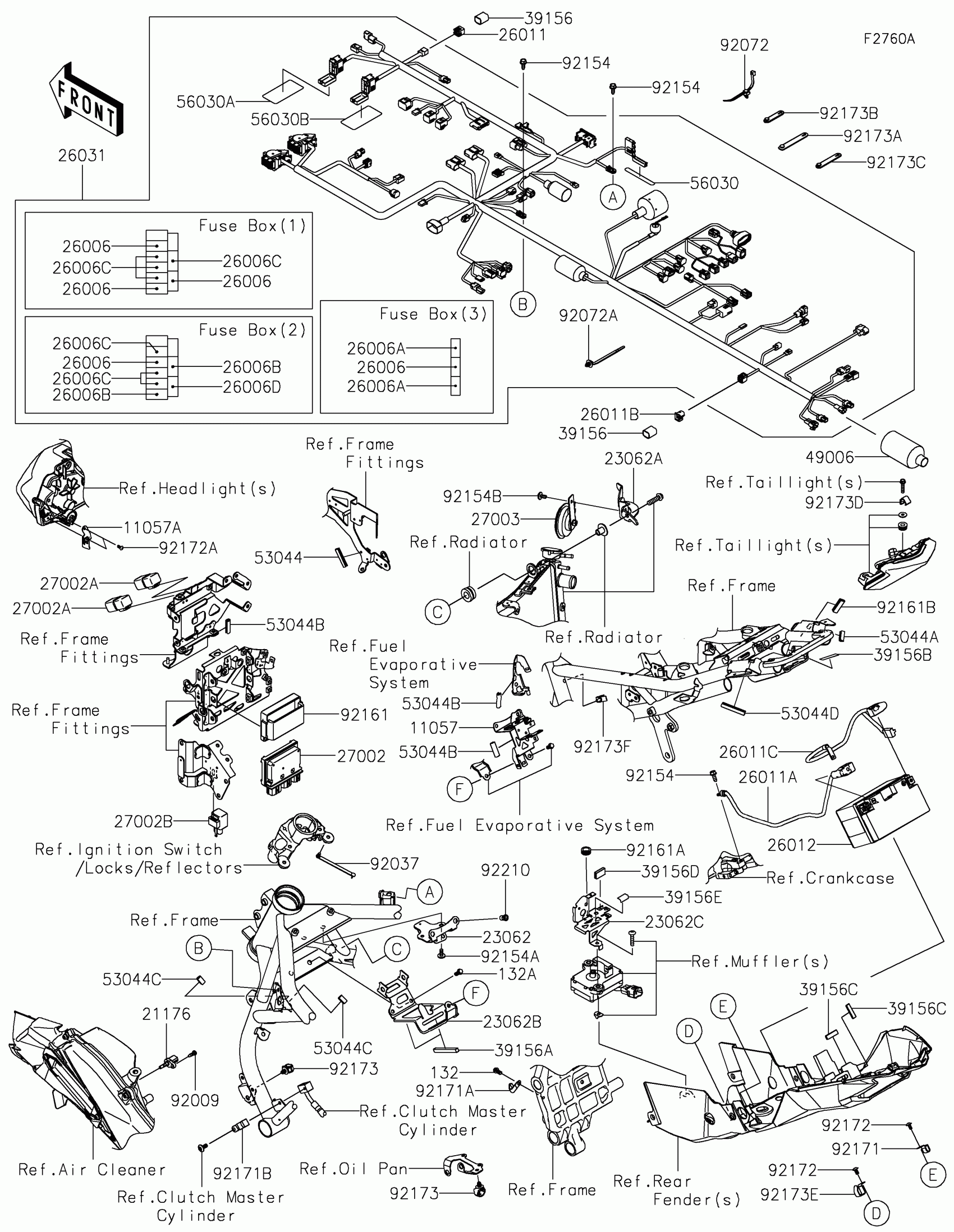

Kawasaki Z H2 Chassis Electrical Equipment(CA) Diagram

#

Description
Price

11057

BRACKET,HARNESS CONNECTOR

11057-2939

$17.78

11057A

BRACKET,FR SIGNAL CONNECTOR

11057-4159

$4.90

21176

SENSOR,AIR TEMPERATURE

21176-0048

$21.77

23062

BRACKET-COMP

23062-1272

$12.49

23062A

BRACKET-COMP,HORN

23062-1290

$31.47

23062B

BRACKET-COMP,CANISTER

23062-1293

$22.00

23062C

BRACKET-COMP

23062-1334

$23.37

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$5.34

26006A

FUSE,MINI BLADE,25A,NATURAL

26006-0020

$5.71

26006B

FUSE,MINI BLADE,2A,GRAY

26006-0052

$5.71

26006C

FUSE,MINI BLADE,10A,RED

26006-1078

$3.36

26006D

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.32

26011

WIRE-LEAD,CONNECTOR COVER

26011-0275

$13.42

26011A

WIRE-LEAD,BATTERY(-)

26011-0908

$50.29

26011B

WIRE-LEAD,DIAG CONNECTOR

26011-1901

$33.04

26011C

WIRE-LEAD,BATTERY(+)

26011-1906

$61.55

26012

BATTERY,YTZ10S,12V 8.6AH

26012-0564

$210.21

26031

HARNESS,MAIN

26031-2991

$1,164.12

27002

RELAY-ASSY

27002-0050

$127.74

27002A

RELAY-ASSY

27002-1086

$32.97

27002B

RELAY-ASSY,SIGNAL LAMP

27002-1097

$48.33

27003

HORN

27003-0156

$71.33

39156

PAD,DIAG. CONNECTOR

39156-1886

$1.80

39156A

PAD,7X70X7

39156-2269

$1.54

39156B

PAD,35X25X0.2

39156-2449

$1.34

39156C

PAD,30X15X1

39156-2495

$0.88

39156D

PAD,25X25X2

39156-2573

$1.12

39156E

PAD,22X13X0.2

39156-2591

$0.83

49006

BOOT

49006-0573

$12.98

53044

TRIM,L=40

53044-0012

$2.42

53044A

TRIM,9X6.5X20

53044-0596

$3.68

53044B

TRIM,9X6.5X30

53044-0632

$3.97

53044C

TRIM,L=16

53044-0657

$11.20

53044D

TRIM,L=50

53044-0699

$4.22

56030

LABEL,FUSE BOX3

56030-0400

$3.92

56030A

LABEL,FUSE BOX1

56030-1376

$2.61

56030B

LABEL,FUSE BOX2

56030-1570

$2.47

92009

SCREW,TAPPING,5X16

92009-1984

$1.82

92037

CLAMP,SPEED,L=80.5

92037-1903

$5.99

92072

BAND

92072-0066

$2.71

92072A

BAND,OS170-FT7(BLACK)

92072-1414

Unavailable

92154

BOLT,FLANGED,6X16

92154-0551

$1.44

92154A

BOLT,SOCKET,6X14

92154-0907

$1.44

92154B

BOLT,SOCKET,6X12

92154-4100

$2.12

92161

DAMPER,RELAY BOX

92161-0203

$10.02

92161A

DAMPER

92161-0570

$1.32

92161B

DAMPER,30X20X2

92161-0833

$1.44

92171

CLAMP

92171-0766

$4.95

92171A

CLAMP

92171-0813

$8.46

92171B

CLAMP

92171-0926

$6.62

92172

SCREW,TAPPING,5X10

92172-0262

$1.04

92172A

SCREW,CROS,4X10

92172-1248

$1.19

92173

CLAMP,12MM DIA.

92173-0736

$3.85

92173A

CLAMP

92173-2194

$1.56

92173B

CLAMP

92173-2198

$1.32

92173C

CLAMP

92173-2199

$1.32

92173D

CLAMP

92173-2303

$8.97

92173E

CLAMP

92173-2308

$5.88

92173F

CLAMP

92173-2345

$2.29

92210

NUT,POP,6MM,L=15

92210-1397

$4.81

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$0.97

132A

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.16
