2024 Kawasaki Z e-1 ABS Rear Wheel/chain Diagram

← All diagrams

Find the part on the Rear Wheel/chain diagram for your 2024 Kawasaki Z e-1 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

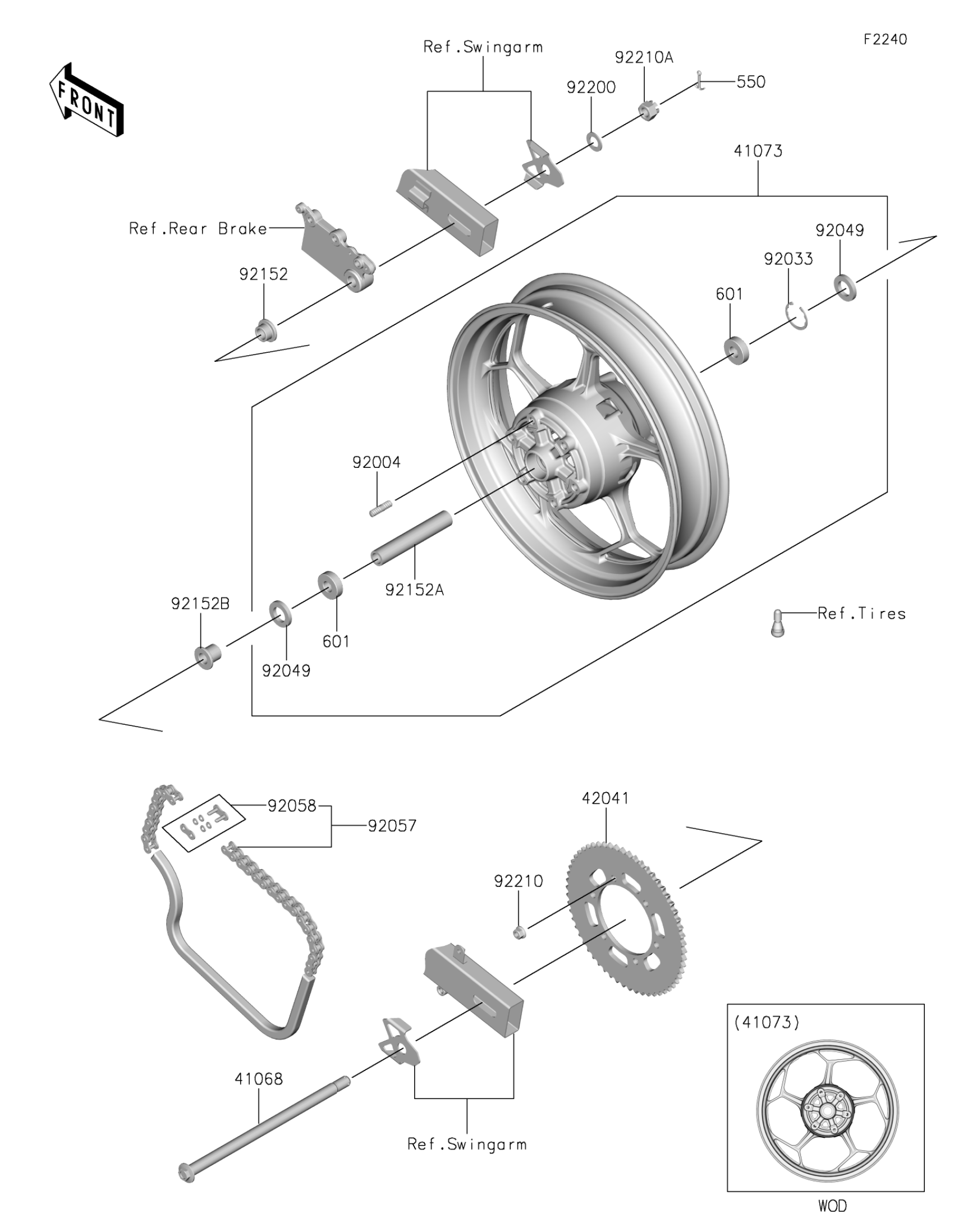

2024 Kawasaki Z e-1 ABS Rear Wheel/chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41068

AXLE,RR

41068-0644

1

$70.76

In stock

41073

WHEEL-ASSY,RR,G.BLACK

41073-0825-QT

1

$700.73

In stock

42041

SPROCKET-HUB,58T

42041-0195

1

$80.90

In stock

92004

STUD,10X19

92004-0048

1
Out of stock

92033

RING-SNAP,40MM

92033-1040

1

$4.67

In stock

92049

SEAL-OIL

92049-0794

1
Out of stock

92057

1

$89.21

In stock

92058

JOINT-CHAIN,DRIVE

92058-0085

1

$17.22

In stock

92152

COLLAR,17X24X16

92152-1760

1
Out of stock

92152A

COLLAR,17.1X24X141

92152-2317

1
Out of stock

92152B

COLLAR

92152-2977

1

$22.86

In stock

92200

WASHER,17.3X30X2

92200-1916

1

$1.10

In stock

92210

NUT,LOCK,FLANGED,10MM

92210-1139

1
Out of stock

92210A

NUT,CASTLE,16X19

92210-1585

1

$5.25

In stock

550

PIN-COTTER,4.0X35

550AA4035

1

$1.81

In stock

601

1

$17.81

In stock
