2024 Kawasaki Z e-1 ABS Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2024 Kawasaki Z e-1 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

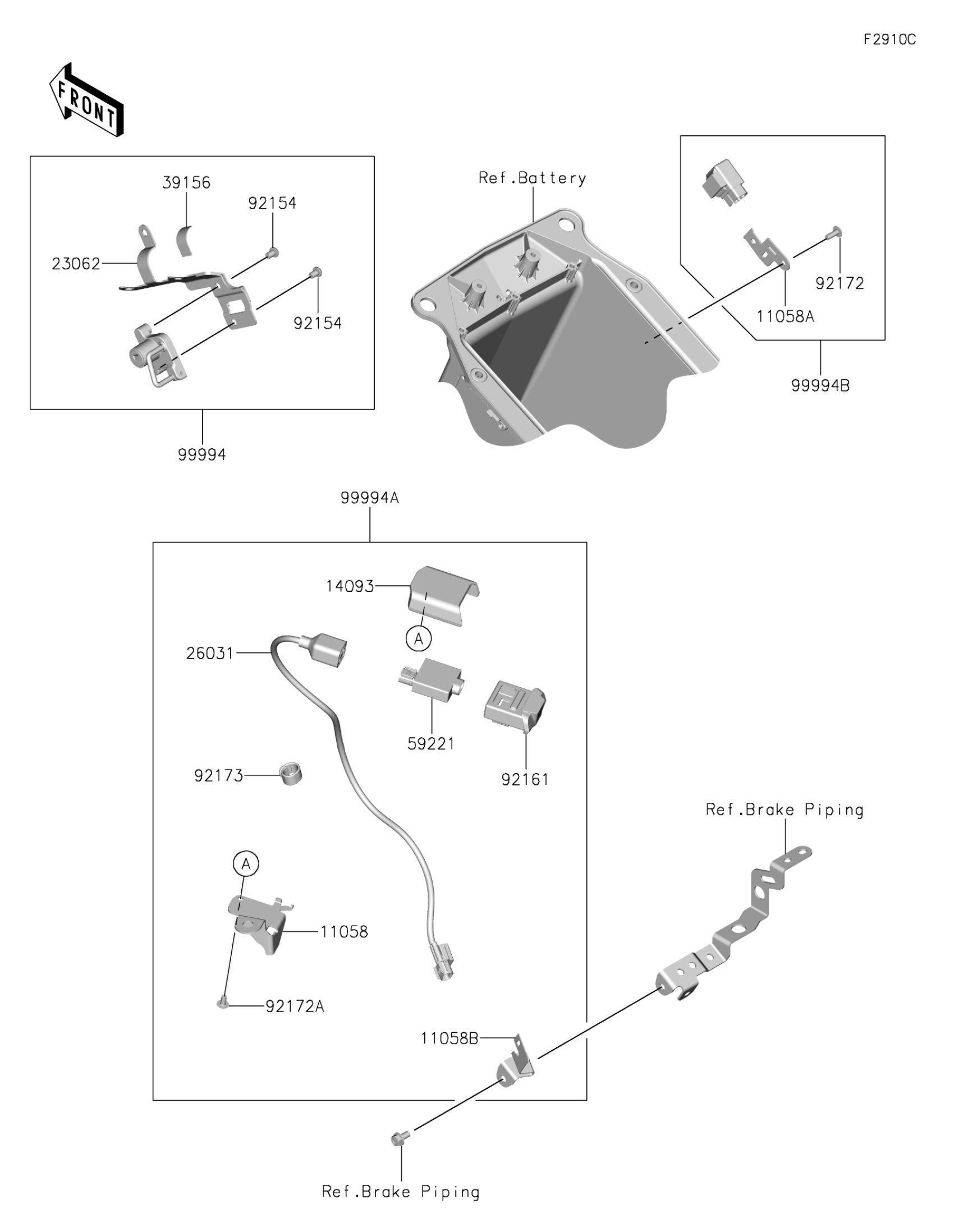

2024 Kawasaki Z e-1 ABS Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

BRACKET

11058-0922

1

$13.05

In stock

11058A

BRACKET

11058-1061

1

$9.44

In stock

11058B

BRACKET

11058-1339

1

$8.73

In stock

14093

COVER,USB

14093-1458

1

$4.80

In stock

23062

BRACKET-COMP

23062-1435

1

$18.05

In stock

26031

HARNESS

26031-4037

1

$34.88

In stock

39156

PAD

39156-2891

1

$3.85

In stock

59221

1

$87.41

In stock

92154

BOLT,ONE SIDE,6X8

92154-2948

1

$3.15

In stock

92161

DAMPER

92161-2497

1

$9.59

In stock

92172

SCREW,TAPPING,5X14

92172-0265

1

$1.20

In stock

92172A

SCREW,5X10

92172-1194

1

$1.20

In stock

92173

CLAMP

92173-2198

1

$1.32

In stock

99994

HELMET LOCK

99994-1957

1

$154.93

In stock

99994A

USB OUTLET TYPE-C

99994-1977

1

$64.58

In stock

99994B

ACC-RELAY

99994-1989

1

$18.97

In stock
