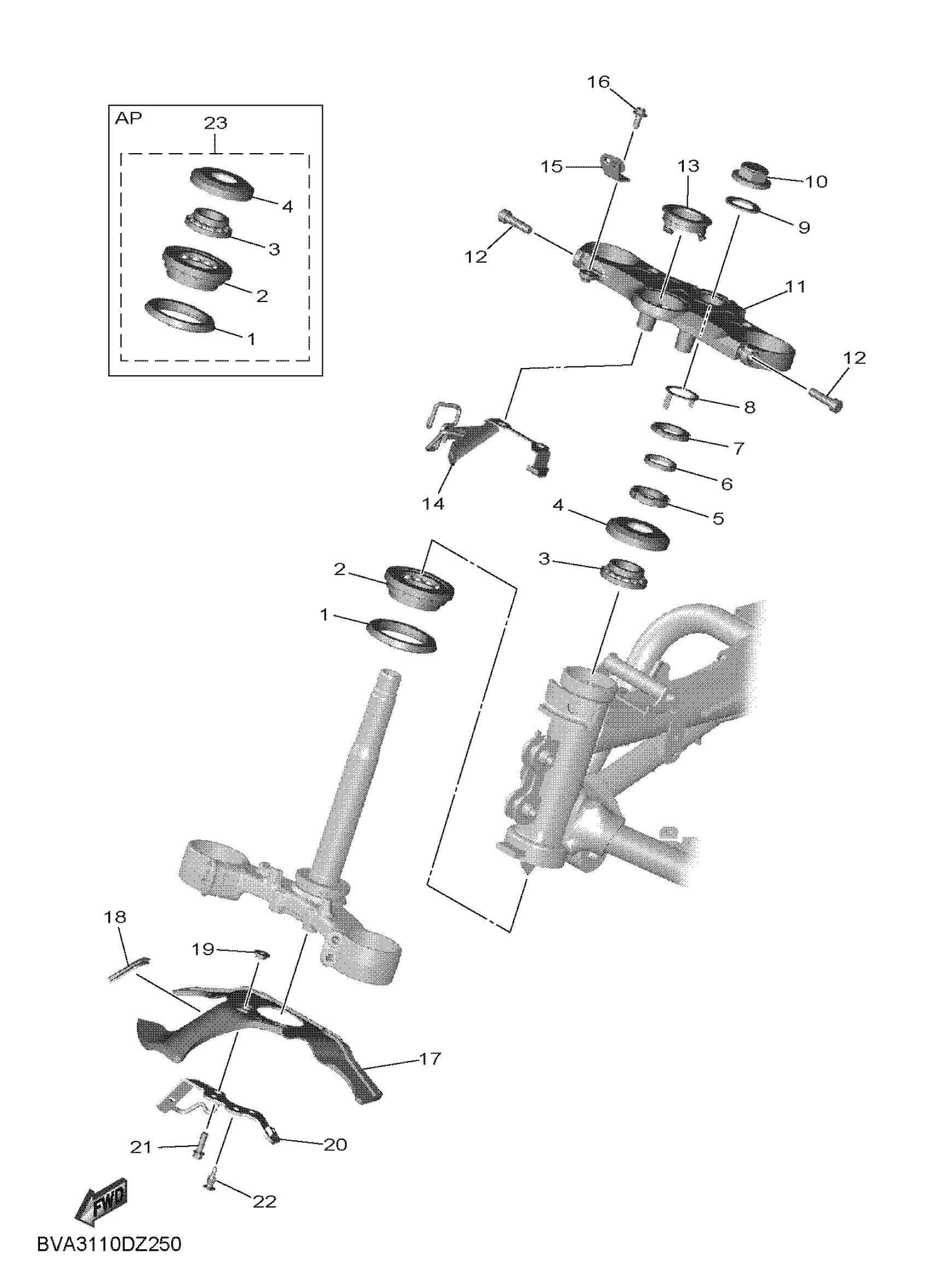

Yamaha YZFR7SL (YZFR7) BVAK 2025 STEERING Diagram

#

Description
Price

1

SEAL, STEERING

3FV-23462-00-00

$20.00

2

BEARING(3FV)

93399-99932-00

$51.86

3

BEARING(3FV)

93399-99931-00

$47.36

4

COVER, BALL RACE 2

1W1-23416-00-00

Unavailable

5

NUT

90179-25004-00

$19.41

6

WASHER, PLATE

90201-26017-00

$3.73

7

NUT(3XP)

90179-25615-00

$19.86

8

WASHER, SPECIAL

BEB-23418-00-00

$7.77

9

WASHER, PLATE

90201-22018-00

$3.82

10

NUT, SPECIAL

1RC-23393-00-00

$34.06

11

CROWN, HANDLE

BEB-23435-01-00

$100.03

12

BOLT,SOCKET

91314-08030-00

$2.14

13

CAP, SWITCH

36P-82552-00-00

$11.73

14

BRACKET 2

BEB-2334H-00-00

$36.14

15

STAY

BEB-26292-00-00

$6.23

16

BOLT, HEXAGON SOCKET HEAD

90110-06122-00

Unavailable

17

COVER, STEERING

BEB-23818-00-00

Unavailable

18

MOLD, FUEL TANK

5VN-24188-00-00

Unavailable

19

COLLAR

90387-06048-00

Unavailable

20

BRACKET, HORN

BEB-23377-00-00

Unavailable

21

BOLT, FLANGE DEEP RECESS

95E32-06020-00

Unavailable

22

RIVET

90269-06001-00

Unavailable

23

STEERING BEARING KIT

BVA-W000B-00-00

Unavailable
