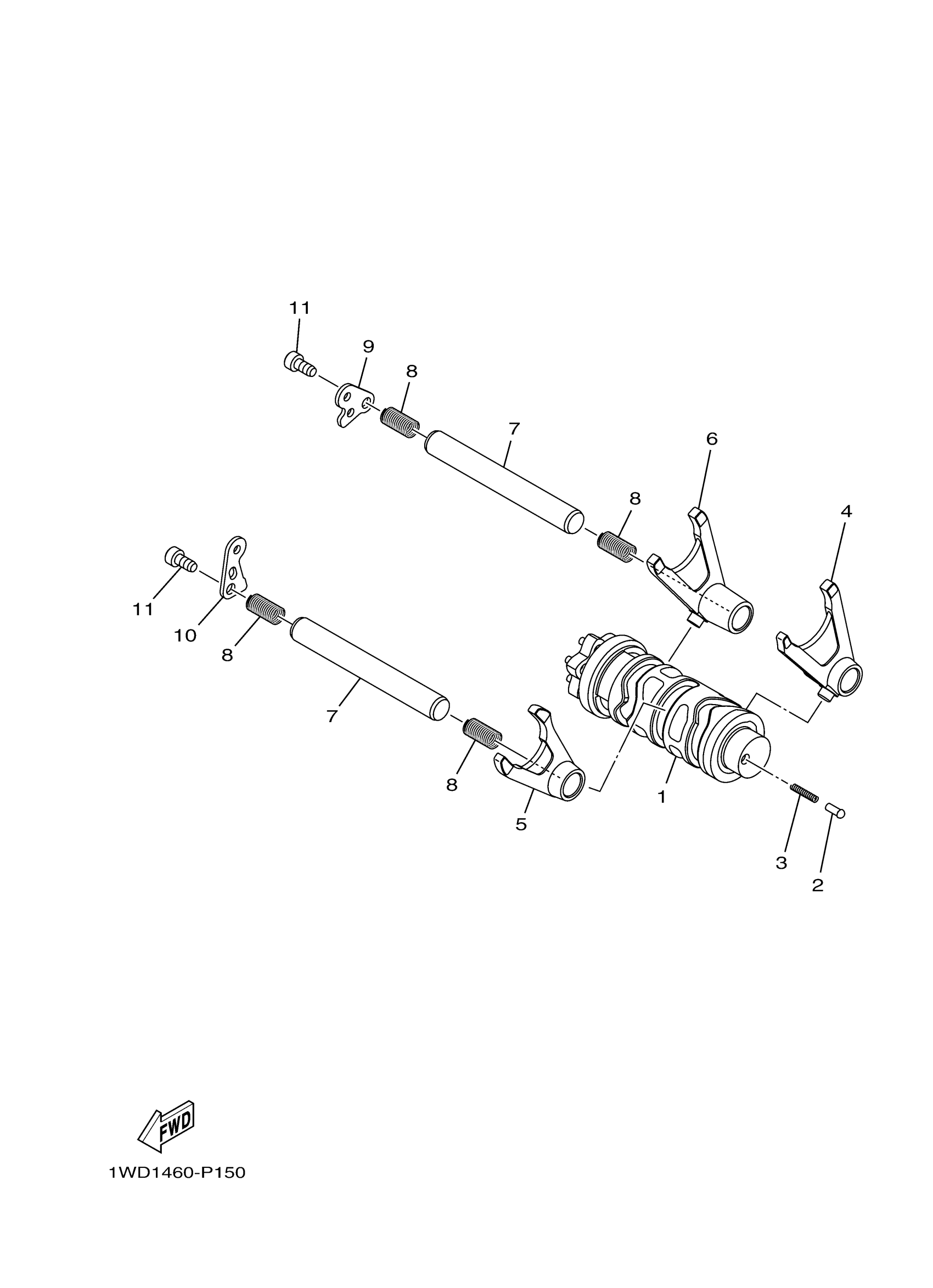

Yamaha YZFR3LL (YZFR3) B8P3 2020 SHIFT CAM & FORK Diagram

#

Description
Price

1

SHIFT CAM ASSY

1WD-E8540-10-00

$58.53

2

POINT, NEUTRAL

5TP-E8542-00-00

$0.51

3

SPRING COMPRESSION278185450000

90501-06022-00

$5.75

4

FORK, SHIFT 1

1WD-E8511-00-00

$15.06

5

FORK, SHIFT 2

1WD-E8512-00-00

$53.14

6

FORK, SHIFT 3

1WD-E8513-00-00

$16.54

7

BAR, SHIFT FORK GUIDE 1

1WD-E8531-00-00

$11.01

8

SPRING, COMPRESSION

90501-080A2-00

$6.15

9

STOPPER, SHIFT BAR

1WD-E8536-00-00

Unavailable

10

PLATE, STOPPER 2

1WD-E8562-00-00

$1.29

11

BOLT,SOCKET

91317-06012-00

$5.75
