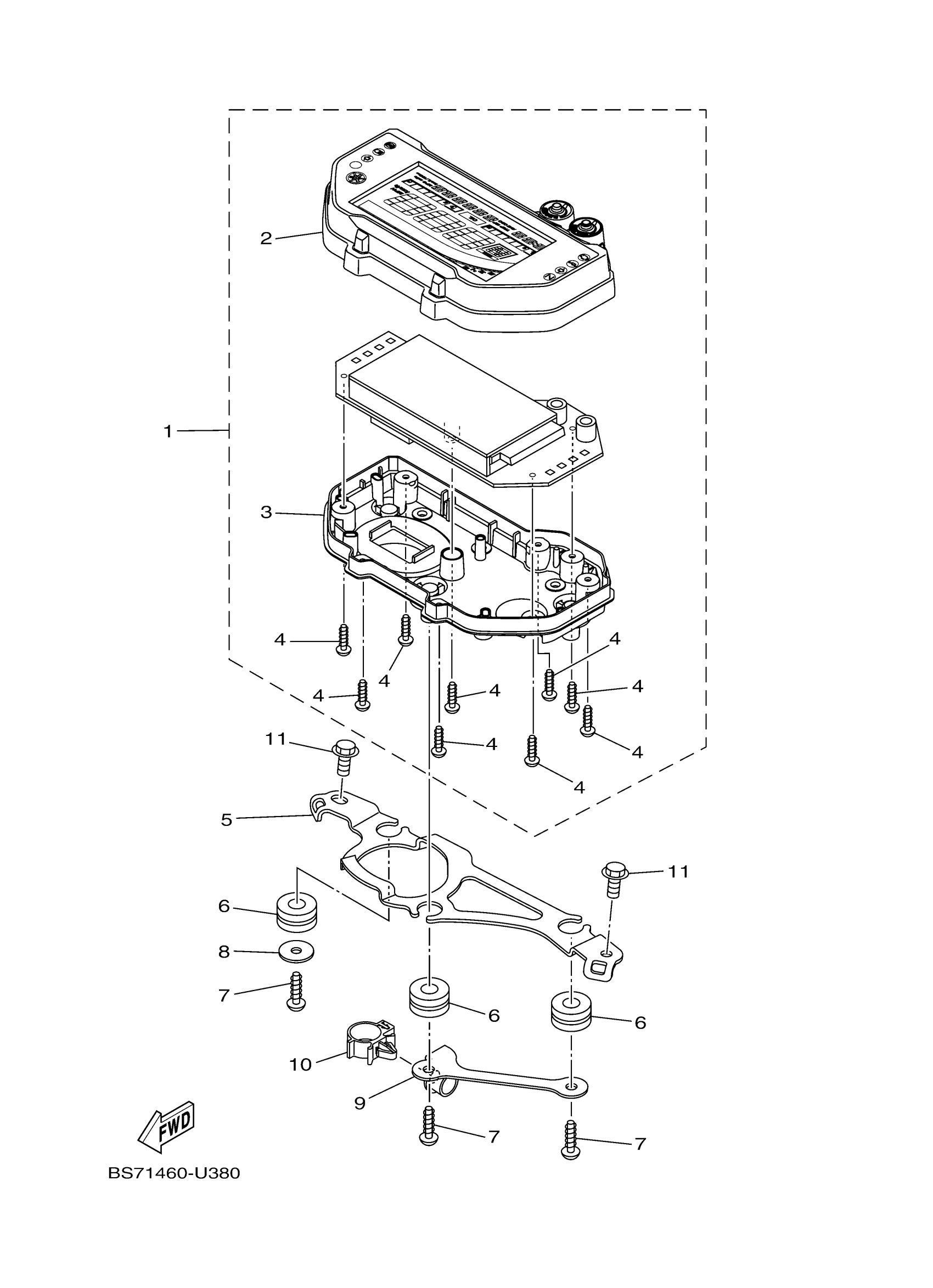

Yamaha YZFR3LL (YZFR3) B8P3 2020 METER Diagram

#

Description
Price

1

METER ASSY

B8P-H3500-02-00

Unavailable

2

CASE, SPEEDOMETER UPPER

BS7-H3571-01-00

Unavailable

3

CASE, SPEEDOMETER

BS7-H3572-01-00

$8.94

4

SCREW, TAPPING

97707-30020-00

$0.51

5

BRACKET, METER

BS7-H3519-00-00

$12.07

6

GROMET (3X3)

90480-14229-00

$5.75

7

SCREW, TAPPING

97702-50016-00

$1.85

8

WASHER, PLATE

90201-05827-00

$2.30

9

BRACKET

BS7-H350E-00-00

$9.23

10

CLAMP

90464-16006-00

$7.77

11

BOLT, FLANGE

95022-06012-00

$2.80
