2017 Yamaha R3 (YZFR3HL) Oil Pump Diagram

← All diagrams

Find the part on the Oil Pump diagram for your 2017 Yamaha R3 (YZFR3HL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

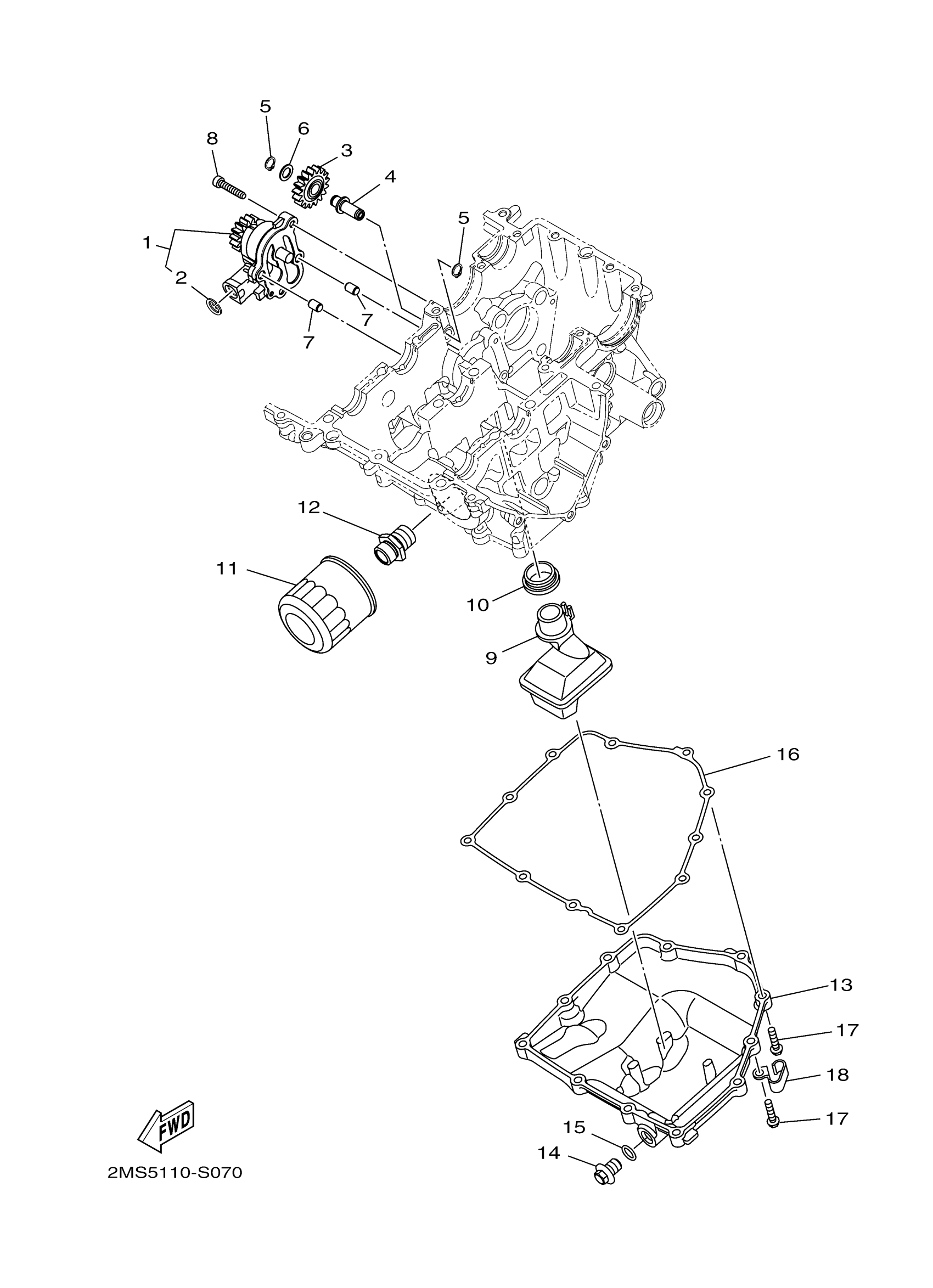

2017 Yamaha R3 (YZFR3HL) Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSY

1WD-E3300-01-00

1
Out of stock

2

CIRCLIP

99009-15500-00

1
Out of stock

3

GEAR, OIL PUMP IDLE

1WD-E3341-00-00

1
Out of stock

4

SHAFT, IDLE GEAR

1WD-E3342-00-00

1
Out of stock

5

CIRCLIP(10W)

99009-10400-00

1
Out of stock

6

WASHER, PLAIN(735)

90201-10119-00

—
Out of stock

7

PIN, DOWEL

99530-08012-00

1
Out of stock

8

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

1
Out of stock

9

STRAINER HOUSING ASSY

1WD-E3410-00-00

1
Out of stock

10

SEAL, OIL STRAINER

1WD-E3415-00-00

1
Out of stock

11

ELEMENT ASSY, OIL CLEANER

1WD-E3440-21-00

1
Out of stock

12

BOLT, UNION

90401-20008-00

1
Out of stock

13

COVER, STRAINER

1WD-E3417-01-00

1
Out of stock

14

PLUG, STRAIGHT SCREW (5MX1)

90340-12808-00

1
Out of stock

15

GASKET

812-11198-00-00

1
Out of stock

16

GASKET, STRAINER COVER

1WD-E3414-00-00

—
Out of stock

17

BOLT, FLANGE

95022-06025-00

—
Out of stock

18

CLAMP (5D91)

90462-08810-00

—
Out of stock
