2017 Yamaha R3 (YZFR3HL) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 2017 Yamaha R3 (YZFR3HL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

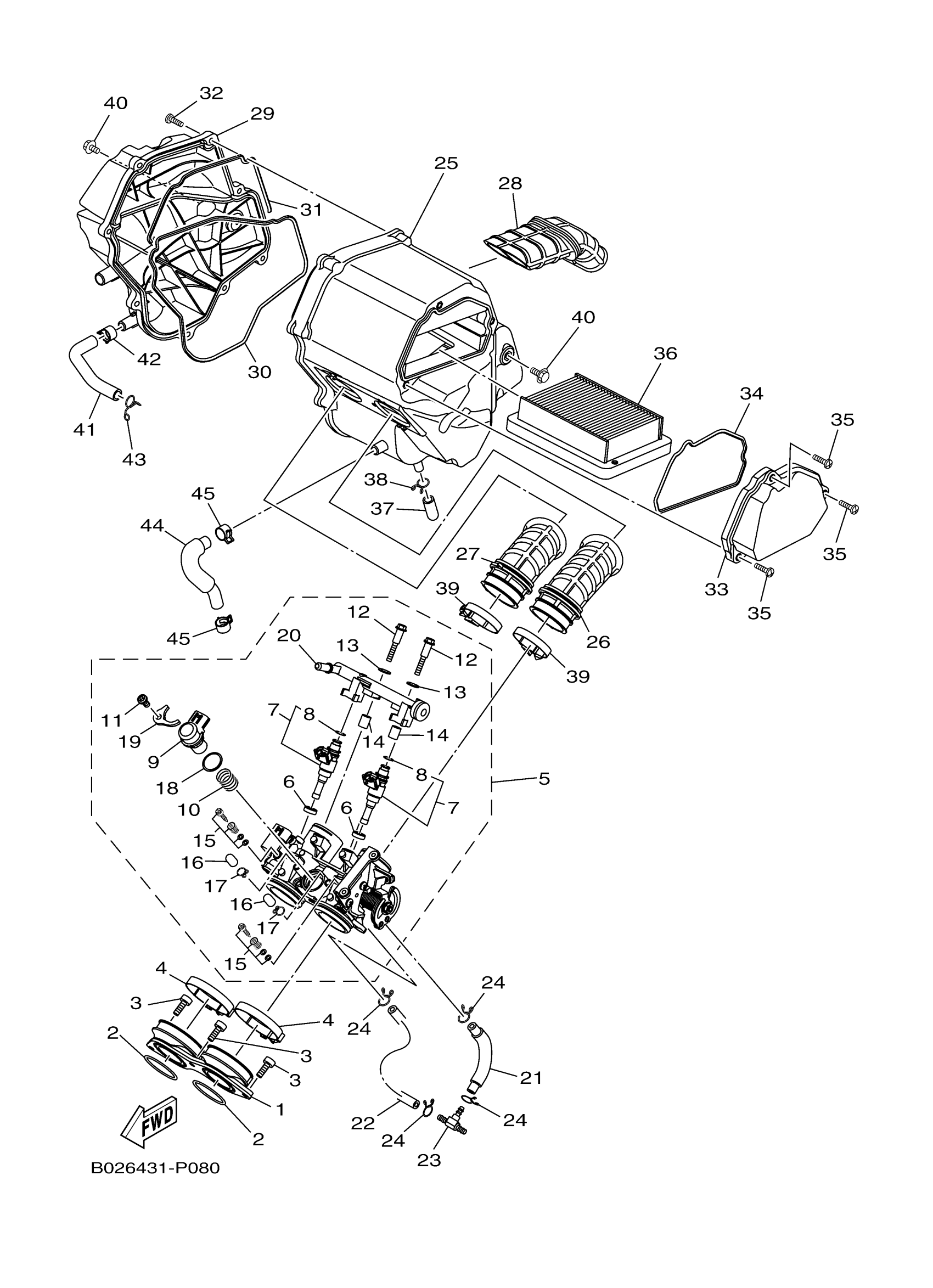

2017 Yamaha R3 (YZFR3HL) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR 1

2MS-E3586-00-00

1

$57.26

In stock

2

O-RING(1FN)

93210-39700-00

1

$9.69

In stock

3

BOLT(3MA)

91312-06016-00

1
Out of stock

4

HOSE CLAMP ASSY

90450-55804-00

—

$2.65

In stock

5

THROTTLE BODY ASSY

2MS-E3750-01-00

1

$378.57

In stock

6

GASKET

1WD-E3556-00-00

1

$2.65

In stock

7

INJECTOR

1WD-E3761-00-00

1

$63.35

In stock

8

O-RING

5PS-14147-00-00

1

$10.95

In stock

9

STEPPING MOTOR

1WS-85801-02-00

1

$153.97

In stock

10

SPRING, PLUNGER

1WS-14335-00-00

—

$9.52

In stock

11

SCREW, PAN

98517-06012-00

1

$3.14

In stock

12

BOLT 1

1WD-E3573-00-00

1

$1.22

In stock

13

WASHER

8GL-13571-00-00

1

$3.37

In stock

14

COLLAR

8HG-14534-00-00

1

$27.02

In stock

15

AIR SCREW SET

5JW-14104-00-00

—

$14.51

In stock

16

CAP

895-14169-00-00

—

$4.02

In stock

17

CLIP, PIPE

8A7-14139-00-00

—

$6.80

In stock

18

O-RING

54P-E416A-00-00

—

$6.43

In stock

19

. PLATE

1WD-E4243-00-00

1

$4.18

In stock

20

PIPE

1WD-E3938-00-00

—

$71.99

In stock

21

PIPE (2MS1)

2MS-E4465-00-00

—
Out of stock

22

PIPE (2MS1)

2MS-E4466-00-00

—

$10.66

In stock

23

WAY 3

90413-06031-00

—

$8.22

In stock

24

CLIP

90467-090A2-00

—

$2.51

In stock

25

CASE, AIR CLEANER 1

1WD-E4411-00-00

1

$78.98

In stock

26

FUNNEL, AIR

2MS-E4469-00-00

1
Out of stock

27

FUNNEL 2

2MS-E446C-00-00

1
Out of stock

28

DUCT

1WD-E4437-00-00

1
Out of stock

29

CAP, CLEANER CASE 1

2MS-E4412-00-00

1
Out of stock

30

SEAL

1WD-E4452-00-00

—

$2.55

In stock

31

SEAL

1WD-E4457-00-00

1

$0.68

In stock

32

SCREW, TRUSS TAP.

97707-50025-00

—

$6.18

In stock

33

CAP, CLEANER CASE 2

1WD-E4422-00-00

—

$6.43

In stock

34

SEAL

1WD-E4462-00-00

—

$9.94

In stock

35

SCREW, BIND

98902-05020-00

—

$1.43

In stock

36

ELEMENT, AIR CLEANER

1WD-E4451-00-00

—

$24.54

In stock

37

PIPE, DRAIN

5TL-E443E-00-00

—
Out of stock

38

CLIP

90467-110A3-00

—

$4.23

In stock

39

BAND

54P-E3474-00-00

—

$9.94

In stock

40

BOLT, FLANGE

95812-06010-00

—

$2.75

In stock

41

HOSE, AIR

1WD-E3543-01-00

—

$2.77

In stock

42

CLIP

90467-13802-00

—

$2.62

In stock

43

CLIP (4X4)

90467-12052-00

—

$6.57

In stock

44

PIPE, BREATHER

2MS-E5373-01-00

—

$3.75

In stock

45

CLIP

90467-13802-00

—

$2.62

In stock
