2017 Yamaha R3 (YZFR3HL) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2017 Yamaha R3 (YZFR3HL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

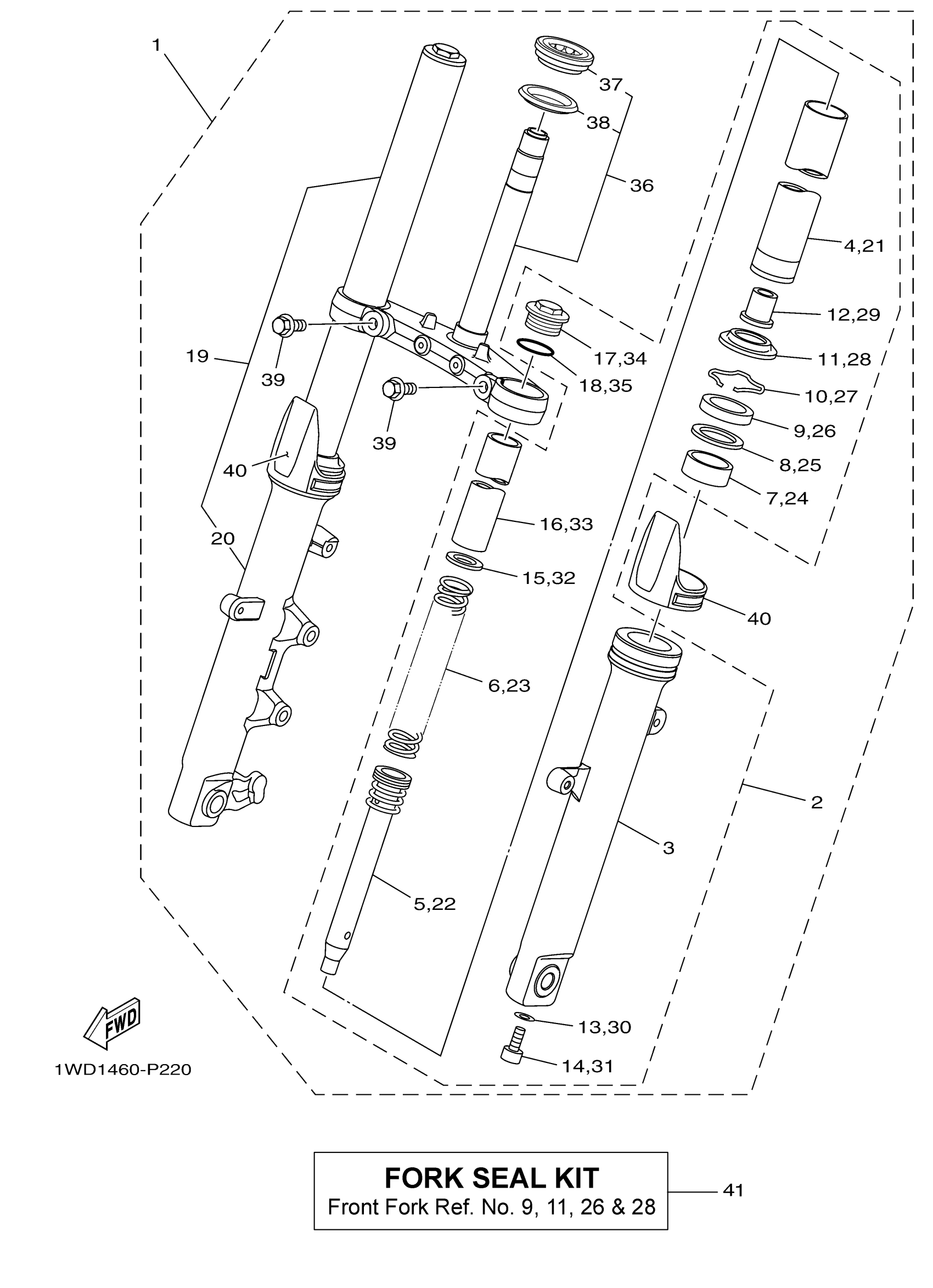

2017 Yamaha R3 (YZFR3HL) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSY

1WD-F3100-00-00

1
Out of stock

2

FRONT FORK ASSY (L.H)

1WD-F3102-00-00

1
Out of stock

3

.. TUBE, OUTER (LH)

1WD-F3126-00-00

1
Out of stock

4

INNER TUBE COMP.1

1WD-F3110-00-00

1
Out of stock

5

.. CYLINDER COMP, FRONT FORK

1WD-F3170-00-00

1
Out of stock

6

.. SPRING, FRONT FORK

1WD-F3141-00-00

1
Out of stock

7

METAL, SLIDE 1

45P-F3125-00-00

1
Out of stock

8

WASHER, OIL SEAL

45P-F3146-00-00

1
Out of stock

9

OIL SEAL

45P-F3145-00-00

1
Out of stock

10

CLIP, OIL SEAL

45P-F3156-00-00

1
Out of stock

11

SEAL, DUST

45P-F3144-00-00

1
Out of stock

12

SPINDLE, TAPER

1WD-F3173-00-00

1
Out of stock

13

GASKET

509-23158-L0-00

1

$14.34

In stock

14

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

1

$7.65

In stock

15

.. WASHER, SPRING UPPER

45P-F3149-00-00

1
Out of stock

16

.. SPACER

1WD-F3118-00-00

1
Out of stock

17

.. BOLT, CAP

45P-F3111-00-00

1
Out of stock

18

O-RING

45P-F3188-00-00

—
Out of stock

19

FRONT FORK ASSY (R.H)

1WD-F3103-00-00

—
Out of stock

20

.. TUBE, OUTER 2

1WD-F3136-00-00

1
Out of stock

21

INNER TUBE COMP.1

1WD-F3110-00-00

1
Out of stock

22

.. CYLINDER COMP, FRONT FORK

1WD-F3170-00-00

1
Out of stock

23

.. SPRING, FRONT FORK

1WD-F3141-00-00

1
Out of stock

24

METAL, SLIDE 1

45P-F3125-00-00

1
Out of stock

25

WASHER, OIL SEAL

45P-F3146-00-00

1
Out of stock

26

OIL SEAL

45P-F3145-00-00

1
Out of stock

27

CLIP, OIL SEAL

45P-F3156-00-00

1
Out of stock

28

SEAL, DUST

45P-F3144-00-00

1
Out of stock

29

SPINDLE, TAPER

1WD-F3173-00-00

1
Out of stock

30

GASKET

509-23158-L0-00

1

$14.34

In stock

31

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

1

$7.65

In stock

32

.. WASHER, SPRING UPPER

45P-F3149-00-00

1
Out of stock

33

.. SPACER

1WD-F3118-00-00

1
Out of stock

34

.. BOLT, CAP

45P-F3111-00-00

1
Out of stock

35

O-RING

45P-F3188-00-00

—
Out of stock

36

UNDER BRACKET COMP.

1WD-F3340-00-00

—
Out of stock

37

BEARING(3FV)

93399-99932-00

—

$55.01

In stock

38

SEAL, STEERING

3FV-23462-00-00

—

$21.37

In stock

39

BOLT 1

45P-F3346-00-00

—
Out of stock

40

COVER

1WS-2331G-00-00

—

$7.72

In stock

41

FORK SEAL KIT (TWO FORKS)

2MS-W003B-00-00

—
Out of stock
