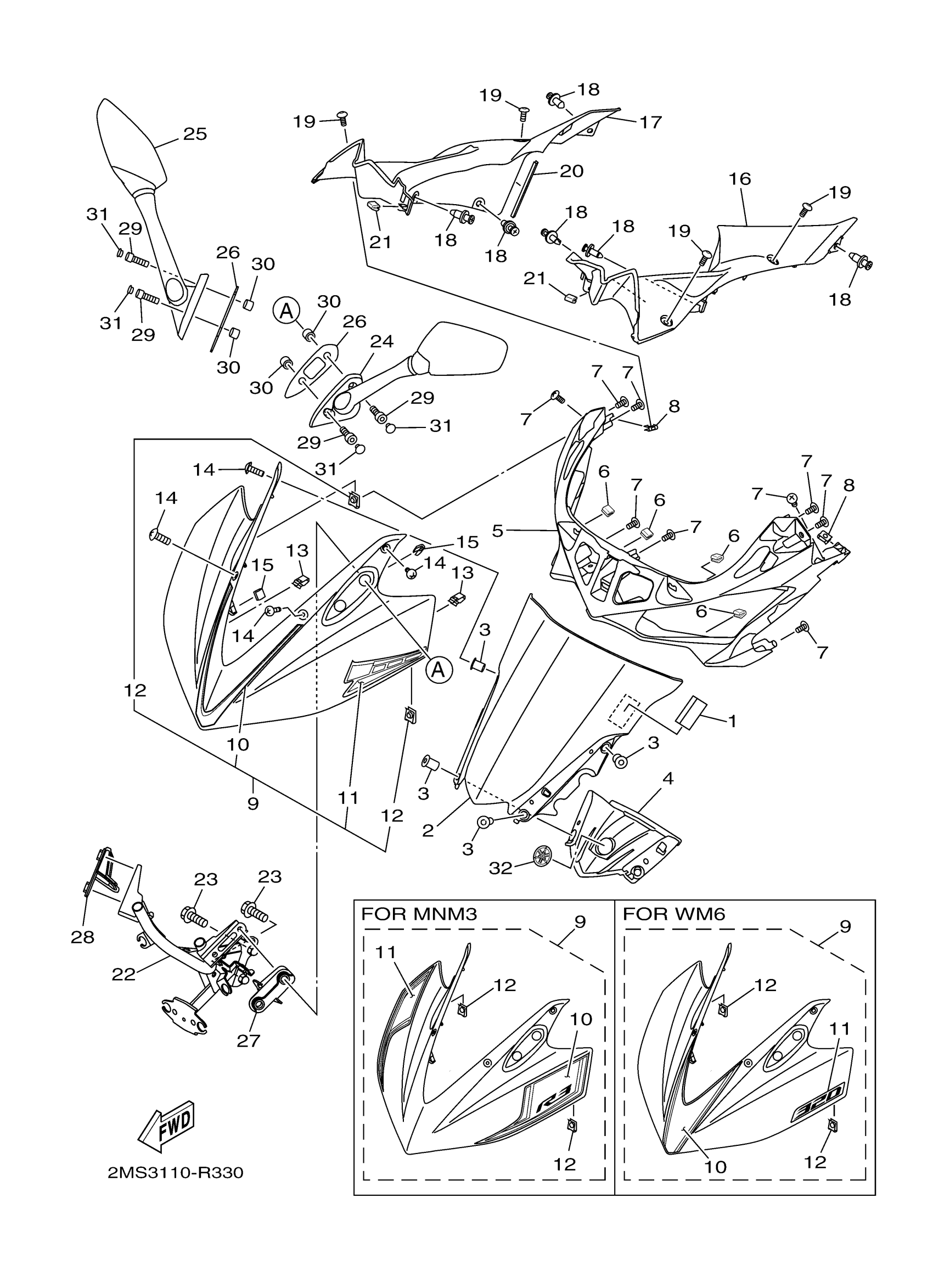

Yamaha YZFR3GW (YZFR3) 2MS31 2016 WINDSHIELD Diagram

#

Description
Price

1

LABEL, NOTICE WINDSHIELD 1

1WD-F815K-10-00

$0.97

2

WINDSHIELD

1WD-F8381-00-00

$77.05

3

NUT(1KT)

90179-05523-00

$4.33

4

COVER, METER

1WD-H3559-00-00

$11.39

5

BODY, FRONT UPPER 1

1WD-F835G-00-00

$31.11

6

TRIM

1WD-F8376-00-00

$2.30

7

SCREW, TAPPING

97702-50016-00

$1.85

8

NUT, SPRING

90183-050A7-00

$2.44

9

BODY COWLING SUB ASSY

1WD-XF83F-10-P4

Unavailable

10

GRAPHIC 1

2MS-F8391-71-00

Unavailable

11

GRAPHIC 2

1WD-F8392-70-00

$2.63

12

NUT, SPRING(1YT)

90183-05042-00

$0.86

13

HOOK

44D-F8379-00-00

$4.81

14

SCREW, ROUND HEAD(1UX)

90150-05023-00

$2.60

15

TRIM

1WD-F8376-00-00

$2.30

16

PANEL, INNER 4

1WD-F836N-00-00

Unavailable

17

PANEL, INNER 5

1WD-F836R-00-00

Unavailable

18

RIVET

90269-06081-00

Unavailable

19

BOLT

90111-05003-00

Unavailable

20

MOLD

1WD-F1278-00-00

Unavailable

21

TRIM

1WD-F8376-00-00

$2.30

22

STAY 1

1WD-F8356-00-00

Unavailable

23

BOLT, FLANGE

95817-08035-00

Unavailable

24

REAR VIEW MIRROR ASSY (LEFT)

1WD-F6280-10-00

Unavailable

25

REAR VIEW MIRROR ASSY (RIGHT)

1WD-F6290-10-00

Unavailable

26

PLATE, RUBBER 1

1WD-F8483-00-00

Unavailable

27

PLATE, RUBBER 2

1WD-F8484-00-00

Unavailable

28

PLATE, RUBBER 3

1WD-F8485-00-00

Unavailable

29

BOLT,SOCKET

91317-06025-00

Unavailable

30

COLLAR

90387-068C2-00

Unavailable

31

PLUG

90338-05010-00

Unavailable

32

TUNING FORK MARK

1PA-F836B-01-00

Unavailable
