2016 Yamaha YZFR3 (YZFR3GW) Intake Diagram

← All diagrams

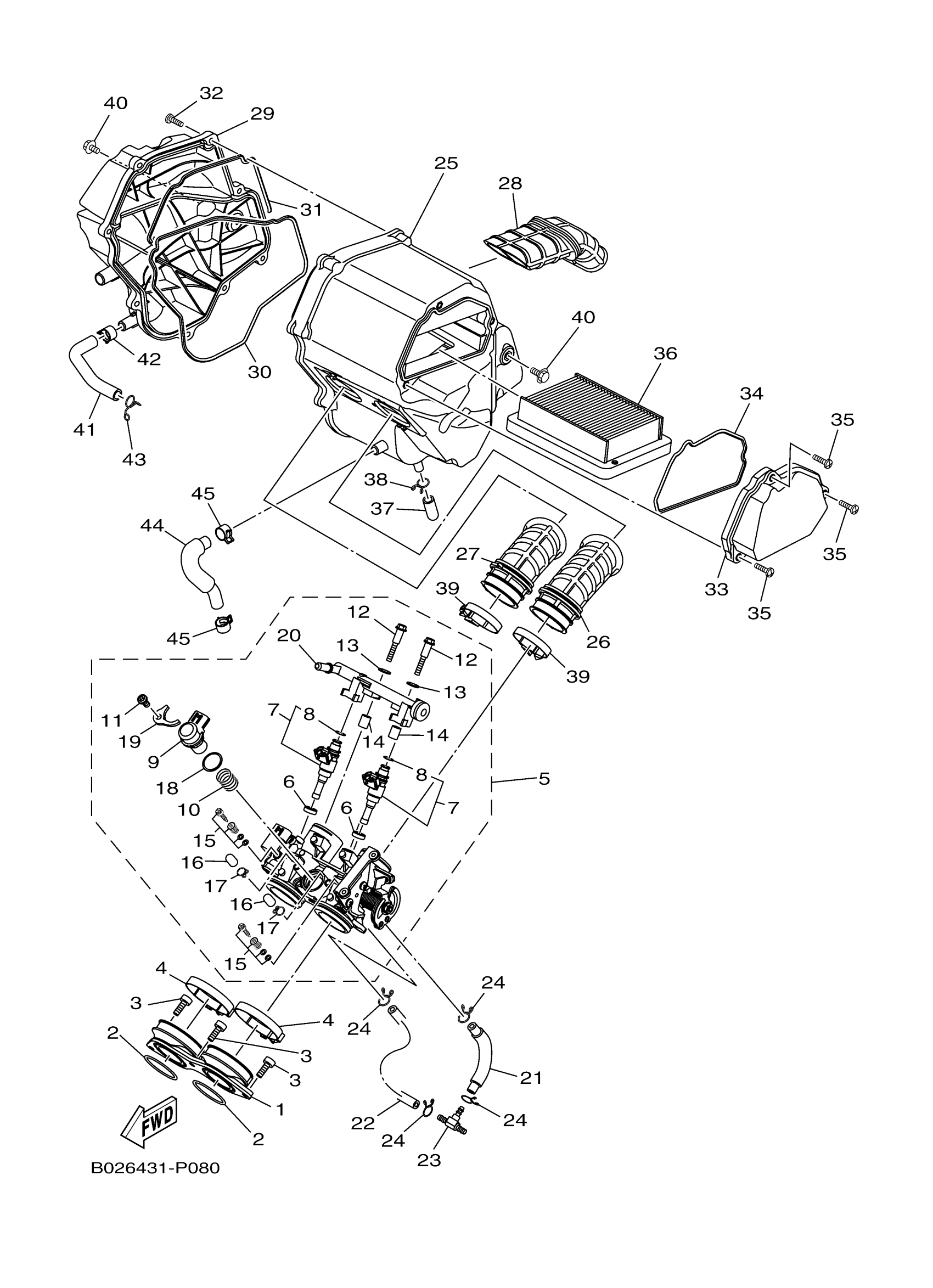

Find the part on the Intake diagram for your 2016 Yamaha YZFR3 (YZFR3GW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Yamaha YZFR3 (YZFR3GW) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR 1

2MS-E3586-00-00

1
Out of stock

2

O-RING(1FN)

93210-39700-00

1
Out of stock

3

BOLT(3MA)

91312-06016-00

1
Out of stock

4

HOSE CLAMP ASSY

90450-55804-00

—
Out of stock

5

THROTTLE BODY ASSY

2MS-E3750-01-00

1
Out of stock

6

GASKET

1WD-E3556-00-00

1
Out of stock

7

INJECTOR

1WD-E3761-00-00

1
Out of stock

8

O-RING

5PS-14147-00-00

1
Out of stock

9

STEPPING MOTOR

1WS-85801-02-00

1
Out of stock

10

SPRING, PLUNGER

1WS-14335-00-00

—
Out of stock

11

SCREW, PAN

98517-06012-00

1
Out of stock

12

BOLT 1

1WD-E3573-00-00

1
Out of stock

13

WASHER

8GL-13571-00-00

1
Out of stock

14

COLLAR

8HG-14534-00-00

1
Out of stock

15

AIR SCREW SET

5JW-14104-00-00

—
Out of stock

16

CAP

895-14169-00-00

—
Out of stock

17

CLIP, PIPE

8A7-14139-00-00

—
Out of stock

18

O-RING

54P-E416A-00-00

—
Out of stock

19

. PLATE

1WD-E4243-00-00

1
Out of stock

20

PIPE

1WD-E3938-00-00

—
Out of stock

21

PIPE (2MS1)

2MS-E4465-00-00

—
Out of stock

22

PIPE (2MS1)

2MS-E4466-00-00

—
Out of stock

23

WAY 3

90413-06031-00

—
Out of stock

24

CLIP

90467-090A2-00

—
Out of stock

25

CASE, AIR CLEANER 1

1WD-E4411-00-00

1
Out of stock

26

FUNNEL, AIR

2MS-E4469-00-00

1
Out of stock

27

FUNNEL 2

2MS-E446C-00-00

1
Out of stock

28

DUCT

1WD-E4437-00-00

1
Out of stock

29

CAP, CLEANER CASE 1

2MS-E4412-00-00

1
Out of stock

30

SEAL

1WD-E4452-00-00

—
Out of stock

31

SEAL

1WD-E4457-00-00

1
Out of stock

32

SCREW, TRUSS TAP.

97707-50025-00

—
Out of stock

33

CAP, CLEANER CASE 2

1WD-E4422-00-00

—
Out of stock

34

SEAL

1WD-E4462-00-00

—
Out of stock

35

SCREW, BIND

98902-05020-00

—
Out of stock

36

ELEMENT, AIR CLEANER

1WD-E4451-00-00

—
Out of stock

37

PIPE, DRAIN

5TL-E443E-00-00

—
Out of stock

38

CLIP

90467-110A3-00

—
Out of stock

39

BAND

54P-E3474-00-00

—
Out of stock

40

BOLT, FLANGE

95812-06010-00

—
Out of stock

41

HOSE, AIR

1WD-E3543-01-00

—
Out of stock

42

CLIP

90467-13802-00

—
Out of stock

43

CLIP (4X4)

90467-12052-00

—
Out of stock

44

PIPE, BREATHER

2MS-E5373-01-00

—
Out of stock

45

CLIP

90467-13802-00

—
Out of stock
