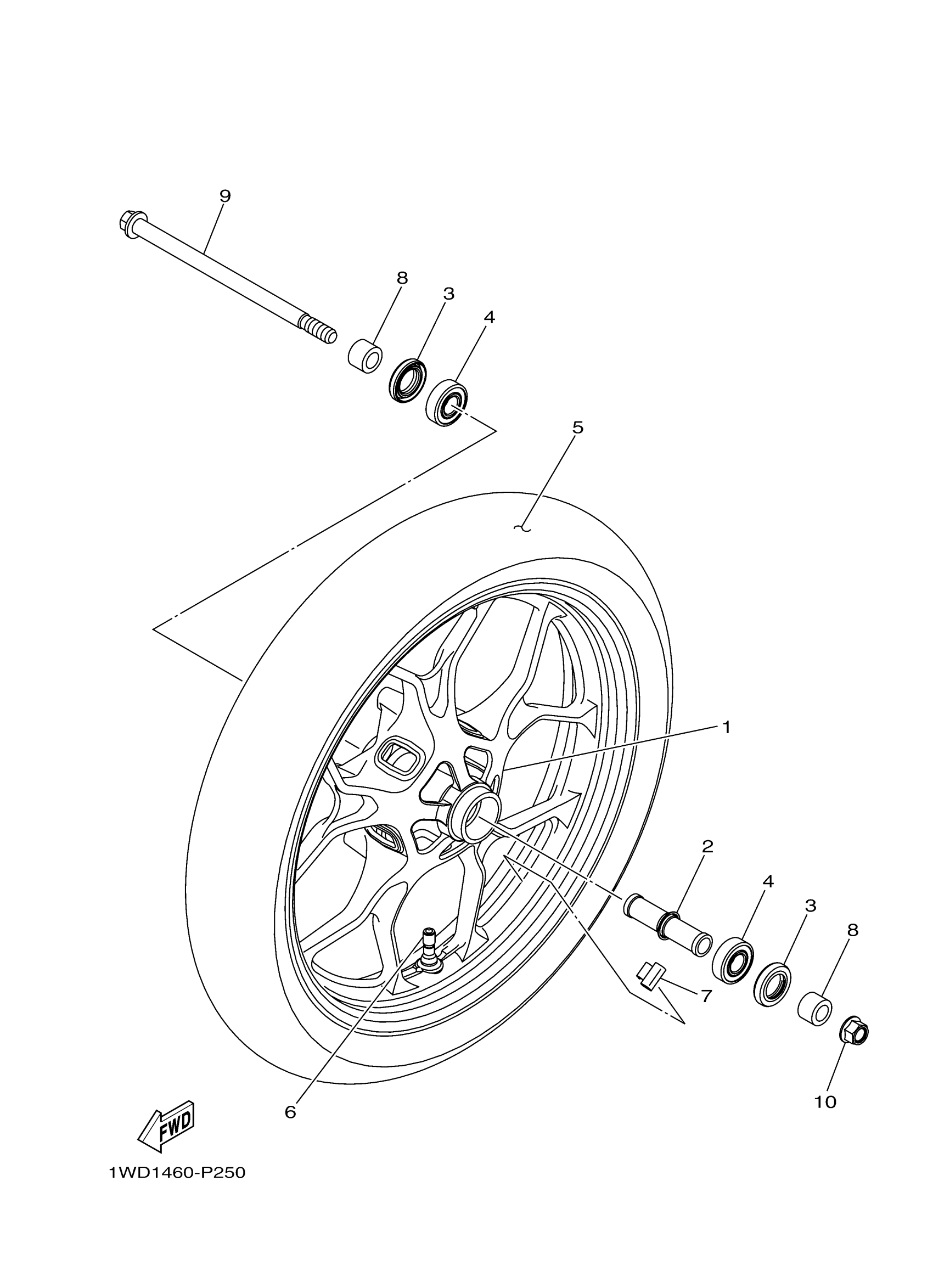

Yamaha YZFR3FR (YZFR3) 2MS11 2015 FRONT WHEEL Diagram

#

Description
Price

1

CAST WHEEL, FRONT

BS7-F5168-00-2X

Unavailable

2

COLLAR ASSY.

1WD-F510C-01-00

$11.86

3

SEAL,OIL

93106-26005-00

$6.26

4

BEARING

93306-302X4-00

$46.99

5

TIRE (110/70-17M/C 54H) (2YPC)

94111-17808-00

$138.90

6

VALVE, RIM (TR413)939000002200

93900-00828-00

$3.67

7

BALANCER, WHEEL

5MT-25398-00-00

$14.51

7

BALANCER, WHEEL

5MT-25398-10-00

$14.35

7

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

8

COLLAR, SPROCKET A

1PA-F5386-00-00

$18.52

9

AXLE, WHEEL

1WD-25181-00-00

$35.56

10

NUT, U FLANGE

95602-14200-00

$9.25
