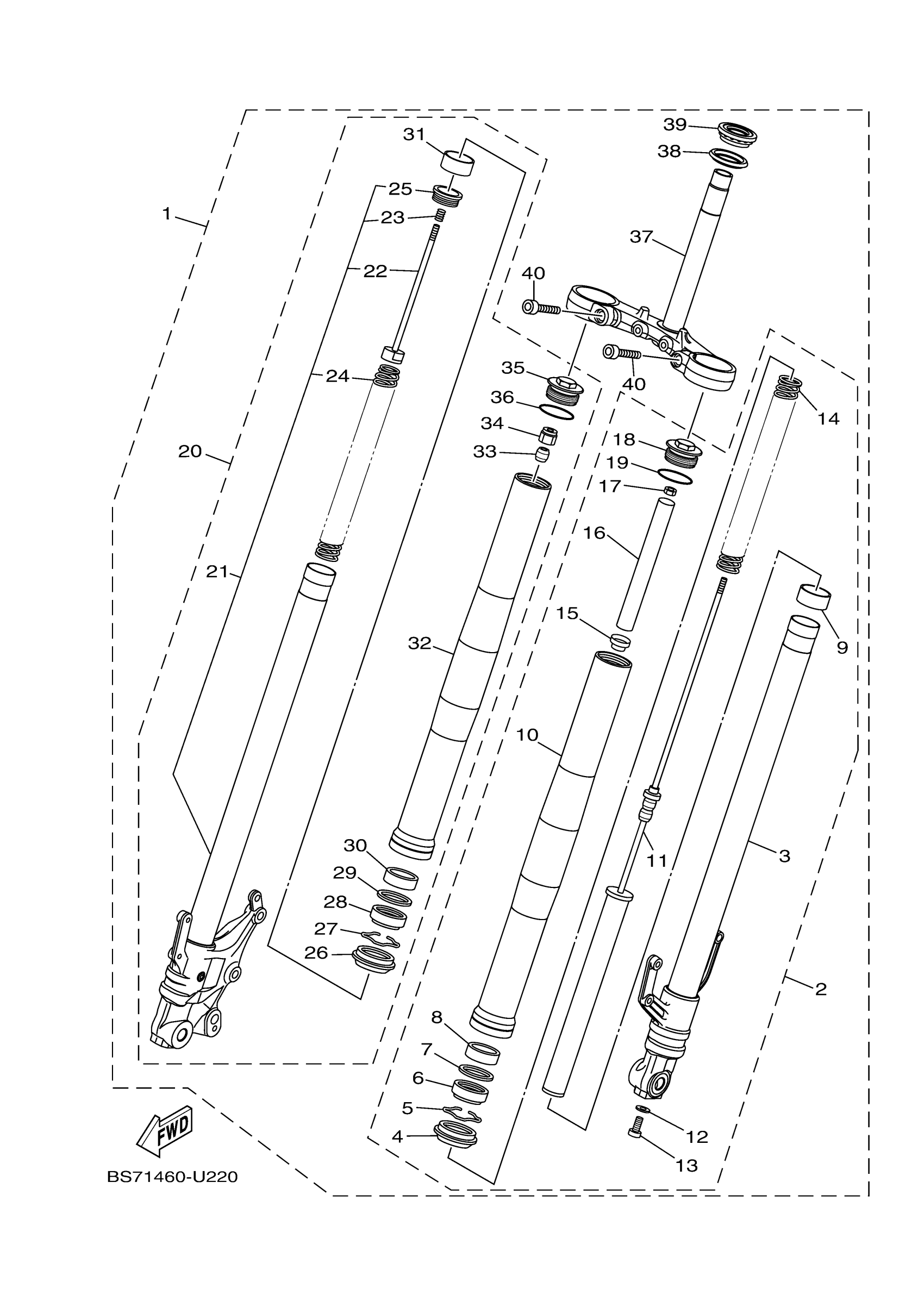

Yamaha YZFR3APP (YZFR3 ABS) BVJA 2023 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY

B5L-F3100-10-00

$884.40

2

FRONT FORK ASSY (L

BS7-F3102-10-00

$453.73

3

INNER TUBE COMP.1

BS7-F3110-00-00

$156.59

4

SEAL, DUST

B48-F3144-00-00

$22.96

5

RING, SNAP

3R4-23153-00-00

$7.03

6

OIL SEAL (BK61)

BK6-F3145-00-00

$6.66

7

WASHER, SPRING UPPER

31A-23149-31-00

$7.35

8

METAL, SLIDE

31A-23125-31-00

$28.89

9

PISTON, FRONT FORK (BK61)

BK6-F3171-00-00

$7.81

10

TUBE, OUTER (L.H)

B9T-F3126-00-00

Unavailable

11

CYLINDER COMP., FRONT FORK

BS7-F3170-00-00

$166.40

12

GASKET

2BU-F3158-00-00

$3.65

13

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$7.13

14

SPRING, FRONT FORK

BS7-F3141-00-00

Unavailable

15

GUIDE, SPRING (BK61)

BK6-F3117-00-00

$4.51

16

SPACER

BS7-F3118-00-00

Unavailable

17

NUT (BK61)

BK6-F3357-00-00

Unavailable

18

BOLT, CAP

BS7-F3111-00-00

Unavailable

19

O-RING

4V4-23188-L1-00

Unavailable

20

FRONT FORK ASSY (R

B5L-F3103-10-00

Unavailable

21

INNER TUBE COMP.2

B5L-F3120-00-00

Unavailable

22

ROD COMP. (BK61)

BK6-F330G-00-00

Unavailable

23

SPRING, SHOCK ABSORBER 2 (BK61

3AH-22222-00-00

Unavailable

24

SPRING, FRONT FORK

BS7-F3141-00-00

Unavailable

25

... CAP

BK6-F319U-00-00

$11.07

26

SEAL, DUST

B48-F3144-00-00

$22.96

27

RING, SNAP

3R4-23153-00-00

$7.03

28

OIL SEAL (BK61)

BK6-F3145-00-00

$6.66

29

WASHER, SPRING UPPER

31A-23149-31-00

$7.35

30

METAL, SLIDE

31A-23125-31-00

$28.89

31

PISTON, FRONT FORK (BK61)

BK6-F3171-00-00

$7.81

32

TUBE, OUTER (L.H)

B9T-F3126-00-00

Unavailable

33

BUMP, STOP (BK61)

BK6-F332K-00-00

Unavailable

34

NUT, SPECIAL (BK61)

BK6-F3393-00-00

Unavailable

35

BOLT, CAP

BS7-F3111-00-00

Unavailable

36

O-RING

4V4-23188-L1-00

Unavailable

37

UNDER BRACKET COMP.

BS7-F3340-00-00

Unavailable

38

SEAL, STEERING

3FV-23462-00-00

Unavailable

39

BEARING(3FV)

93399-99932-00

Unavailable

40

BOLT

91312-10040-00

Unavailable
