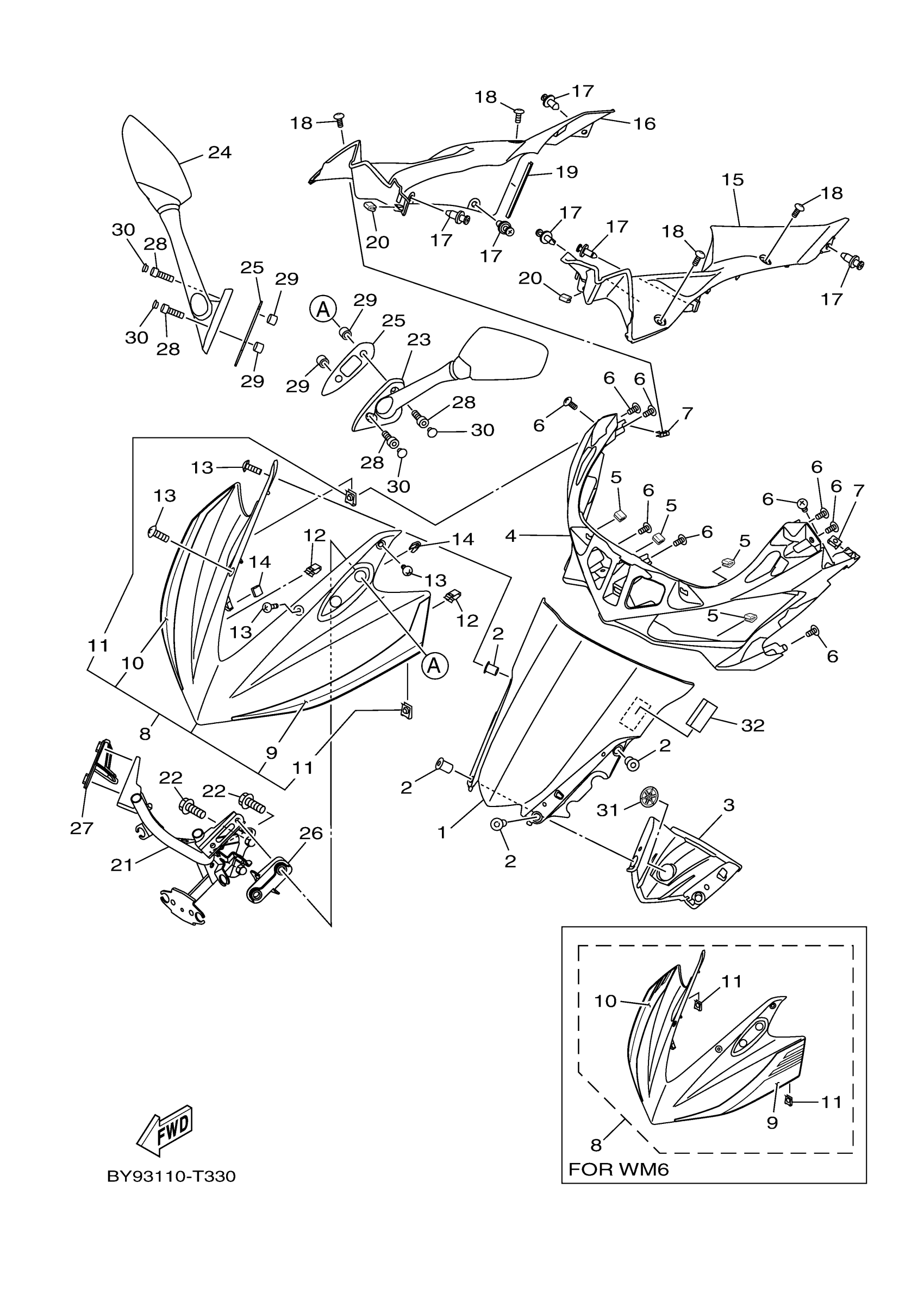

Find the part on the Windshield diagram for your 2018 Yamaha YZFR3 (YZFR3AJW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Yamaha YZFR3 (YZFR3AJW) Windshield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WINDSHIELD

1WD-F8381-00-00

1
Out of stock

2

NUT(1KT)

90179-05523-00

1
Out of stock

3

COVER, METER

1WD-H3559-00-00

1
Out of stock

4

BODY, FRONT UPPER 1

1WD-F835G-00-00

1
Out of stock

5

TRIM

1WD-F8376-00-00

1
Out of stock

6

SCREW, TAPPING

97702-50016-00

1
Out of stock

7

NUT, SPRING

90183-050A7-00

1
Out of stock

8

BODY COWLING SUB ASSY

1WD-XF83F-40-P0

—
Out of stock

9

GRAPHIC 1

1WD-F8391-F0-00

1
Out of stock

10

GRAPHIC 2

1WD-F8392-F1-00

1
Out of stock

11

NUT, SPRING(1YT)

90183-05042-00

1
Out of stock

12

HOOK

44D-F8379-00-00

1
Out of stock

13

SCREW, ROUND HEAD(1UX)

90150-05023-00

1
Out of stock

14

TRIM

1WD-F8376-00-00

1
Out of stock

15

PANEL, INNER 4

1WD-F836N-00-00

1
Out of stock

16

PANEL, INNER 5

1WD-F836R-00-00

—
Out of stock

17

RIVET

90269-06081-00

—
Out of stock

18

BOLT

90111-05003-00

—
Out of stock

19

MOLD

1WD-F1278-00-00

—
Out of stock

20

TRIM

1WD-F8376-00-00

1
Out of stock

21

STAY 1

1WD-F8356-00-00

—
Out of stock

22

BOLT, FLANGE

95817-08035-00

—
Out of stock

23

REAR VIEW MIRROR ASSY (LEFT)

1WD-F6280-10-00

—
Out of stock

24

REAR VIEW MIRROR ASSY (RIGHT)

1WD-F6290-10-00

—
Out of stock

25

PLATE, RUBBER 1

1WD-F8483-00-00

—
Out of stock

26

PLATE, RUBBER 2

1WD-F8484-00-00

—
Out of stock

27

PLATE, RUBBER 3

1WD-F8485-00-00

—
Out of stock

28

BOLT,SOCKET

91317-06025-00

—
Out of stock

29

COLLAR

90387-068C2-00

—
Out of stock

30

PLUG

90338-05010-00

—
Out of stock

31

TUNING FORK MARK

1PA-F836B-01-00

—
Out of stock

32

LABEL, NOTICE WINDSHIELD 1

1WD-F815K-10-00

—
Out of stock
