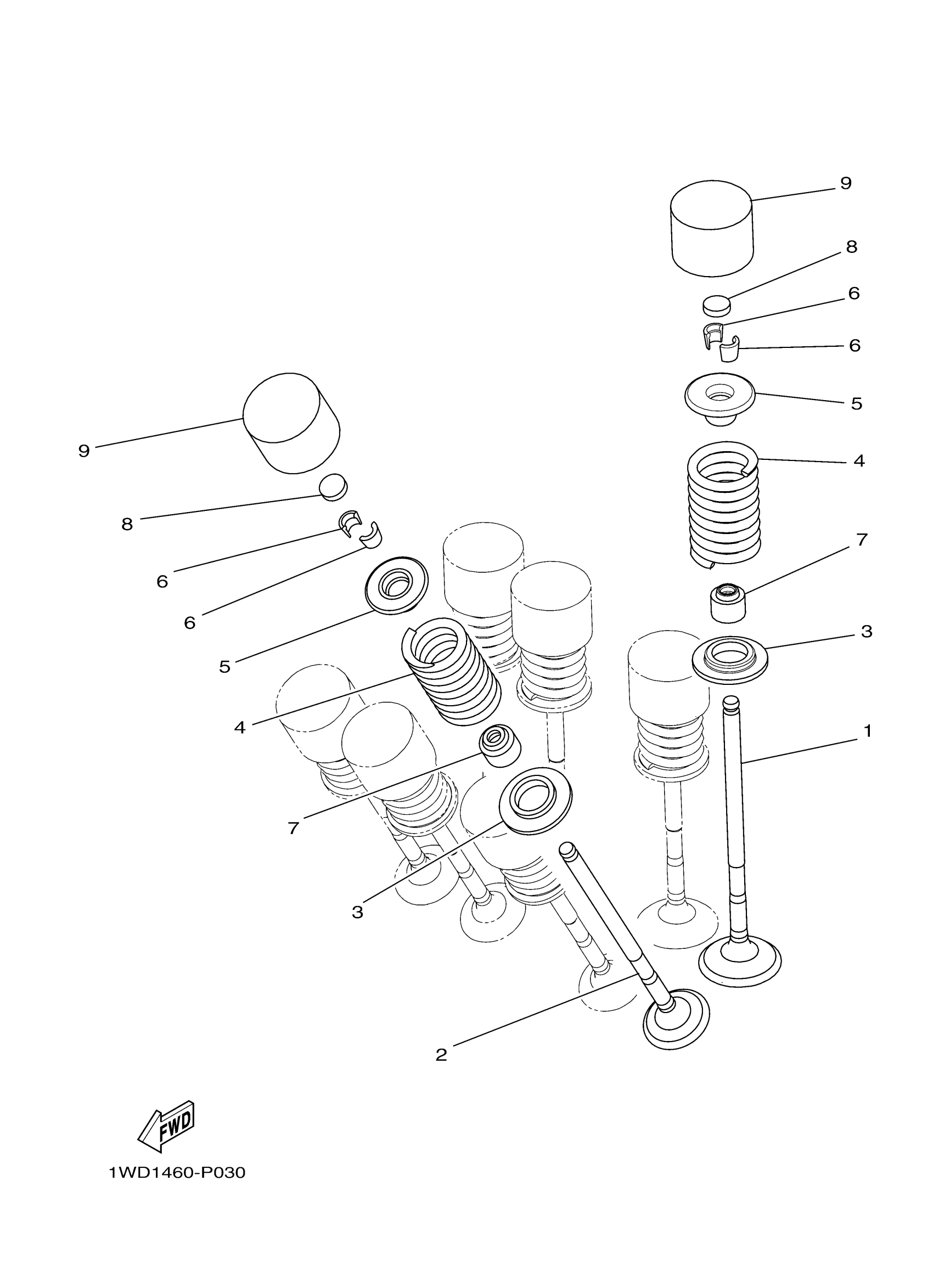

Yamaha YZFR3AHW (R3ABS) BY910 2017 VALVE Diagram

#

Description
Price

1

VALVE, INTAKE

2MS-E2111-00-00

$12.96

2

VALVE, EXHAUST

2MS-E2121-00-00

$25.18

3

SEAT, VALVE SPRING 2

2MS-E2126-00-00

$1.90

4

SPRING, VALVE INNER

BR5-E2113-00-00

$20.11

5

RETAINER, VALVE SPRING

2MS-E2117-00-00

$3.67

6

COTTER, VALVE

1WG-12118-00-00

$5.50

7

SEAL, VALVE STEM

1PA-E2119-00-00

$0.87

8

PAD, ADJUSTING 2 (1.50)

1HX-12168-F0-00

$17.03

8

PAD, ADJUSTING 2 (1.55)

1HX-12168-H1-00

$11.45

8

PAD, ADJUSTING 2 (1.60)

1HX-12168-K1-00

$18.15

8

PAD, ADJUSTING 2 (1.65)

1HX-12168-M1-00

$25.45

8

PAD, ADJUSTING 2 (1.70)

1HX-12168-R1-00

$18.15

8

PAD, ADJUSTING 2 (1.75)

1HX-12168-U1-00

$15.64

8

PAD, ADJUSTING 2 (1.80)

1HX-12168-W1-00

$16.29

8

PAD, ADJUSTING 2 (1.85)

1HX-12168-Y1-00

$18.23

8

PAD, ADJUSTING 2 (1.90)

1HX-12169-11-00

Unavailable

8

PAD, ADJUSTING 2 (1.95)

1HX-12169-31-00

Unavailable

8

PAD, ADJUSTING 2 (2.00)

1HX-12169-50-00

Unavailable

8

PAD, ADJUSTING 2 (2.05)

1HX-12169-70-00

Unavailable

8

PAD, ADJUSTING 2 (2.10)

1HX-12169-90-00

Unavailable

8

PAD, ADJUSTING 2 (2.15)

1HX-12169-E0-00

Unavailable

8

PAD, ADJUSTING 2 (2.20)

1HX-12169-G0-00

Unavailable

8

PAD, ADJUSTING 2 (2.25)

1HX-12169-J0-00

Unavailable

8

PAD, ADJUSTING 2 (2.30)

1HX-12169-L0-00

Unavailable

8

PAD, ADJUSTING 2 (2.35)

1HX-12169-N0-00

Unavailable

8

PAD, ADJUSTING 2 (2.40)

1HX-12169-T0-00

Unavailable

9

LIFTER, VALVE

2MS-E2153-11-00

Unavailable
