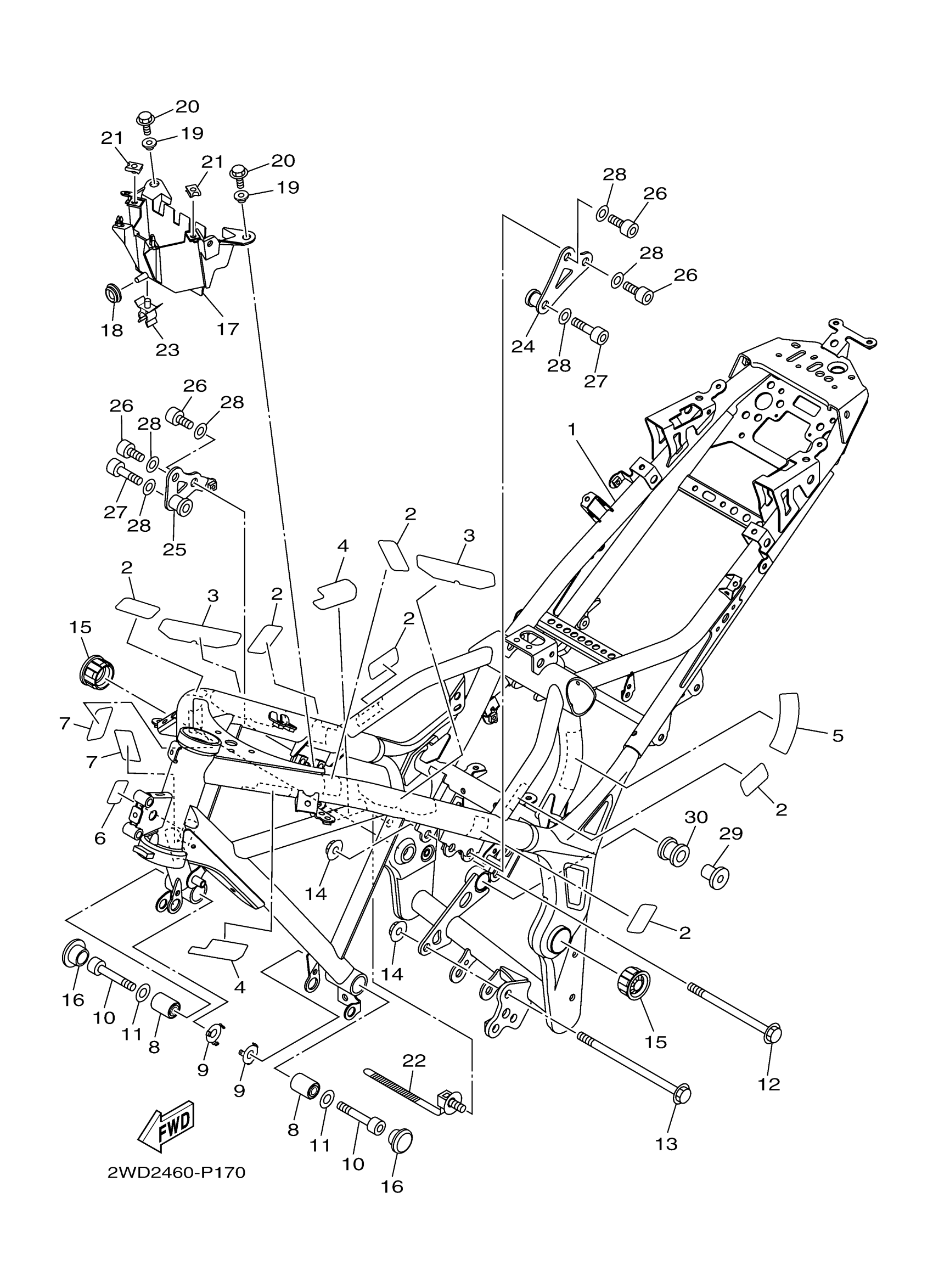

Yamaha YZFR3AHW (R3ABS) BY910 2017 FRAME Diagram

#

Description
Price

1

FRAME COMP.

1WD-F1110-13-00

$534.72

2

DAMPER

1WD-F113B-00-00

$0.88

3

DAMPER 2

1WD-F112C-00-00

$3.28

4

PROTECTOR

1WD-F117G-00-00

$4.00

5

PROTECTOR

1WD-F1652-00-00

$3.46

6

PROTECTOR

1WD-F193A-00-00

$2.09

7

SEAL

5D9-F414G-00-00

$1.67

8

DAMPER

90388-10816-00

$21.42

9

PLATE 1

1WD-F191B-00-00

Unavailable

10

BOLT, SOCKET

91317-10060-00

$6.12

11

958-69527-00 WASHER, PLAIN

92990-10200-00

$2.80

12

BOLT, FLANGE

90105-10889-00

$4.54

13

BOLT, FLANGE

90105-10891-00

$5.25

14

NUT (1S72,5C81)

90179-10805-00

Unavailable

15

COVER

1WD-F135F-00-00

$2.40

16

PLUG

90338-23801-00

Unavailable

17

BOX

1WD-F1171-00-00

$6.39

18

GROMMET

90480-13014-00

Unavailable

19

COLLAR

90387-07819-00

Unavailable

20

BOLT, FLANGE

95022-06014-00

Unavailable

21

. NUT, SPRING

90183-06818-00

$0.73

22

CLAMP

90464-30009-00

$3.21

23

CLAMP

90464-12015-00

Unavailable

24

STAY 1

1WD-F122A-00-00

Unavailable

25

STAY 2

1WD-F122B-00-00

Unavailable

26

BOLT, SOCKET

91317-10020-00

Unavailable

27

BOLT, SOCKET

91317-10045-00

Unavailable

28

WASHER(6TA)

92907-10600-00

Unavailable

29

COLLAR

90387-08812-00

Unavailable

30

DAMPER, FOOTREST 2

4XV-27424-00-00

Unavailable
