2002 Yamaha YZFR1 CA (YZFR1PC) Frame Diagram

← All diagrams

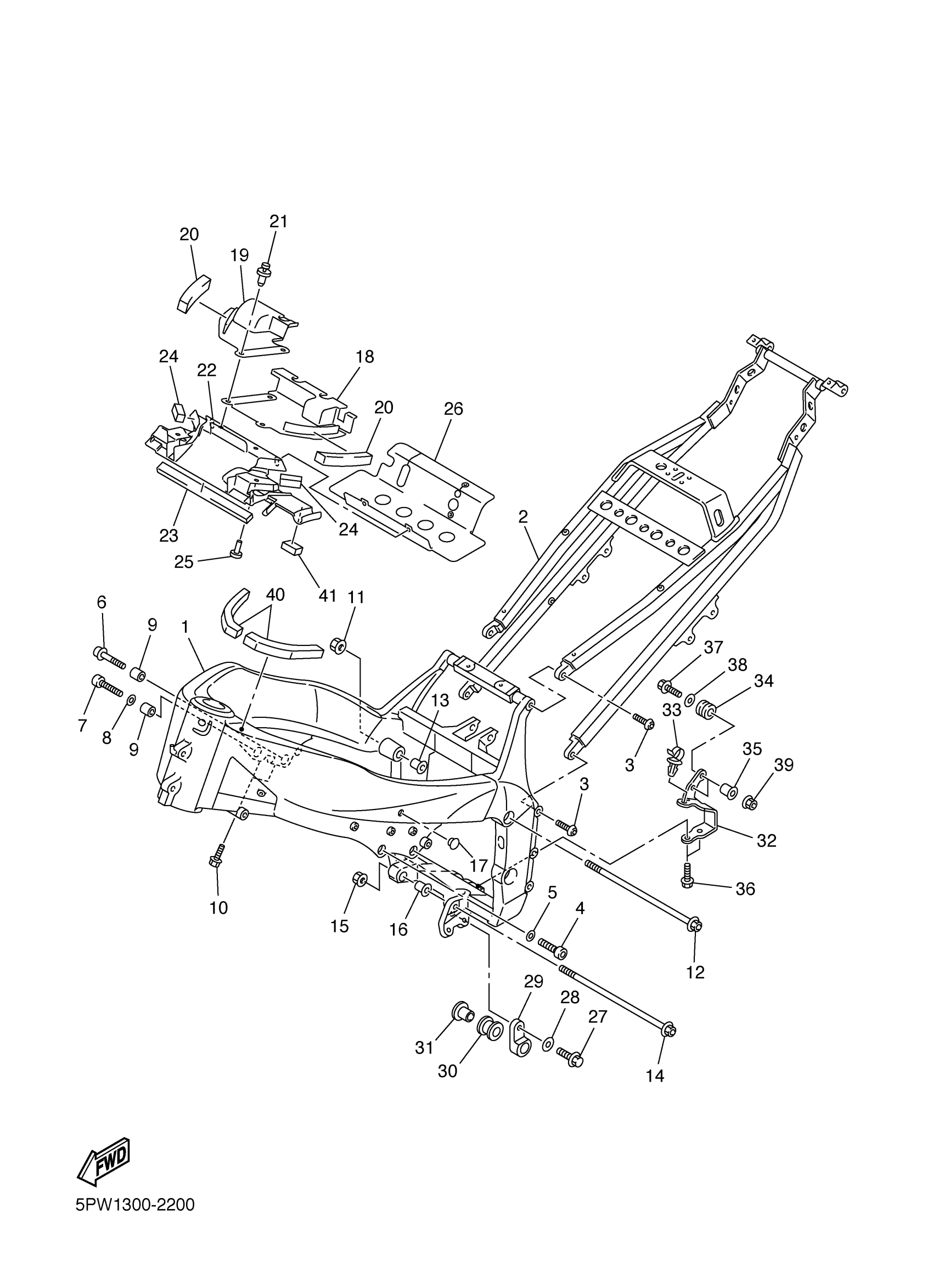

Find the part on the Frame diagram for your 2002 Yamaha YZFR1 CA (YZFR1PC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Yamaha YZFR1 CA (YZFR1PC) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

5PW-21110-00-00

1
Out of stock

2

REAR FRAME COMP.

5PW-21190-00-00

1
Out of stock

3

SCREW

90149-10016-00

—
Out of stock

4

BOLT,SOCKET

91314-10040-00

1
Out of stock

5

WASHER, PLATE

90201-10020-00

1
Out of stock

6

BOLT,SOCKET

91314-10050-00

1
Out of stock

7

BOLT,SOCKET

91314-10040-00

1
Out of stock

8

WASHER, PLATE

90201-10020-00

1
Out of stock

9

COLLAR

90387-12012-00

1
Out of stock

10

BOLT, FLANGE(3EF)

95024-08035-00

1
Out of stock

11

NUT

90179-10696-00

—
Out of stock

12

BOLT

90109-104G5-00

1
Out of stock

13

BOLT, ENGINE ADJUSTING

4C8-21495-00-00

—
Out of stock

14

BOLT, HEXAGON SOCKET HEAD

90110-10005-00

—
Out of stock

15

NUT

90179-10696-00

—
Out of stock

16

BOLT, ENGINE ADJUSTING

4C8-21495-00-00

—
Out of stock

17

PLUG

90338-15004-00

—
Out of stock

18

COVER 2

5PW-2117M-00-00

1
Out of stock

19

COVER 3

5PW-2117N-00-00

1
Out of stock

20

DAMPER

5PW-21852-00-00

1
Out of stock

21

RIVET(4JH)

90269-07076-00

—
Out of stock

22

GUIDE, AIR

5PW-2137Y-00-00

1
Out of stock

23

DAMPER 2

5PW-21486-00-00

—
Out of stock

24

DAMPER

5PW-21488-00-00

1
Out of stock

25

RIVET

90269-08002-00

—
Out of stock

26

COVER

5PW-2117F-00-00

1
Out of stock

27

BOLT, FLANGE(4LN)

95817-08025-00

—
Out of stock

28

WASHER (853)

90201-08326-00

—
Out of stock

29

STAY, MUFFLER 2

5PW-21446-00-00

1
Out of stock

30

DAMPER, FOOTREST 2

4XV-27424-00-00

—
Out of stock

31

COLLAR

90387-08005-00

—
Out of stock

32

BRACKET 7

5PW-2116J-00-00

1
Out of stock

33

CLAMP

90464-09001-00

1
Out of stock

34

GROMMET(4TX)

90480-14604-00

—
Out of stock

35

COLLAR

90387-06M60-00

1
Out of stock

36

BOLT, FLANGE

95817-06014-00

—
Out of stock

37

BOLT, SMALL FLANGE

95027-06025-00

—
Out of stock

38

WASHER, PLATE

90201-06095-00

—
Out of stock

39

NUT, FLANGE(4MV)

95707-06500-00

—
Out of stock

40

DAMPER, PLATE 2

3YF-2414J-10-00

—
Out of stock

41

CAP

1WG-2143A-00-00

—
Out of stock
