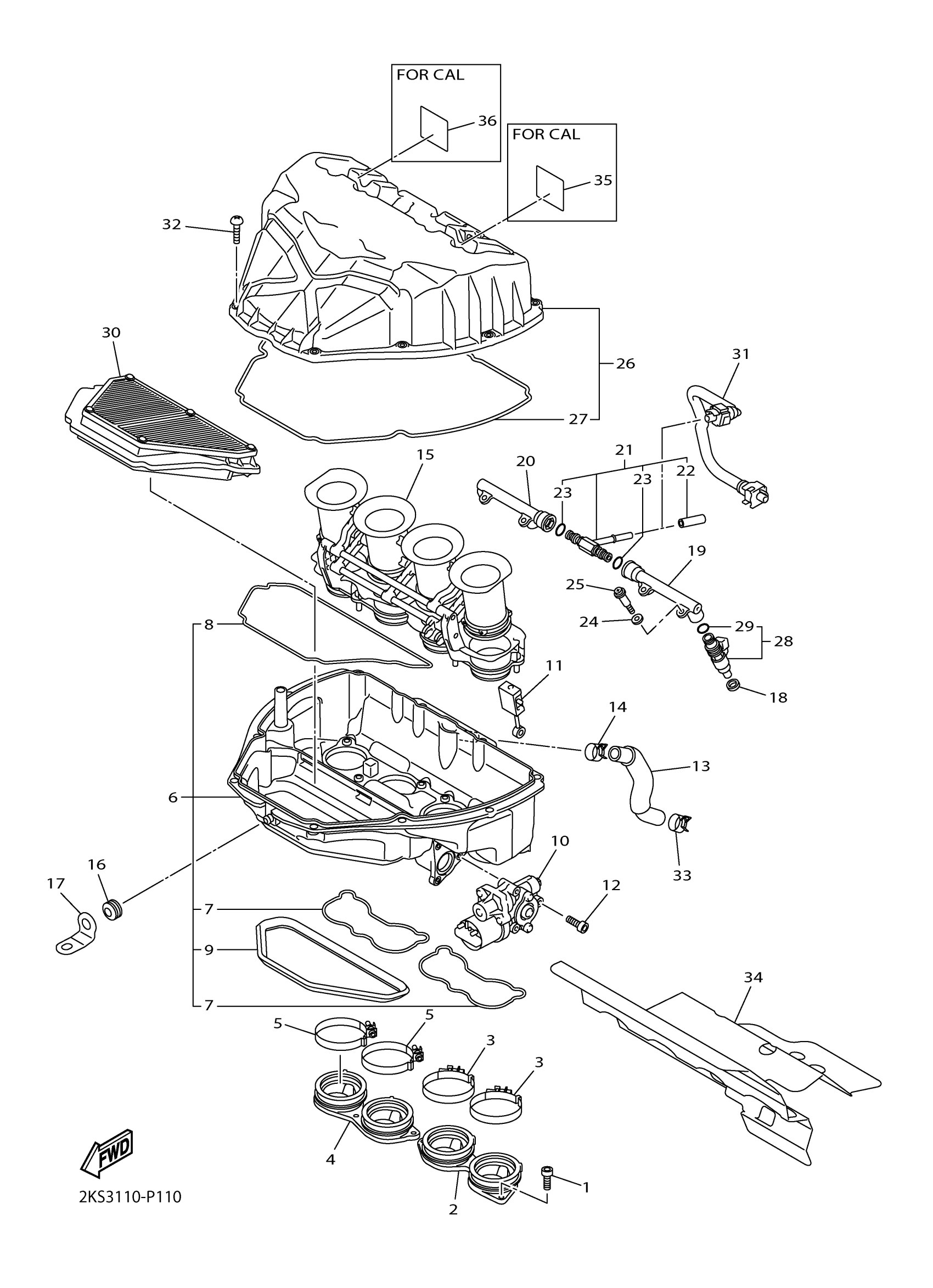

Find the part on the Intake diagram for your 2017 Yamaha YZFR1M CA (YZFR1MHC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Yamaha YZFR1M CA (YZFR1MHC) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT (33M)

91312-06014-00

1

$4.74

In stock

2

JOINT, INTAKE 1

2CR-13635-00-00

—

$50.95

In stock

3

HOSE CLAMP ASSY

90450-60004-00

1

$14.64

In stock

4

JOINT, INTAKE 2

2CR-13636-00-00

—

$50.95

In stock

5

HOSE CLAMP ASSY

90450-60004-00

1

$14.64

In stock

6

CASE, AIR CLEANER

2CR-14411-00-00

—
Out of stock

7

SEAL

2CR-14457-00-00

1

$6.15

In stock

8

SEAL

2CR-14462-00-00

1

$10.54

In stock

9

DAMPER 1

2CR-14425-00-00

—

$3.95

In stock

10

GEARED MOTOR COMP. 2

14B-85870-01-00

—

$360.52

In stock

11

SHAFT ASSY

2CR-14490-00-00

—

$35.17

In stock

12

BOLT, HEXAGON SOCKET HEAD

90110-05045-00

—

$2.32

In stock

13

PIPE, BREATHER 2

2CR-15393-00-00

1

$13.05

In stock

14

CLIP

90467-15001-00

1

$5.72

In stock

15

JOINT ASSY

2CR-1440B-00-00

—
Out of stock

16

GROMMET

90480-12010-00

—

$5.22

In stock

17

STAY 1

2CR-14498-00-00

—

$5.98

In stock

18

GASKET, MANIFOLD

8FP-13556-00-00

—

$12.27

In stock

19

PIPE, INLET

2CR-1393A-00-00

—

$63.83

In stock

20

PIPE, INLET 2

2CR-1393B-00-00

—

$71.49

In stock

21

JOINT, AIR FILTER

2CR-1440F-00-00

—

$32.78

In stock

22

CAP

5UX-14118-00-00

—
Out of stock

23

O-RING

39P-14147-00-00

—

$5.88

In stock

24

GASKET

363-14198-00-00

—

$9.89

In stock

25

BOLT 1

14B-13573-00-00

—

$4.82

In stock

26

CASE, AIR CLEANER

2CR-14421-00-00

—
Out of stock

27

SEAL

2CR-14452-00-00

—

$17.37

In stock

28

INJECTOR

14B-13761-10-00

—

$190.07

In stock

29

O-RING

5PS-14147-00-00

—

$10.95

In stock

30

ELEMENT, AIR CLEANER

2CR-14451-01-00

—
Out of stock

31

PIPE, FUEL 2

2CR-13972-00-00

—
Out of stock

32

SCREW, BINDING

98907-05020-00

—

$6.18

In stock

33

CLIP

90467-160A6-00

—

$2.91

In stock

34

PROTECTOR, HEAT

2CR-12682-00-00

—
Out of stock
