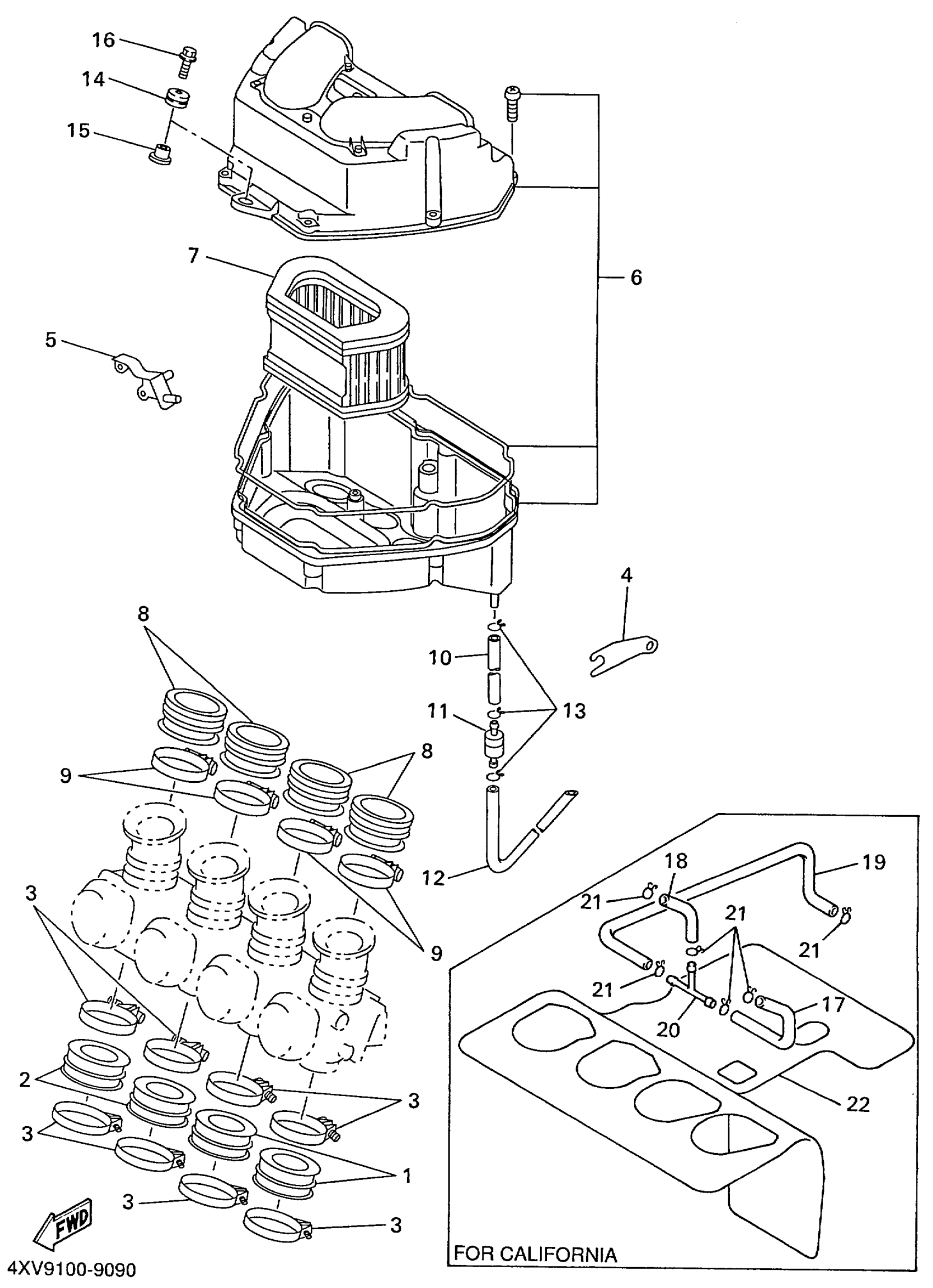

Yamaha YZFR1LC (YZFR1 CA) 4XVB 1999 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 3

4XV-13597-00-00

$23.39

2

JOINT, CARBURETOR 4

4XV-13598-00-00

$24.49

3

HOSE CLAMP ASSY

90450-57016-00

$17.31

4

STAY 2

4XV-14414-00-00

Unavailable

5

STAY

4XV-14413-00-00

Unavailable

6

AIR CLEANER CASE ASSEMBLY

4XV-14401-00-00

Unavailable

7

ELEMENT, AIR CLEANER

4XV-14451-00-00

$46.88

8

JOINT, AIR CLEANER 1

5JJ-14453-00-00

Unavailable

9

HOSE CLAMP ASSY

90450-75083-00

Unavailable

10

HOSE (L198)

90445-11293-00

$6.69

11

FILTER ASSY

4X7-2149Y-00-00

$16.07

12

HOSE (L800)

90445-11083-00

$14.38

13

CLIP

90467-100A1-00

$5.96

14

GROMMET(3AA)

90480-12497-00

$2.64

15

COLLAR

90387-06159-00

$5.96

16

BOLT, FLANGE

95817-06020-00

Unavailable

17

PIPE

4XV-14465-00-00

Unavailable

18

PIPE

4XV-14466-00-00

Unavailable

19

PIPE

4XV-1443J-00-00

Unavailable

20

WAY (70R)

90413-08012-00

Unavailable

21

CLIP

90467-100A1-00

$5.96

22

PROTECTOR, HEAT

4XV-12682-00-00

Unavailable
