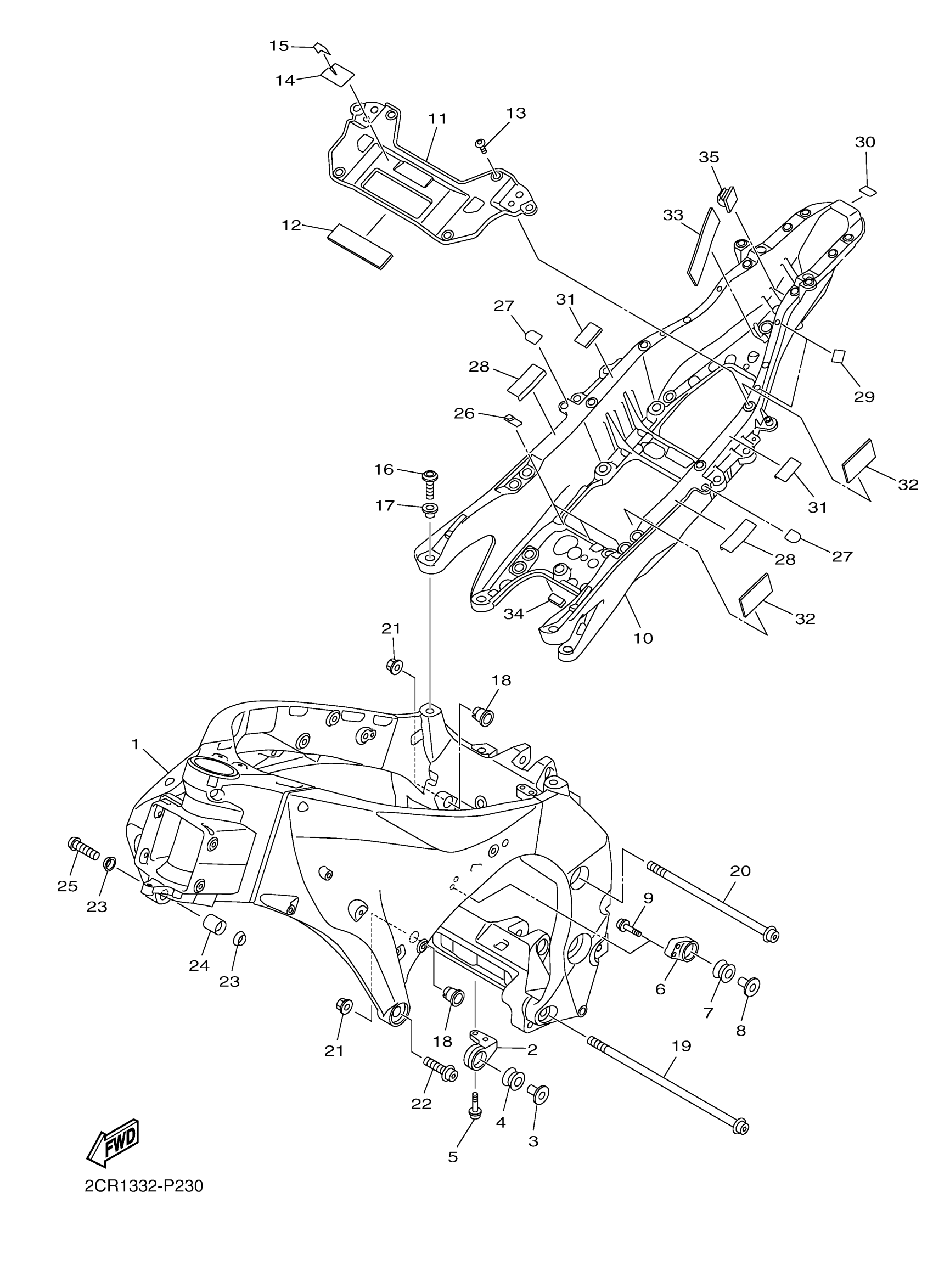

Find the part on the Frame diagram for your 2016 Yamaha YZFR1 (YZFR1GL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Yamaha YZFR1 (YZFR1GL) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

2CR-21110-00-00

1
Out of stock

2

BRACKET, MUFFLER 1

2CR-21435-00-00

1
Out of stock

3

COLLAR

90387-08021-00

1
Out of stock

4

DAMPER, MUFFLER

5VY-14747-00-00

1
Out of stock

5

BOLT, HEXAGON SOCKET HEAD

90110-06248-00

—
Out of stock

6

BRKT., MUFF. 2

2CR-21436-00-00

1
Out of stock

7

DAMPER, MUFFLER

5VY-14747-00-00

1
Out of stock

8

COLLAR

90387-08021-00

1
Out of stock

9

BOLT(3MA)

91312-06016-00

1
Out of stock

10

REAR FRAME COMP.

2CR-21190-00-00

—
Out of stock

11

REINF., FRAME RR.

2CR-21214-00-00

—
Out of stock

12

DAMPER, PLATE

90520-06007-00

1
Out of stock

13

BOLT,HEX. SOCKET B

90111-06155-00

1
Out of stock

14

SEAL, 5

2CR-22877-00-00

1
Out of stock

15

SEAL 6

2CR-22878-00-00

1
Out of stock

16

SCREW

90149-10003-00

—
Out of stock

17

COLLAR

2CR-21116-00-00

—
Out of stock

18

BOLT, ENGINE ADJUSTING

5YU-21495-00-00

—
Out of stock

19

BOLT, HEXAGON SOCK

90110-12010-00

—
Out of stock

20

BOLT, HEXAGON SOCK

90110-12008-00

—
Out of stock

21

Nut

90179-12004-00

—
Out of stock

22

BOLT, HEXAGON SOCK

90110-12007-00

—
Out of stock

23

BOSS, ENGINE MOUNT

14B-21414-00-00

—
Out of stock

24

BOSS, ENGINE MOUNT

14B-21424-00-00

—
Out of stock

25

BOLT,HEX. SOCKET B

90111-12003-00

—
Out of stock

26

DAMPER 1

7TG-2214F-00-00

—
Out of stock

27

SEAL 1

2CR-22873-00-00

—
Out of stock

28

SEAL 2

2CR-22874-00-00

—
Out of stock

29

SEAL 3

2CR-22875-01-00

—
Out of stock

30

SEAL

5SL-21268-00-00

—
Out of stock

31

SEAL 4

2CR-22876-00-00

—
Out of stock

32

PATCH 5

5JW-2164K-00-00

—
Out of stock

33

SEAL

5TH-21268-01-00

—
Out of stock

34

DAMPER 1

13S-28415-00-00

—
Out of stock

35

CLAMP

90464-13004-00

—
Out of stock
