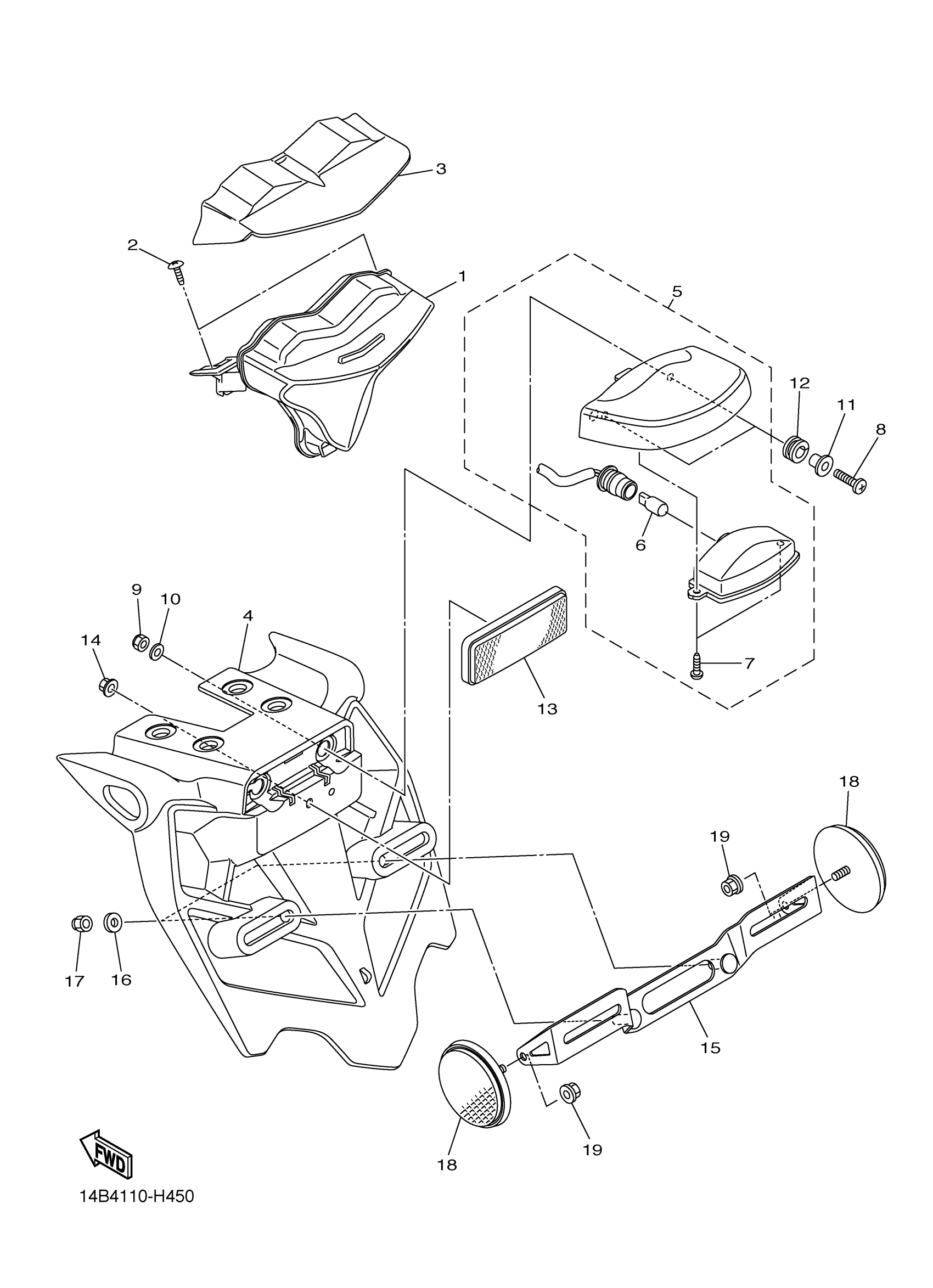

Yamaha YZFR1BW (YZFR1) 1KBE 2012 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSY

14B-84710-10-00

$198.00

2

SCREW, TRUSS TAP.

97707-50014-00

$5.76

3

COVER, TAILLIGHT

14B-84516-00-00

$21.00

4

GUARD, MUD

14B-21629-01-00

Unavailable

5

LICENCE LIGHT UNIT ASSY

5VX-84745-01-00

$81.31

6

BULB

4SV-84347-00-00

$5.99

7

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

8

SCREW, BIND

98902-05020-00

$1.34

9

NUT, U

95617-05100-00

$6.22

10

WASHER, PLAIN LARGE

92907-05200-00

$3.82

11

COLLAR

90387-05003-00

$4.42

12

GROMMET

90480-11009-00

$0.77

13

REAR REFLECTOR ASSY

3Y6-85130-02-00

$21.21

14

NUT, S/L FLANGE

95607-05200-00

$6.39

15

BRACKET, LICENSE

14B-84751-00-00

Unavailable

16

WASHER, PLAIN (646)

92990-06600-00

Unavailable

17

NUT, SELF-LOCKING

95617-06100-00

Unavailable

18

REFLECTOR, REAR 1

449-85131-02-00

Unavailable

19

NUT, FLANGE

95702-05500-00

Unavailable
